Search › Model › S21
S21

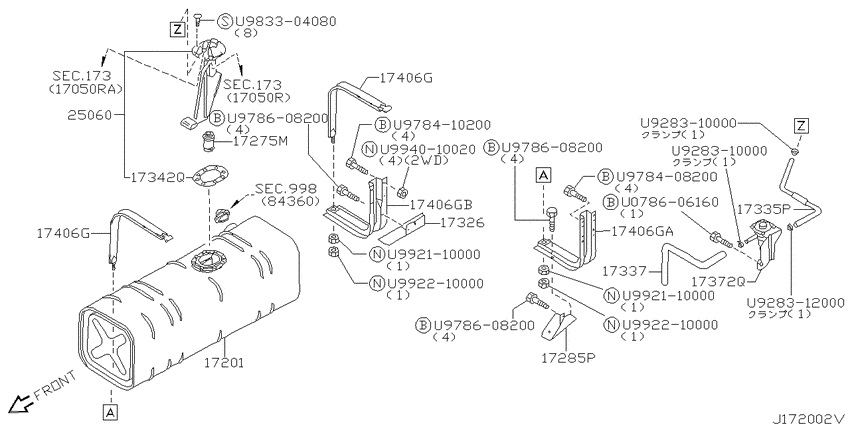

Fuel tank (2007-08-01 ~ ; T.DIE20) 8
| # | OEM | Part name |
|---|---|---|
| 17201 | 17201-HC631 | Tank Assy-Fuel |
| 17275 | 17275-HC300 | Filter Assy-Fuel Tank |
| 17285 | 17285-HA400 | Protector-Fuel Tank |
| 17326 | 17326-HA400 | Clamp-Hose |
| 17337 | 17337-HA012 | Hose-Breather |
| 17342 | 17342-HC400 | Packing-Fuel Gauge |
| 17372 | 17372-HA400 | Valve Assy-Vacuum Cut |
| 17406 | 17406-HA401 | Band Assy-Fuel Tank Mounting |
| OEM | Part name | Category |
|---|---|---|
| 17201-HC631 | Tank Assy-Fuel | Fuel tank (2007-08-01 ~ ; T.DIE20) |
| 17275-HC300 | Filter Assy-Fuel Tank | Fuel tank (2007-08-01 ~ ; T.DIE20) |
| 17285-HA400 | Protector-Fuel Tank | Fuel tank (2007-08-01 ~ ; T.DIE20) |
| 17326-HA400 | Clamp-Hose | Fuel tank (2007-08-01 ~ ; T.DIE20) |
| 17337-HA012 | Hose-Breather | Fuel tank (2007-08-01 ~ ; T.DIE20) |
| 17342-HC400 | Packing-Fuel Gauge | Fuel tank (2007-08-01 ~ ; T.DIE20) |
| 17372-HA400 | Valve Assy-Vacuum Cut | Fuel tank (2007-08-01 ~ ; T.DIE20) |
| 17406-HA401 | Band Assy-Fuel Tank Mounting | Fuel tank (2007-08-01 ~ ; T.DIE20) |
