S201U

Toyota PIXIS · 2011 · 2,066 parts · 137 categories

← Back to categories

2,066 items

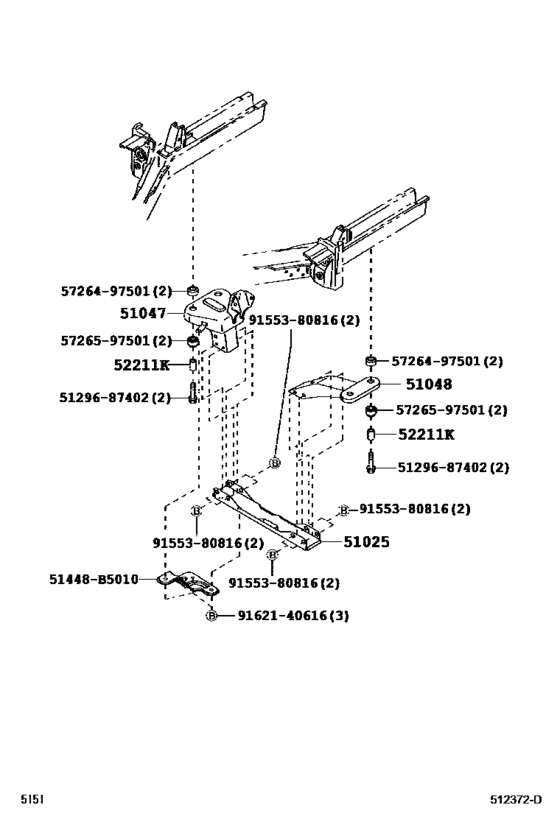

Frame ([12.2011 - ] (1112- )) 14

#	OEM	Part name
51025	51204-97502	Member Sub-Assy, Engine Front Mounting
51025	51204-B5030	Member Sub-Assy, Engine Front Mounting
51047	51047-B5020	Bracket Sub-Assy, Engine Mounting & Upper Arm, Rh
51047	51047-B5022	Bracket Sub-Assy, Engine Mounting & Upper Arm, Rh
51047	51047-B5021	Bracket Sub-Assy, Engine Mounting & Upper Arm, Rh
51048	51048-B5020	Bracket Sub-Assy, Engine Mounting & Upper Arm, Lh
51048	51048-B5021	Bracket Sub-Assy, Engine Mounting & Upper Arm, Lh
51448	51448-B5010	Protector, Oil Pan
52211	12341-87501	Spacer, Engine Mounting
5129687402	51296-87402	Bolt, Front Suspension Member Mounting
5726497501	57264-97501	New Genuine Part
5726597501	57265-97501	New Genuine Part
9155380816	91553-80816	Bolt (For Transmission Control Cable Bracket)
9162140616	91621-40616	Step Cover Bolt

OEM	Part name	Category
12341-87501	Spacer, Engine Mounting	Frame ([12.2011 - ] (1112- ))
51047-B5020	Bracket Sub-Assy, Engine Mounting & Upper Arm, Rh	Frame ([12.2011 - ] (1112- ))
51047-B5021	Bracket Sub-Assy, Engine Mounting & Upper Arm, Rh	Frame ([12.2011 - ] (1112- ))
51047-B5022	Bracket Sub-Assy, Engine Mounting & Upper Arm, Rh	Frame ([12.2011 - ] (1112- ))
51048-B5020	Bracket Sub-Assy, Engine Mounting & Upper Arm, Lh	Frame ([12.2011 - ] (1112- ))
51048-B5021	Bracket Sub-Assy, Engine Mounting & Upper Arm, Lh	Frame ([12.2011 - ] (1112- ))
51204-97502	Member Sub-Assy, Engine Front Mounting	Frame ([12.2011 - ] (1112- ))
51204-B5030	Member Sub-Assy, Engine Front Mounting	Frame ([12.2011 - ] (1112- ))
51296-87402	Bolt, Front Suspension Member Mounting	Frame ([12.2011 - ] (1112- ))
51448-B5010	Protector, Oil Pan	Frame ([12.2011 - ] (1112- ))
57264-97501	New Genuine Part	Frame ([12.2011 - ] (1112- ))
57265-97501	New Genuine Part	Frame ([12.2011 - ] (1112- ))
91553-80816	Bolt (For Transmission Control Cable Bracket)	Frame ([12.2011 - ] (1112- ))
91621-40616	Step Cover Bolt	Frame ([12.2011 - ] (1112- ))
