Search › Model › S201U

S201U

Toyota PIXIS · 2011 · 2,066 parts · 137 categories

2,066 items

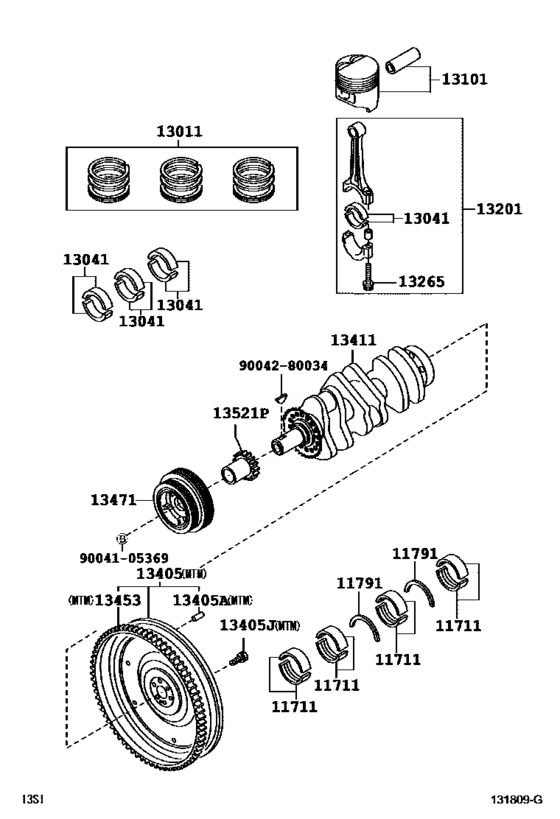

Crankshaft & Piston ([12.2011 - ] (1112- )) 24

#	OEM	Part name
11711	11701-B2011-02	Bearing, Crankshaft
11711	11701-B2011-03	Bearing, Crankshaft
11711	11701-B2011-04	Bearing, Crankshaft
11711	11701-B2011-05	Bearing, Crankshaft
11791	11791-B2010	Washer, Crankshaft Thrust, Upper
13011	13011-B2041	Ring Set, Piston
13011	13011-B2043	Ring Set, Piston
13041	13041-B2010-01	Bearing, Connecting Rod
13041	13041-B2010-02	Bearing, Connecting Rod
13041	13041-B2010-03	Bearing, Connecting Rod
13101	13101-B2090	Piston Sub-Assy, W/pin
13101	13101-B2092	Piston Sub-Assy, W/pin
13101	13101-B2091	Piston Sub-Assy, W/pin
13201	13201-B9060	Rod Sub-Assy, Connecting
13265	13265-B9020	Bolt, Connecting Rod
13405	13405-B2040	Flywheel Sub-Assy
13405	90042-50152	Pin, Straight(For Flywheel)
13405	90048-01037	Bolt(For Flywheel)
13411	13401-B2010	Crankshaft
13453	13453-B2050	Gear, Flywheel Ring
13471	13470-B2020	Pulley, Crankshaft
13521	13521-B2010	Pulley, Crankshaft Timing
9004105369	90041-05369	Bolt(For Crankshaft Pulley Set)
9004280034	90042-80034	Pin, Straight(For Crankshaft)

OEM	Part name	Category
11701-B2011-02	Bearing, Crankshaft	Crankshaft & Piston ([12.2011 - ] (1112- ))
11701-B2011-03	Bearing, Crankshaft	Crankshaft & Piston ([12.2011 - ] (1112- ))
11701-B2011-04	Bearing, Crankshaft	Crankshaft & Piston ([12.2011 - ] (1112- ))
11701-B2011-05	Bearing, Crankshaft	Crankshaft & Piston ([12.2011 - ] (1112- ))
11791-B2010	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([12.2011 - ] (1112- ))
13011-B2041	Ring Set, Piston	Crankshaft & Piston ([12.2011 - ] (1112- ))
13011-B2043	Ring Set, Piston	Crankshaft & Piston ([12.2011 - ] (1112- ))
13041-B2010-01	Bearing, Connecting Rod	Crankshaft & Piston ([12.2011 - ] (1112- ))
13041-B2010-02	Bearing, Connecting Rod	Crankshaft & Piston ([12.2011 - ] (1112- ))
13041-B2010-03	Bearing, Connecting Rod	Crankshaft & Piston ([12.2011 - ] (1112- ))
13101-B2090	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.2011 - ] (1112- ))
13101-B2091	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.2011 - ] (1112- ))
13101-B2092	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.2011 - ] (1112- ))
13201-B9060	Rod Sub-Assy, Connecting	Crankshaft & Piston ([12.2011 - ] (1112- ))
13265-B9020	Bolt, Connecting Rod	Crankshaft & Piston ([12.2011 - ] (1112- ))
13401-B2010	Crankshaft	Crankshaft & Piston ([12.2011 - ] (1112- ))
13405-B2040	Flywheel Sub-Assy	Crankshaft & Piston ([12.2011 - ] (1112- ))
13453-B2050	Gear, Flywheel Ring	Crankshaft & Piston ([12.2011 - ] (1112- ))
13470-B2020	Pulley, Crankshaft	Crankshaft & Piston ([12.2011 - ] (1112- ))
13521-B2010	Pulley, Crankshaft Timing	Crankshaft & Piston ([12.2011 - ] (1112- ))
90041-05369	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([12.2011 - ] (1112- ))
90042-50152	Pin, Straight(For Flywheel)	Crankshaft & Piston ([12.2011 - ] (1112- ))
90042-80034	Pin, Straight(For Crankshaft)	Crankshaft & Piston ([12.2011 - ] (1112- ))
90048-01037	Bolt(For Flywheel)	Crankshaft & Piston ([12.2011 - ] (1112- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 137
Collected: 2026-08-04
