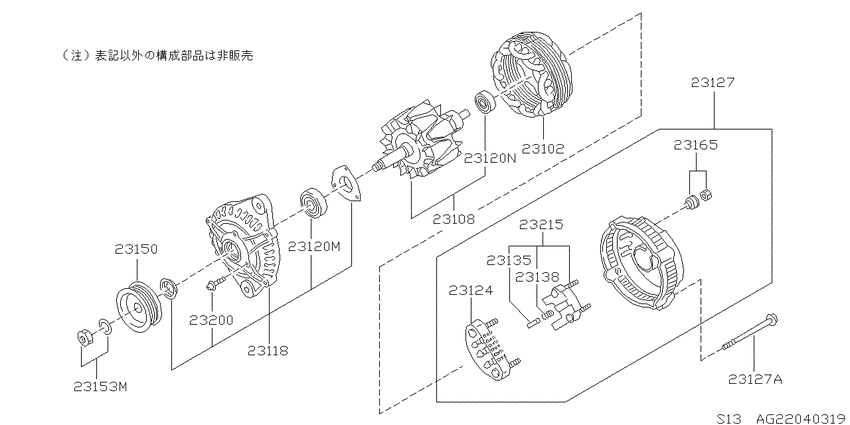

| 23102-25V10 |
Stator Assy |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23108-30R70 |
Rotor Assy |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23115-20P10 |
Screw Set |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23118-52F10 |
Cover Assy-Front |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23118-52F11 |
Cover Assy-Front |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23120-22J20 |
Bearing-Ball |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23120-30R10 |
Bearing-Ball |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23120-64J11 |
Bearing-Ball |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23124-30R10 |
Rectifier Assy |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23127-52F11 |
Cover Assy-Rear |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23131-20P10 |
Bolt-Through |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23135-59E10 |
BRUSH ASSY |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23135-64J12 |
Brush Assy |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23138-V5511 |
Spring-Brush |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23138-W1710 |
Spring-Brush |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23150-52F10 |
Pulley Assy |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23150-52F11 |
Pulley Assy |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23153-J5500 |
Plate-Terminal |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23156-52F10 |
Terminal Assy-B |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23165-52F10 |
Nut-Set |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23165-J5500 |
Nut Assy-Pulley |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23215-1E410 |
Regulator Assy-Ic |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
| 23215-52F11 |
Regulator Assy-Ic |
Alternator (1991-01-01 ~ ; 三菱; SR20D+SR20DT) |
