Search › Model › RZY281
RZY281

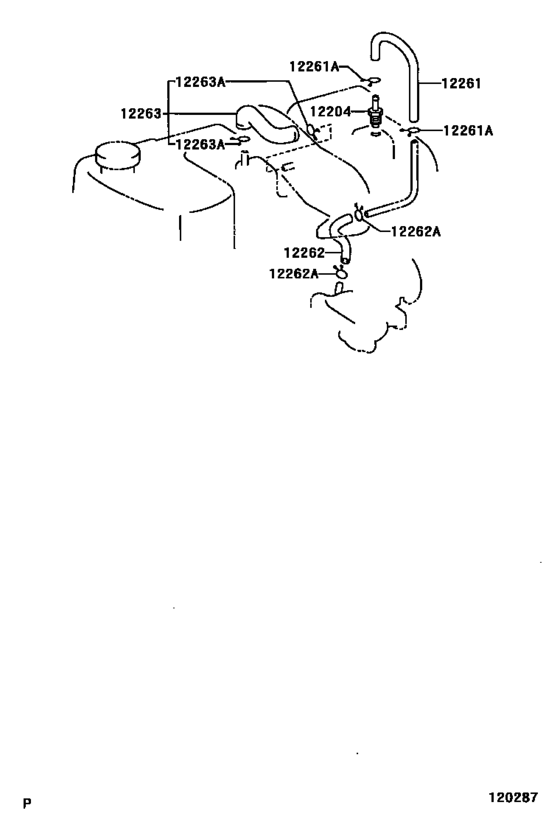

Ventilation Hose ([08.2003 - 08.2007] (0308-0708)3RZFPE) 6
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-75020 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-75051 | Hose, Ventilation |
| 12261 | 90467-14001 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90466-T0026 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-75140 | Hose, Ventilation, No.2 |
| 12263 | 12263-75050 | Hose, Ventilation, No.3 |
| OEM | Part name | Category |
|---|---|---|
| 12204-75020 | Valve Sub-Assy, Ventilation | Ventilation Hose ([08.2003 - 08.2007] (0308-0708)3RZFPE) |
| 12261-75051 | Hose, Ventilation | Ventilation Hose ([08.2003 - 08.2007] (0308-0708)3RZFPE) |
| 12262-75140 | Hose, Ventilation, No.2 | Ventilation Hose ([08.2003 - 08.2007] (0308-0708)3RZFPE) |
| 12263-75050 | Hose, Ventilation, No.3 | Ventilation Hose ([08.2003 - 08.2007] (0308-0708)3RZFPE) |
| 90466-T0026 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2003 - 08.2007] (0308-0708)3RZFPE) |
| 90467-14001 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2003 - 08.2007] (0308-0708)3RZFPE) |
