Search › Model › RZY281

RZY281

Toyota DYNA-TOYOACE · 2003 · 3,674 parts · 187 categories

3,674 items

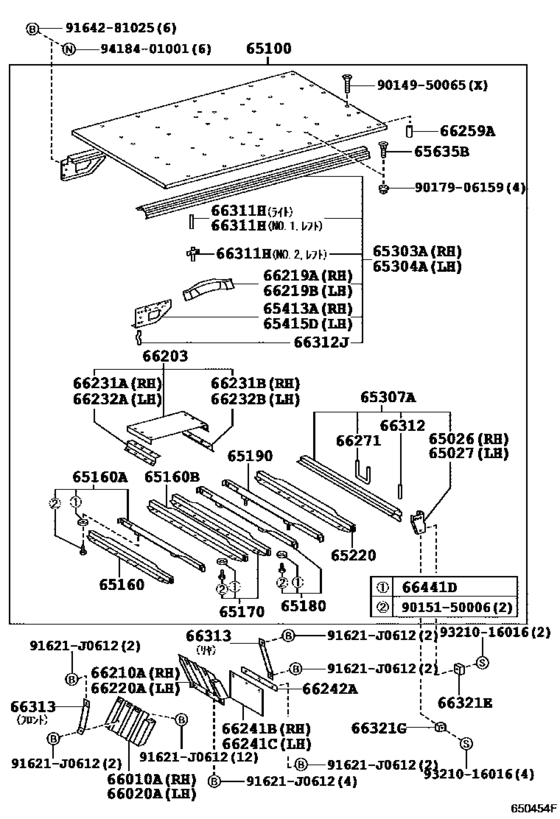

Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU) 46

#	OEM	Part name
65026	65026-37020	Bracket Sub-Assy, Gate Rubber Bumper, Rh
65027	65027-37020	Bracket Sub-Assy, Gate Rubber Bumper, Lh
65100	65100-2E570	Floor Assy, Rear Body
65160	65160-25290	Sill Assy, Cross, No.2
65160	65170-25170	Sill Assy, Cross, No.2
65160	65180-25230	Sill Assy, Cross, No.2
65170	65190-25040	Sill Assy, Cross, No.2
65220	65230-25130	Sill Assy, Cross, No.4
65303	65303-25380	Frame Sub-Assy, Floor Side, Rh
65304	65304-25330	Frame Sub-Assy, Floor Side, Lh
65307	65307-25120	Frame Sub-Assy, Floor, Rear
65413	65413-37050	Bracket Sub-Assy, Guard Frame, Rh
65415	65415-25010	Bracket, Guard Frame, Lh
65635	65635-92830	Bolt, Counter Sunk Head Square Neck
66010	66010-25110	Fender Assy, Rear No.2 Rh
66020	66020-25040	Fender Assy, Rear No.2 Lh
66203	66203-25010	Plate Sub-Assy, Rear Fender, Rh
66210	66210-25010	Fender Assy, Rear No.1 Rh
66219	66219-25010	Extension, Rear Fender
66220	66220-25010	Fender Assy, Rear No.1 Lh
66231	66231-25010	Retainer, Rear Fender, Front Rh
66231	66232-25010	Retainer, Rear Fender, Rear Rh
66241	66241-25050	Baffle, Rubber
66241	66241-25051	Baffle, Rubber
66241	66241-25070	Baffle, Rubber
66241	66241-25071	Buffle, Rubber
66242	66242-25050	Plate, Baffle Rubber
66242	66242-25060	Plate, Baffle Rubber
66259	66259-37010	Cover, Rear Body Floor, Rear
66271	66271-25010	Step, Rear Body
66311	66311-25060	Hook, Rope
66311	66311-37020	Hook, Rope
66312	66312-37020	Hook, Rope, No.2
66313	66235-25010	Support, Rear Fender
66313	66236-25020	Support, Rear Fender
66321	66321-92803	Bumper, Gate Rubber
66321	66321-92805	Bumper, Gate Rubber
66441	66441-37010	Shim, Mounting, No.1
91621	91621-J0612	BOLT W-WASHER
9014950065	90149-50065	Screw(For Floor Board)
9015150006	90151-50006	New Genuine Part
9017906159	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017906159	90080-17210	Nut, Rear Wiper Link Pivot, No.1
9164281025	91642-81025	BOLT WWASHER
9321016016	93210-16016	SCREW
9418401001	94184-01001	Nut

OEM	Part name	Category
65026-37020	Bracket Sub-Assy, Gate Rubber Bumper, Rh	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
65027-37020	Bracket Sub-Assy, Gate Rubber Bumper, Lh	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
65100-2E570	Floor Assy, Rear Body	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
65160-25290	Sill Assy, Cross, No.2	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
65170-25170	Sill Assy, Cross, No.2	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
65180-25230	Sill Assy, Cross, No.2	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
65190-25040	Sill Assy, Cross, No.2	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
65230-25130	Sill Assy, Cross, No.4	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
65303-25380	Frame Sub-Assy, Floor Side, Rh	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
65304-25330	Frame Sub-Assy, Floor Side, Lh	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
65307-25120	Frame Sub-Assy, Floor, Rear	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
65413-37050	Bracket Sub-Assy, Guard Frame, Rh	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
65415-25010	Bracket, Guard Frame, Lh	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
65635-92830	Bolt, Counter Sunk Head Square Neck	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66010-25110	Fender Assy, Rear No.2 Rh	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66020-25040	Fender Assy, Rear No.2 Lh	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66203-25010	Plate Sub-Assy, Rear Fender, Rh	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66210-25010	Fender Assy, Rear No.1 Rh	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66219-25010	Extension, Rear Fender	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66220-25010	Fender Assy, Rear No.1 Lh	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66231-25010	Retainer, Rear Fender, Front Rh	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66232-25010	Retainer, Rear Fender, Rear Rh	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66235-25010	Support, Rear Fender	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66236-25020	Support, Rear Fender	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66241-25050	Baffle, Rubber	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66241-25051	Baffle, Rubber	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66241-25070	Baffle, Rubber	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66241-25071	Buffle, Rubber	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66242-25050	Plate, Baffle Rubber	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66242-25060	Plate, Baffle Rubber	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66259-37010	Cover, Rear Body Floor, Rear	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66271-25010	Step, Rear Body	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66311-25060	Hook, Rope	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66311-37020	Hook, Rope	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66312-37020	Hook, Rope, No.2	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66321-92803	Bumper, Gate Rubber	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66321-92805	Bumper, Gate Rubber	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
66441-37010	Shim, Mounting, No.1	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
90080-17210	Nut, Rear Wiper Link Pivot, No.1	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
90149-50065	Screw(For Floor Board)	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
90151-50006	New Genuine Part	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
91621-J0612	BOLT W-WASHER	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
91642-81025	BOLT WWASHER	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
93210-16016	SCREW	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
94184-01001	Nut	Rear Body Floor & Fender ([08.2003 - ] ﾓｸｾｲﾃﾞｯｷ (0308- )RZY231,281..CBU)
