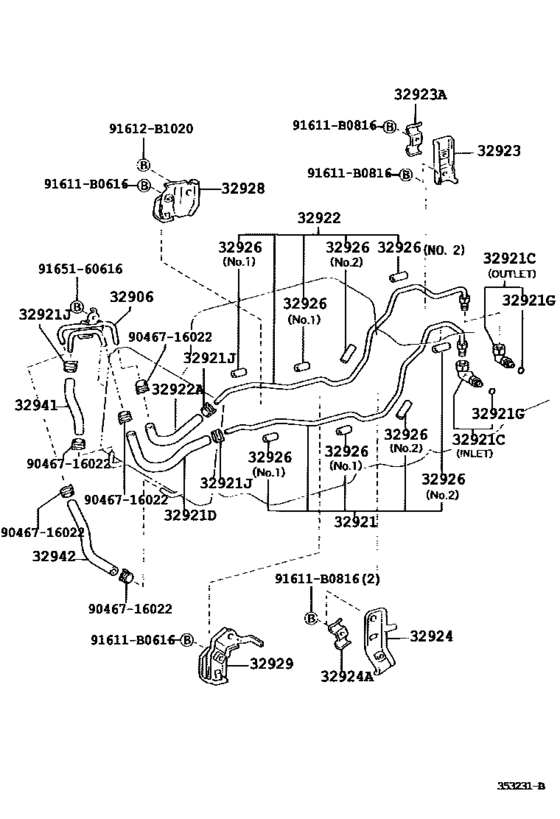

| 32907-25030 |
Tube Sub-Assy, Oil Cooler |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 32909-25060 |
Clamp, Flexible Hose, No.2 |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 32909-25070 |
Clamp, Flexible Hose, No.1 |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 32921-25100 |
Tube, Oil Cooler Inlet, No.1 |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 32922-25100 |
Tube, Oil Cooler Outlet, No.1 |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 32923-25010 |
Clamp, Automatic Transmission Oil Cooler Tube |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 32924-25020 |
Clamp, Oil Cooler Tube, No.2 |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 32926-25010 |
Cushion, Oil Cooler Tube(Atm) |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 32926-60010 |
Cushion, Oil Cooler Tube(Atm) |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 90301-11006 |
O Ring, Transaxle Case Elbow |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 90407-20004 |
Union(For Oil Cooler Tube) |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 90407-20006 |
Union(For Oil Cooler Tube) |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 90445-17115 |
Hose(For Oil Cooler Inlet) |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 90445-17124 |
Hose(For Oil Cooler Inlet) |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 90445-17151 |
Hose, Oil Cooler Tube(For Inlet) |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 90445-17155 |
Hose(For Oil Cooler Inlet) |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 90462-12076 |
Clamp, Automatic Transmission Oil Cooler Tube |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 90467-16022 |
Clip(For Water Inlet Hose) |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 91611-B0616 |
Bolt(For Transaxle Case Receiver) |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 91611-B0816 |
Bolt |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 91612-B1020 |
Bolt (For Transfer Case)Cover No.2 |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
| 91651-60616 |
BOLT |
Oil Cooler & Tube (Atm) ([08.2003 - ] A443E,A443F (0107- )LY230,280..ATM..LPG ; (0308- )RZY2 31,281..ATM) |
