RZY281

Toyota DYNA-TOYOACE · 2003 · 3,674 parts · 187 categories

← Back to categories

3,674 items

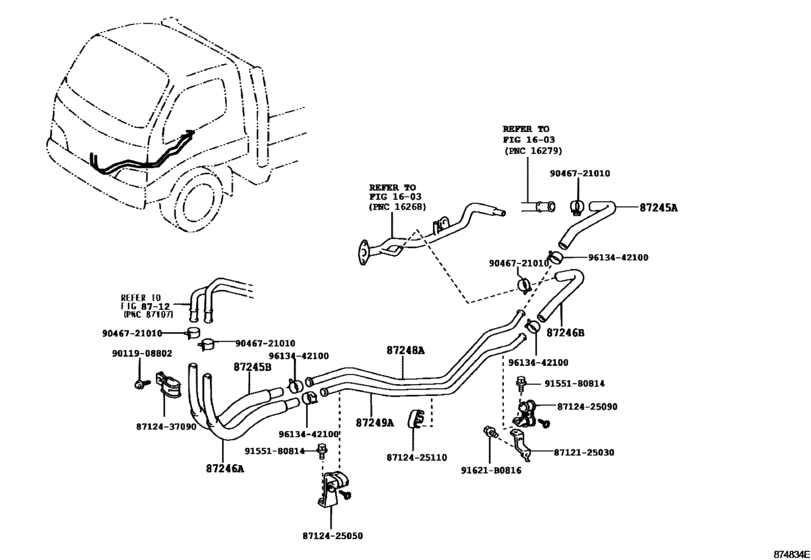

Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG) 15

#	OEM	Part name
87245	87245-25530	Hose, Heater Water, Inlet A
87245	87245-25520	Hose, Heater Water, Inlet B
87246	87245-25540	Hose, Heater Water, Outlet B
87248	87248-25050	Pipe, Heater Water Inlet, A
87249	87248-25060	Pipe, Heater Water Outlet, A
91621	91621-B0816	BOLT WWASHER
8712125030	87121-25030	Bracket, Heater, Front Rh
8712425050	87124-25050	Clamp, Heater
8712425090	87124-25090	Clamp, Heater
8712425110	87124-25110	Clamp, Heater
8712437090	87124-37090	Clamp, No.1 (For Transmission Control Cable)
9011908802	90119-08802	BOLT WWASHER
9046721010	90467-21010	Clip(For Ventilation Hose No.2)
9155180814	91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)
9613442100	96134-42100	Clip(For Water By-Pass Hose Assy)

OEM	Part name	Category
87121-25030	Bracket, Heater, Front Rh	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
87124-25050	Clamp, Heater	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
87124-25090	Clamp, Heater	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
87124-25110	Clamp, Heater	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
87124-37090	Clamp, No.1 (For Transmission Control Cable)	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
87245-25520	Hose, Heater Water, Inlet B	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
87245-25530	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
87245-25540	Hose, Heater Water, Outlet B	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
87248-25050	Pipe, Heater Water Inlet, A	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
87248-25060	Pipe, Heater Water Outlet, A	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
90119-08802	BOLT WWASHER	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
90467-21010	Clip(For Ventilation Hose No.2)	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
91621-B0816	BOLT WWASHER	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)
96134-42100	Clip(For Water By-Pass Hose Assy)	Heating & Air Conditioning - Water Piping ([07.2001 - ] ﾌﾛﾝﾄ (0107- )LY230,280,RZY231,281..LPG)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 187
Collected: 2026-08-03
