Search › Model › RZY231
RZY231

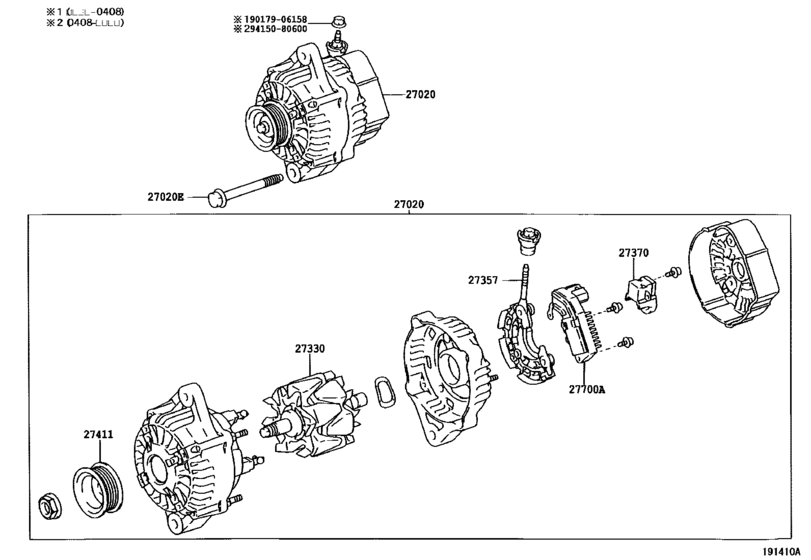

Alternator ([07.2001 - ] 12V 70,90A (0107- )1RZE,3RZFPE) 9
| # | OEM | Part name |
|---|---|---|
| 27020 | 27060-75270 | Alternator Assy |
| 27020 | 90105-10221 | Bolt, Hexagon(For Air Pump Bracket Setting) |
| 27330 | 27330-74550 | Rotor Assy, Alternator |
| 27357 | 27357-16310 | Holder, Alternator, W/rectifier |
| 27370 | 27370-75060 | Holder Assy, Alternator Brush |
| 27411 | 27411-42030 | Pulley, Alternator |
| 27700 | 27700-46050 | Regulator Assy, Generator |
| 9017906158 | 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 |
| 9415080600 | 94150-80600 | NUT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 27060-75270 | Alternator Assy | Alternator ([07.2001 - ] 12V 70,90A (0107- )1RZE,3RZFPE) |
| 27330-74550 | Rotor Assy, Alternator | Alternator ([07.2001 - ] 12V 70,90A (0107- )1RZE,3RZFPE) |
| 27357-16310 | Holder, Alternator, W/rectifier | Alternator ([07.2001 - ] 12V 70,90A (0107- )1RZE,3RZFPE) |
| 27370-75060 | Holder Assy, Alternator Brush | Alternator ([07.2001 - ] 12V 70,90A (0107- )1RZE,3RZFPE) |
| 27411-42030 | Pulley, Alternator | Alternator ([07.2001 - ] 12V 70,90A (0107- )1RZE,3RZFPE) |
| 27700-46050 | Regulator Assy, Generator | Alternator ([07.2001 - ] 12V 70,90A (0107- )1RZE,3RZFPE) |
| 90105-10221 | Bolt, Hexagon(For Air Pump Bracket Setting) | Alternator ([07.2001 - ] 12V 70,90A (0107- )1RZE,3RZFPE) |
| 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 | Alternator ([07.2001 - ] 12V 70,90A (0107- )1RZE,3RZFPE) |
| 94150-80600 | NUT FLANGE | Alternator ([07.2001 - ] 12V 70,90A (0107- )1RZE,3RZFPE) |
