Search › Model › RZU140
RZU140

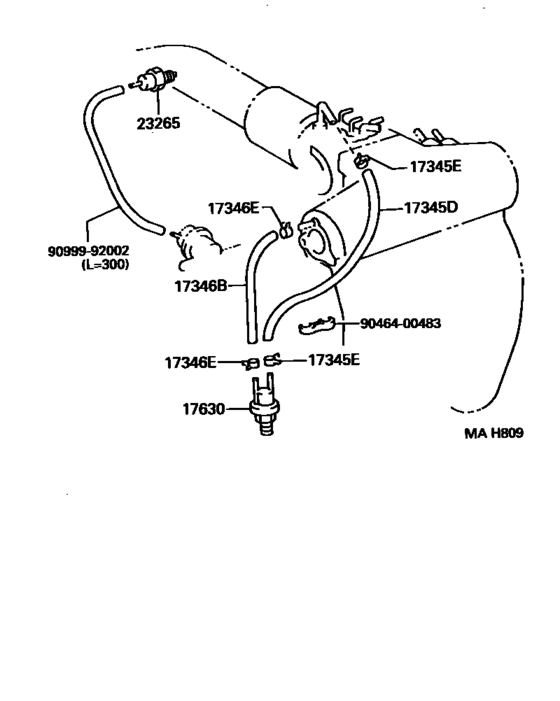

Vacuum Piping ([05.1995 - ] (9505- )3RZFE) 8
| # | OEM | Part name |
|---|---|---|
| 17345 | 17345-75021 | Hose, Air, No.5 |
| 17345 | 96132-51000 | Clip Or Clamp(For Ventilation Hose) |
| 17346 | 17346-75021 | Hose, Air, No.6 |
| 17630 | 17630-15090 | Valve Assy, Air Control |
| 17630 | 17630-70010 | Valve Assy, Air Control |
| 23265 | 90917-11022 | Filter, Gas, No.1 |
| 9046400483 | 90464-00483 | New Genuine Part |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| OEM | Part name | Category |
|---|---|---|
| 17345-75021 | Hose, Air, No.5 | Vacuum Piping ([05.1995 - ] (9505- )3RZFE) |
| 17346-75021 | Hose, Air, No.6 | Vacuum Piping ([05.1995 - ] (9505- )3RZFE) |
| 17630-15090 | Valve Assy, Air Control | Vacuum Piping ([05.1995 - ] (9505- )3RZFE) |
| 17630-70010 | Valve Assy, Air Control | Vacuum Piping ([05.1995 - ] (9505- )3RZFE) |
| 90464-00483 | New Genuine Part | Vacuum Piping ([05.1995 - ] (9505- )3RZFE) |
| 90917-11022 | Filter, Gas, No.1 | Vacuum Piping ([05.1995 - ] (9505- )3RZFE) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([05.1995 - ] (9505- )3RZFE) |
| 96132-51000 | Clip Or Clamp(For Ventilation Hose) | Vacuum Piping ([05.1995 - ] (9505- )3RZFE) |
