RZU140

Toyota DYNA-200-TOYOACE-G25 · 1997 · 3,533 parts · 195 categories
RZU140 ×

← Back to categories

3,533 items

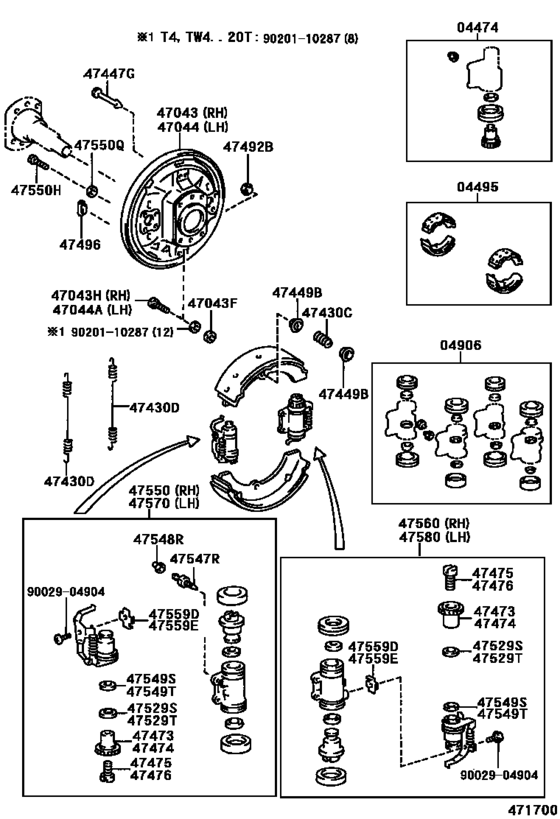

Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1999 - ] ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9905- )RZU100,140) 58
#OEMPart name
4474 04474-36080 Cylinder Kit, Front Wheel
4474 04474-36090 Cylinder Kit, Front Wheel
4474 04474-36101 Cylinder Kit, Rear Wheel
4474 04474-36111 Cylinder Kit, Rear Wheel
4495 04494-36150 Shoe Kit, Brake
4495 04496-36090 Shoe Kit, Front Brake
4906 04906-36200 Cup Kit, Front Wheel Cylinder
4906 04906-36211 Cup Kit, Rear Wheel Cylinder
47043 47043-25110 Plate Sub-Assy, Brake Backing, Rear Rh
47043 90170-10178 Nut(For Backing Plate To Rear Axle Housing Setting)
47043 94130-01002 Nut, Booster Sleeve Cylinder
47043 90114-10019 Bolt(For Backing Plate To Rear Axle Housing Setting)
47043 90114-10063 Bolt, No.1(For Rear Brake Backing Plate Rh)
47044 47044-25080 Plate Sub-Assy, Brake Backing, Rear Lh
47430 90501-20012 Spring(For Front Brake Shoe Hold Down)
47430 90507-29002 Spring, Tension(For Front Brake Shoe Return)
47447 47447-20010 Pin, Shoe Hold Down Spring(For Front Brake)
47449 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47473 47506-36010 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47473 47506-36020 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47474 47507-36010 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47474 47507-36020 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47475 47553-36050 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47475 47553-36070 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47476 47554-36050 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47476 47554-36070 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47492 47492-28010 Plug, Shoe Inspection(For Rear Brake)
47492 47492-06010 Plug, Shoe Inspection(For Rear Brake)
47496 47491-36010 Plug, Hole(For Front Brake)
47496 47491-36020 Plug, Hole(For Rear Brake)
47529 47529-36010 Seal, Front Wheel Brake Cylinder Adjust Dust
47547 47547-12010 Plug, Bleeder(For Release Cylinder)
47547 47547-27020 Plug, Bleeder(For Front Drum Brake)
47548 31478-30010 Bleeder Plug Cap
47549 47549-36010 Seat, Front Brake Automatic Adjust Nut
47549 47549-37091 Seat, Rear Brake Automatic Adjust Nut, Rh
47550 47550-36171 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-36191 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-37100 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-37101 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 90101-08081 Bolt(For Front Wheel Cylinder)
47550 90201-08002 Washer(For Front Wheel Cylinder)
47559 47559-36010 Sping, Front Automatic Adjust Lever Support
47560 47560-36171 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-36191 Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47560 47560-37071 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-37072 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47570 47570-36171 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-36191 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-37060 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-37061 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47580 47580-36171 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-36191 Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47580 47580-37061 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-37062 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
9002904904 90029-04904 New Genuine Part
9002904904 90149-50037 SCREW
9020110287 90201-10287 Washer(For Front Wheel Cylinder)
