RZU140

Toyota DYNA-200-TOYOACE-G25 · 1997 · 3,533 parts · 195 categories

3,533 items

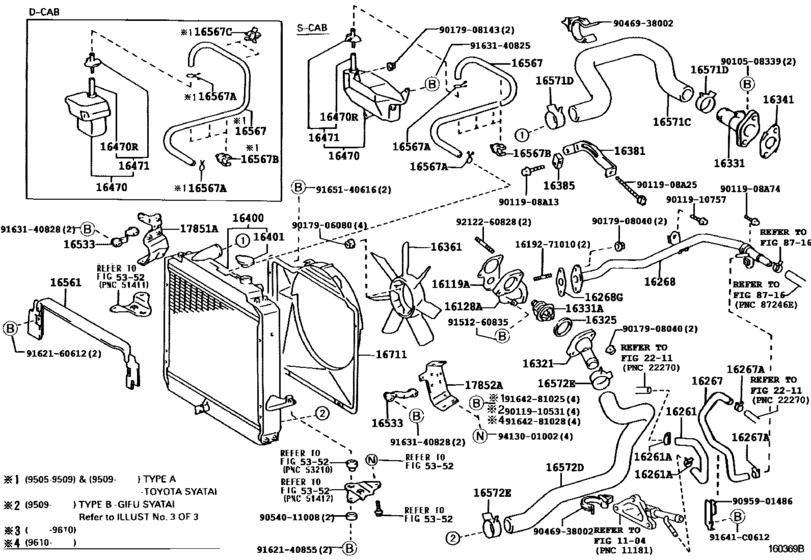

Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE) 69

#	OEM	Part name
16119	16119-75020	Gasket, Thermostat Guide
16128	16128-75020	Plate, Water Pump Thermostat Guide
16261	16261-75040	Hose, Water By-Pass
16261	96135-41300	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	96135-51300	Clamp, Hose
16267	16267-75010	Hose, Water By-Pass, No.3
16268	16268-75020	Pipe, Water By-Pass, No.1
16268	16268-75080	Pipe, Water By-Pass, No.1
16268	17175-75010	Gasket(For Water By-Pass Pipe)
16321	16321-0W010	Inlet, Water
16325	16325-76010	Gasket, Water Inlet Housing, No.1
16331	16331-0W010	Outlet, Water
16331	90916-03101	Thermostat
16331	90916-03120	Thermostat
16341	16341-75020	Gasket, Water Outlet
16361	16361-41070	Fan
16361	16361-41071	Fan
16381	16381-75040	Bar, Fan Belt Adjusting
16381	16381-75050	Bar, Fan Belt Adjusting
16385	16385-75030	Slider, Fan Belt Adjusting
16400	16400-75131	Radiator Assy
16401	16401-71010	Cap Sub-Assy(For Water Outlet)
16401	16401-54750	Radiator Cap
16470	16470-58070	Tank Assy, Radiator Reserve
16470	90445-12078	Hose(For Radiator Breather)
16471	16405-58050	Cap Sub-Assy, Reserve Tank
16533	16505-58010	Support, Radiator, Upper
16561	16561-58010	Seal, Radiator To Support, No.1
16567	16567-58020	Hose(For Radiator Reserve Tank)
16567	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16567	90469-12009	Clamp Or Clip(For Radiator Reserve Tank Hose)
16571	16571-75050	Hose, Radiator, No.1
16571	90467-37002	Clip(For Water Inlet Hose)
16571	90467-37005	Clip(For Water Inlet Hose)
16572	16572-75050	Hose, Radiator, No.2
16711	16711-75030	Shroud, Fan
17851	17851-58011	Bracket, Radiator Support, No.1
17852	17852-58011	Bracket, Radiator Support, No.2
91641	91641-C0612	New Genuine Part
9011908	90119-08A13	New Genuine Part
9011908	90119-08A25	BOLT WWASHER
9011908	90119-08A74	New Genuine Part
9011908	91641-K0816	BOLT WWASHER
1619271010	16192-71010	BOLT
9010508339	90105-08339	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9010508339	91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9011910531	90119-10531	BOLT WWASHER
9011910757	90119-10757	New Genuine Part
9011910757	91642-K1020	BOLT WWASHER
9017906080	90179-06080	NUT
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9017908143	90179-08143	NUT
9046938002	90469-38002	New Genuine Part
9054011008	90540-11008	Insulator, Radiator Mounting
9095901486	90959-01486	New Genuine Part
9151260835	91512-60835	Bolt (for Pawl Stopper Plate)
9151260835	90105-08200	Bolt(For Cylinder Head Set Sub)
9162140855	91621-40855	New Genuine Part
9162160612	91621-60612	BOLTWWASHER
9162160612	91621-J0612	BOLT W-WASHER
9163140825	91631-40825	New Genuine Part
9163140828	91631-40828	New Genuine Part
9164281025	91642-81025	BOLT WWASHER
9164281028	91642-81028	Bolt
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part
9212260828	92122-60828	New Genuine Part
9413001002	94130-01002	Nut, Booster Sleeve Cylinder

OEM	Part name	Category
16119-75020	Gasket, Thermostat Guide	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16128-75020	Plate, Water Pump Thermostat Guide	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16192-71010	BOLT	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16261-75040	Hose, Water By-Pass	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16267-75010	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16268-75020	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16268-75080	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16321-0W010	Inlet, Water	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16325-76010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16331-0W010	Outlet, Water	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16341-75020	Gasket, Water Outlet	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16361-41070	Fan	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16361-41071	Fan	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16381-75040	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16381-75050	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16385-75030	Slider, Fan Belt Adjusting	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16400-75131	Radiator Assy	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16401-54750	Radiator Cap	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16401-71010	Cap Sub-Assy(For Water Outlet)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16405-58050	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16470-58070	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16505-58010	Support, Radiator, Upper	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16561-58010	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16567-58020	Hose(For Radiator Reserve Tank)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16571-75050	Hose, Radiator, No.1	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16572-75050	Hose, Radiator, No.2	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
16711-75030	Shroud, Fan	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
17175-75010	Gasket(For Water By-Pass Pipe)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
17851-58011	Bracket, Radiator Support, No.1	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
17852-58011	Bracket, Radiator Support, No.2	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90080-11395	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90105-08200	Bolt(For Cylinder Head Set Sub)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90105-08339	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90119-08A13	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90119-08A25	BOLT WWASHER	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90119-08A74	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90119-10531	BOLT WWASHER	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90119-10757	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90179-06080	NUT	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90179-08143	NUT	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90467-37002	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90467-37005	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90469-12009	Clamp Or Clip(For Radiator Reserve Tank Hose)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90469-38002	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90540-11008	Insulator, Radiator Mounting	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90916-03101	Thermostat	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90916-03120	Thermostat	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
90959-01486	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91512-60835	Bolt (for Pawl Stopper Plate)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91621-40855	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91621-60612	BOLTWWASHER	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91621-60614	Bolt(For Transaxle & Engine Setting)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91621-J0612	BOLT W-WASHER	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91631-40825	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91631-40828	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91641-C0612	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91641-K0816	BOLT WWASHER	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91642-81025	BOLT WWASHER	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91642-81028	Bolt	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91642-K1020	BOLT WWASHER	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
91651-40616	BOLT	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
92122-60828	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
94130-01002	Nut, Booster Sleeve Cylinder	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
96135-41300	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)
96135-51300	Clamp, Hose	Radiator & Water Outlet ([05.1995 - ] (9505- )3RZFE)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 195
Collected: 2026-08-03
