Search › Model › RZU100

RZU100

Toyota DYNA-200-TOYOACE-G25 · 1995 · 2,862 parts · 171 categories
RZU100 ×

← Back to categories

2,862 items

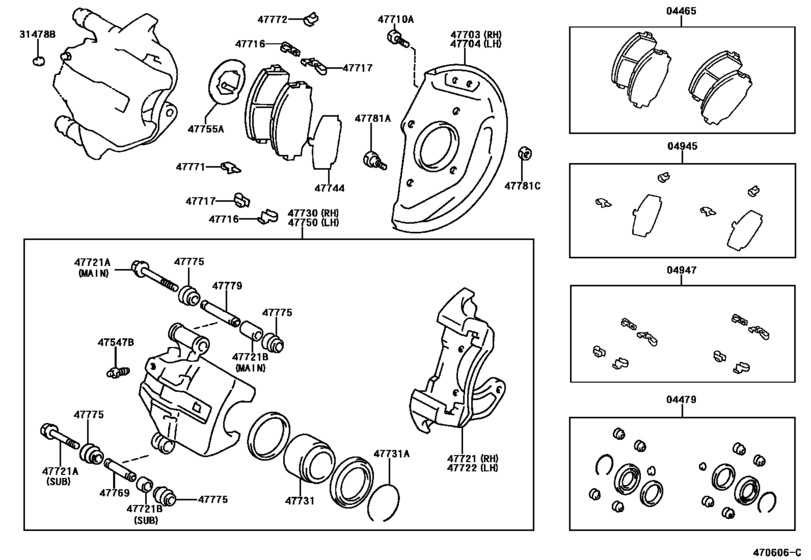

Front Disc Brake Caliper & Dust Cover ([01.2000 - ] (0001- )15T) 31
#OEMPart name
4465 04465-25020 Pad Kit, Disc Brake, Front
4465 04465-25080 Pad Kit, Disc Brake, Front
4479 04479-25010 Cylinder Kit, Disc Brake, Front
4945 04945-25010 Shim Kit, Anti Squeal, Front
4947 04947-25010 Fitting Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap
47547 47547-12010 Plug, Bleeder(For Release Cylinder)
47703 47703-37010 Cover Sub-Assy, Disc Brake Dust, Front Rh
47704 47704-37010 Cover Sub-Assy, Disc Brake Dust, Front Lh
47710 90101-12155 Bolt, Hexagon(For Front Disc Brake Caliper)
47716 47716-25011 Plate, Pad Support, No.1(For Front Disc Brake)
47717 47717-25011 Plate, Pad Support, No.2(For Front Disc Brake)
47721 47721-25020 Mounting, Front Disc Brake Cylinder, Rh
47721 90119-10014 Bolt(For Front Disc Brake Cylinder Mounting)
47721 90119-10249 Bolt(For Front Disc Brake Cylinder Mounting)
47721 90387-16004 Collar(For Front Disc Brake Cylinder Mounting)
47721 90387-16005 Collar(For Front Disc Brake Cylinder Mounting)
47722 47722-25020 Mounting, Front Disc Brake Cylinder, Lh
47730 47730-25020 Cylinder Assy, Front Disc Brake, Rh
47731 47731-25010 Piston, Front Disc Brake
47731 90522-76001 Ring, Set(For Front Disc Brake Piston)
47744 47744-25020 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47750 47750-25020 Cylinder Assy, Disc Brake, Lh
47755 47755-25010 Insulator, Disc Brake Heat
47769 47769-40010 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771 47771-25010 Plate, Pad Wear Indicator, No.1
47772 47772-25010 Plate, Pad Wear Indicator, No.2
47775 47775-40010 Boot, Bush Dust(For Front Disc Brake)
47779 47779-40010 Bush, Cylinder Slide, No.2(For Front Disc Brake)
47781 90109-12027 Bolt, Hexagon(For Front Disc Brake Caliper)
47781 94130-01202 Nut(For Dust Cover To Steering Knuckle Arm Setting)
