RZU100

Toyota DYNA-200-TOYOACE-G25 · 1995 · 2,862 parts · 171 categories

2,862 items

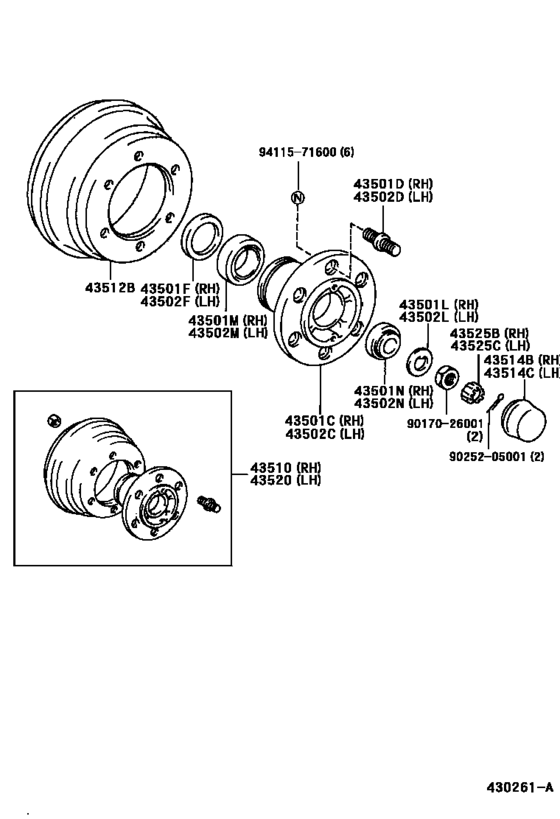

Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T) 20

#	OEM	Part name
43501	43501-37020	Hub Sub-Assy, Front Axle, Rh
43501	43511-37903	Hub Sub-Assy, Front Axle, Rh
43501	90942-02050	Bolt, Hub (For Rear Axle Rh)
43501	90942-02061	Bolt, Hub (For Rear Axle Rh)
43501	90311-68001	Seal, Oil (For Front Axle Hub Rh)
43501	90214-27001	Washer, Claw (For Front Axle Hub Rh)
43501	90368-42045	Bearing (For Front Axle Hub Inner Rh)
43501	90368-28001	Bearing (For Front Axle Hub Outer Rh)
43502	43502-37020	Hub Sub-Assy, Front Axle, Lh
43502	90942-02051	Bolt, Hub (For Rear Axle Lh)
43502	90942-02062	Bolt, Hub (For Rear Axle Lh)
43510	43510-37070	Hub And Brake Drum Assy, Front Axle, Rh
43512	43512-36090	Drum Sub-Assy, Front Brake
43514	43514-36030	Cap, Front Hub Grease
43520	43520-37070	Hub And Brake Drum Assy, Front Axle, Lh
43525	43525-36010	Cap, Front Wheel Adjusting Lock
9017026001	90170-26001	Nut (For Front Axle Shaft Rh)
9025205001	90252-05001	PINCOTTER
9411571600	94115-71600	Nut(For Front Suspension Lower Arm)
9411571600	94130-01602	Nut(For Dust Cover To Steering Knuckle Arm Setting)

OEM	Part name	Category
43501-37020	Hub Sub-Assy, Front Axle, Rh	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
43502-37020	Hub Sub-Assy, Front Axle, Lh	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
43510-37070	Hub And Brake Drum Assy, Front Axle, Rh	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
43511-37903	Hub Sub-Assy, Front Axle, Rh	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
43512-36090	Drum Sub-Assy, Front Brake	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
43514-36030	Cap, Front Hub Grease	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
43520-37070	Hub And Brake Drum Assy, Front Axle, Lh	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
43525-36010	Cap, Front Wheel Adjusting Lock	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
90170-26001	Nut (For Front Axle Shaft Rh)	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
90214-27001	Washer, Claw (For Front Axle Hub Rh)	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
90252-05001	PINCOTTER	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
90311-68001	Seal, Oil (For Front Axle Hub Rh)	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
90368-28001	Bearing (For Front Axle Hub Outer Rh)	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
90368-42045	Bearing (For Front Axle Hub Inner Rh)	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
90942-02050	Bolt, Hub (For Rear Axle Rh)	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
90942-02051	Bolt, Hub (For Rear Axle Lh)	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
90942-02061	Bolt, Hub (For Rear Axle Rh)	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
90942-02062	Bolt, Hub (For Rear Axle Lh)	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
94115-71600	Nut(For Front Suspension Lower Arm)	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
94130-01602	Nut(For Dust Cover To Steering Knuckle Arm Setting)	Front Axle Hub ([12.1997 - 01.2000] (9712-0001)WT..15T)
