RZU100

Toyota DYNA-200-TOYOACE-G25 · 1995 · 2,862 parts · 171 categories

2,862 items

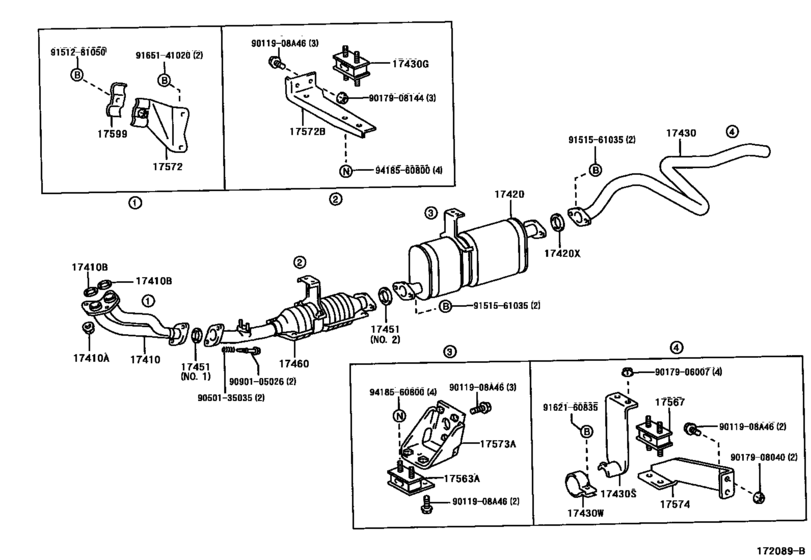

Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T) 35

#	OEM	Part name
17410	17410-75251	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06061	Gasket, Exhaust Pipe
17420	17420-75230	Pipe Assy, Exhaust, Center
17420	90917-06045	Gasket, Exhaust Pipe
17420	90080-43028	Gasket, Exhaust Pipe
17430	17430-75360	Pipe Assy, Exhaust, Tail
17430	17567-58010	Cushion, Exhaust Pipe Front (For Rear)
17430	17561-47010	Bracket, Exhaust Pipe Center, Front
17430	90461-32007	Clamp No.1, Exhaust Tail Pipe (For Front)
17451	17451-67010	Gasket, Exhaust Pipe, Center
17451	90917-06050	Gasket, Exhaust Pipe
17460	17460-75010	Converter Assy, Catalytic W/pipe
17563	17563-58010	Cushion, Exhaust Pipe Center, Center
17563	17563-58041	Cushion, Exhaust Pipe Center, Center - EXHAUST PIPE, NO.3
17567	17567-17010	Cushion, Exhaust Pipe Center, Rear
17572	17571-75211	Bracket, Exhaust Pipe No.1 Support
17572	17572-75170	Bracket, Exhaust Pipe Support, No.2
17573	17573-58040	Bracket, Exhaust Pipe, Center
17574	17574-58040	Bracket, Exhaust Tail Pipe (For Rear)
17599	17599-75010	Holder, Exhaust Pipe Support Stopper
9011908	90119-08A46	BOLT WWASHER
9017906007	90179-06007	Nut
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9017908144	90179-08144	New Genuine Part
9017908144	90179-08233	NUT
9050135035	90501-35035	Spring, Exhaust Pipe
9090105026	90901-05026	Bolt, Exhaust Pipe Support
9151281050	91512-81050	New Genuine Part
9151561035	91515-61035	BOLT
9162160835	91621-60835	BOLT
9162160835	91651-B0835	BOLT
9165141020	91651-41020	BOLT W-WASHER
9418560800	94185-60800	NUT

OEM	Part name	Category
17410-75251	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17420-75230	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17430-75360	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17451-67010	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17460-75010	Converter Assy, Catalytic W/pipe	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17561-47010	Bracket, Exhaust Pipe Center, Front	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17563-58010	Cushion, Exhaust Pipe Center, Center	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17563-58041	Cushion, Exhaust Pipe Center, Center - EXHAUST PIPE, NO.3	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17567-17010	Cushion, Exhaust Pipe Center, Rear	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17567-58010	Cushion, Exhaust Pipe Front (For Rear)	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17571-75211	Bracket, Exhaust Pipe No.1 Support	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17572-75170	Bracket, Exhaust Pipe Support, No.2	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17573-58040	Bracket, Exhaust Pipe, Center	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17574-58040	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
17599-75010	Holder, Exhaust Pipe Support Stopper	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90080-43028	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90119-08A46	BOLT WWASHER	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90179-06007	Nut	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90179-08144	New Genuine Part	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90179-08233	NUT	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90461-32007	Clamp No.1, Exhaust Tail Pipe (For Front)	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90917-06045	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90917-06050	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
90917-06061	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
91512-81050	New Genuine Part	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
91515-61035	BOLT	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
91621-60835	BOLT	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
91651-41020	BOLT W-WASHER	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
91651-B0835	BOLT	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
94185-60800	NUT	Exhaust Pipe ([08.1999 - ] (9908- )3RZFE..15T)
