Search › Model › RZU100

RZU100

Toyota DYNA-200-TOYOACE-G25 · 1995 · 2,862 parts · 171 categories

2,862 items

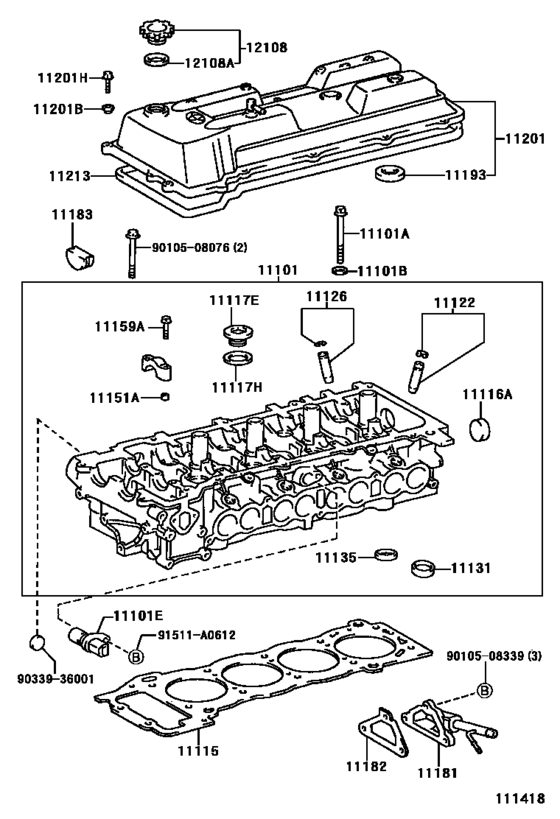

Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T) 40

#	OEM	Part name
11101	11101-79275	Head Sub-Assy, Cylinder
11101	11101-79276	Head Sub-Assy, Cylinder
11101	13715-75050	Valve, Exhaust
11101	90910-02091	Bolt(For Cylinder Head Set)
11101	90910-02187	Bolt(For Cylinder Head Set)
11101	90201-12222	Washer, Plate(For Cylinder Head Set)
11101	90919-05026	Sensor, Position
11115	11115-75031	Gasket, Cylinder Head
11116	96411-62800	Plug, Tight, No.1
11117	90341-27006	Plug, W/head Straight Screw, No.1
11117	90430-27005	Gasket(For Cylinder Head Screw Plug)
11122	11122-16010	Bush, Intake Valve Guide
11122	11122-16020	Bush, Intake Valve Guide
11122	11123-16010	Bush, Intake Valve Guide
11126	11126-50050	Bush, Exhaust Valve Guide
11126	11127-50050	Bush, Exhaust Valve Guide
11131	11131-75030	Seat, Intake Valve
11131	11132-75030	Seat, Intake Valve
11135	11135-75030	Seat, Exhaust Valve
11135	11135-75040	Seat, Exhaust Valve
11135	11136-75030	Seat, Exhaust Valve
11135	11136-75040	Seat, Exhaust Valve
11151	90253-10006	Pin, Ring(For Camshaft Bearing Cap Setting)
11159	90119-07009	Bolt(For Camshaft Housing Set)
11181	11181-75021	Plate, Cylinder Head, Rear
11182	11182-75010	Gasket, Cylinder Head Rear Plate
11183	11183-50010	Plug, Semicircular
11193	11193-15010	Gasket(For Spark Plug Tube)
11201	11201-75020	Cover Sub-Assy, Cylinder Head
11201	90210-07001	Washer, Seal(For Cylinder Head Cover)
11201	91513-J0628	Bolt(For Cylinder Head Cover)
11201	91511-J0625	Bolt(For Cylinder Head Cover)
11213	11213-75030	Gasket, Cylinder Head Cover
12108	12180-65011	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
91511	91511-A0612	New Genuine Part
9010508076	90105-08076	BOLT
9010508339	90105-08339	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9010508339	91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9033936001	90339-36001	PLUG

OEM	Part name	Category
11101-79275	Head Sub-Assy, Cylinder	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11101-79276	Head Sub-Assy, Cylinder	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11115-75031	Gasket, Cylinder Head	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11122-16010	Bush, Intake Valve Guide	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11122-16020	Bush, Intake Valve Guide	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11123-16010	Bush, Intake Valve Guide	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11126-50050	Bush, Exhaust Valve Guide	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11127-50050	Bush, Exhaust Valve Guide	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11131-75030	Seat, Intake Valve	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11132-75030	Seat, Intake Valve	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11135-75030	Seat, Exhaust Valve	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11135-75040	Seat, Exhaust Valve	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11136-75030	Seat, Exhaust Valve	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11136-75040	Seat, Exhaust Valve	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11181-75021	Plate, Cylinder Head, Rear	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11182-75010	Gasket, Cylinder Head Rear Plate	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11183-50010	Plug, Semicircular	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11193-15010	Gasket(For Spark Plug Tube)	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11201-75020	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
11213-75030	Gasket, Cylinder Head Cover	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
12180-65011	Cap Sub-Assy, Oil Filler	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
13715-75050	Valve, Exhaust	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
90105-08076	BOLT	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
90105-08339	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
90119-07009	Bolt(For Camshaft Housing Set)	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
90201-12222	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
90210-07001	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
90253-10006	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
90339-36001	PLUG	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
90341-27006	Plug, W/head Straight Screw, No.1	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
90430-27005	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
90910-02091	Bolt(For Cylinder Head Set)	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
90910-02187	Bolt(For Cylinder Head Set)	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
90919-05026	Sensor, Position	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
91511-A0612	New Genuine Part	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
91511-J0625	Bolt(For Cylinder Head Cover)	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
91513-J0628	Bolt(For Cylinder Head Cover)	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
96411-62800	Plug, Tight, No.1	Cylinder Head ([08.1999 - ] (9908- )3RZFE..15T)
