RZN210

Toyota HILUX-SURF-4RUNNER · 2002 · 3,852 parts · 178 categories

3,852 items

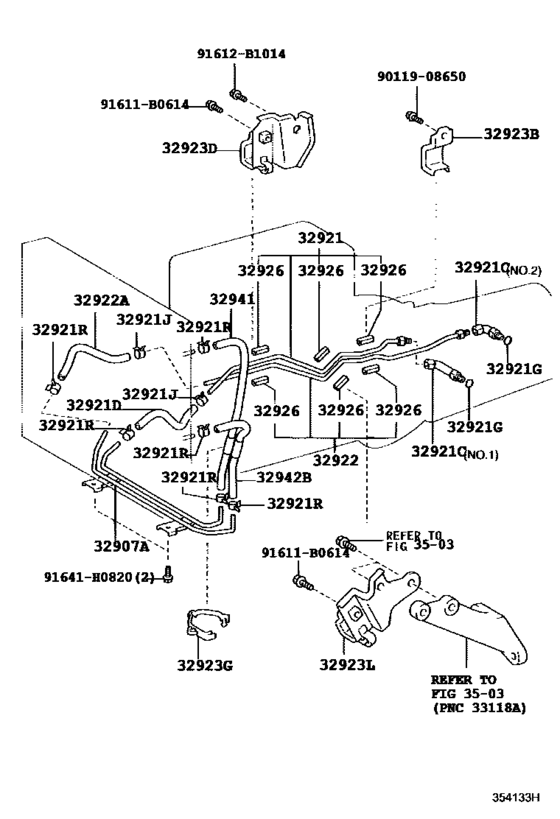

Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#) 20

#	OEM	Part name
32907	32907-60070	Tube, Oil Cooler
32907	32907-60071	TUBE SUB-ASSY, OIL
32921	32921-60340	Tube, Oil Cooler Inlet, No.1
32921	90407-16009	Union(For Oil Cooler Tube)
32921	90407-16012	Union(For Oil Cooler Tube)
32921	32941-22360	Hose(For Oil Cooler Inlet)
32921	90301-11006	O Ring, Transaxle Case Elbow
32921	90467-16022	Clip(For Water Inlet Hose)
32922	32922-60360	Tube, Oil Cooler Outlet, No.1
32923	32929-24060	Clamp(For Oil Cooler Tube)
32923	32909-34040	Clamp, Automatic Transmission Oil Cooler Tube, No.4
32923	32928-60100	Clamp, Automatic Transmission Oil Cooler Tube, No.8
32923	32909-35170	Clamp, Automatic Transmission Oil Cooler Tube, No.3
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
32941	32941-60280	Hose, Oil Cooler Inlet, No.1
32942	32942-60390	Hose, Oil Cooler Outlet, No.3
91611	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
91612	91612-B1014	BOLT WWASHER
91641	91641-H0820	Bolt
9011908650	90119-08650	New Genuine Part

OEM	Part name	Category
32907-60070	Tube, Oil Cooler	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
32907-60071	TUBE SUB-ASSY, OIL	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
32909-34040	Clamp, Automatic Transmission Oil Cooler Tube, No.4	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
32909-35170	Clamp, Automatic Transmission Oil Cooler Tube, No.3	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
32921-60340	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
32922-60360	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
32928-60100	Clamp, Automatic Transmission Oil Cooler Tube, No.8	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
32929-24060	Clamp(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
32941-22360	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
32941-60280	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
32942-60390	Hose, Oil Cooler Outlet, No.3	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
90119-08650	New Genuine Part	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
90407-16009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
90407-16012	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
91612-B1014	BOLT WWASHER	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
91641-H0820	Bolt	Oil Cooler & Tube (Atm) ([11.2002 - 08.2004] A343E,A343F (0211-0408)RZN21#)
