RZN185

Toyota HILUX-SURF-4RUNNER · 1995 · 5,386 parts · 229 categories
RZN185 ×

← Back to categories

5,386 items

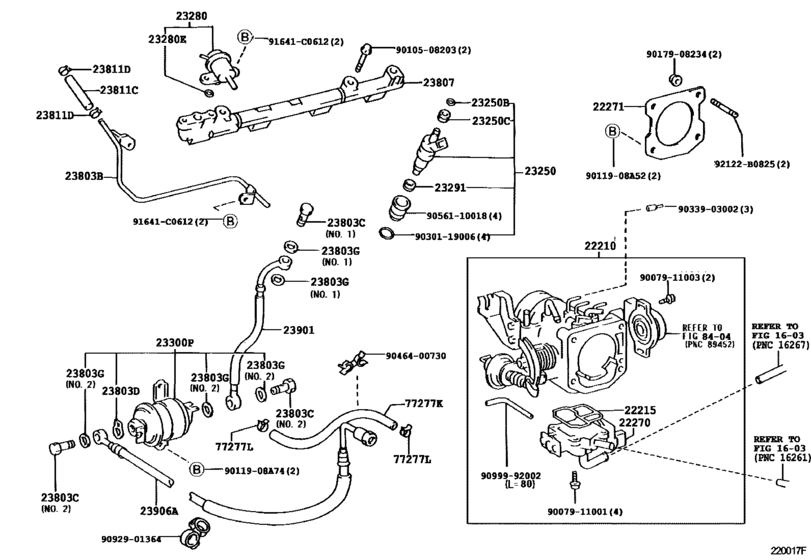

Fuel Injection System ([11.1995 - 08.2000] (9511-0008)3RZFE) 49
#OEMPart name
22210 22210-75180 Body Assy, Throttle
22210 22210-75240 Body Assy, Throttle
22215 22215-75050 Gasket, Throttle Body Cover
22215 22215-7A680 Gasket, Throttle Body Cover
22270 22270-75030 Valve Assy, Idle Speed Control(For Thlottle Body)
22270 22270-75050 Valve Assy, Idle Speed Control(For Thlottle Body)
22270 22270-75051 Valve Assy, Idle Speed Control(For Thlottle Body)
22271 22271-75020 Gasket, Throttle Body
23250 23209-79095 Injector Assy, Fuel
23250 23209-79135 Injector Assy, Fuel
23250 90301-07001 Ring, O(For Fuel Injector)
23250 90301-07024 Ring, O(For Fuel Injector)
23250 90480-13005 Grommet(For Fuel Injector)
23280 23280-75020 Regulator Assy, Fuel Pressure
23291 23291-73010 Insulator, Injector Vibration
23300 23300-79446 Filter, Fuel(For Efi)
23803 23803-75020 Pipe Sub-Assy, Fuel, No.3
23803 90401-12033 Bolt, Union(For Fuel Pipe)
23803 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
23803 90430-12017 Gasket(For Fuel Filter)
23803 90430-12026 Gasket
23803 23279-74010 Gasket(For Fuel Pump Hose)
23807 23807-75021 Pipe Sub-Assy, Fuel Delivery
23807 23807-75022 Pipe Sub-Assy, Fuel Delivery
23811 90445-12290 Hose, Fuel(For Fuel Pipe To Pressure Regulator)
23811 95334-06012 Hose, Fuel(For Fuel Pipe To Pressure Regulator)
23811 96135-41100 Clamp Or Clip, Hose(For Water By-Pass Pipe)
23811 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
23901 23901-75031 Tube Sub-Assy, Fuel
23901 23901-75050 Tube Sub-Assy, Fuel
23906 23906-75040 Hose Sub-Assy, Fuel
77277 23273-75040 Hose, Fuel, No.1 (For Fuel Return No.2 Tube)
77277 23273-75050 Hose, Fuel(For Return Hose)
91641 91641-C0612 New Genuine Part
92122 92122-B0825 Bolt, Stud(For Water Outlet Setting)
9011908 90119-08A52 Bolt, Compressor, No.1
9011908 91641-80835 Bolt, Compressor, No.1
9011908 90119-08A74 New Genuine Part
9011908 91641-K0816 BOLT WWASHER
9007911001 90079-11001 SCREW
9007911003 90079-11003 New Genuine Part
9010508203 90105-08203 New Genuine Part
9017908234 90179-08234 NUT
9030119006 90301-19006 Ring, O(For Fuel Injector)
9033903002 90339-03002 PLUG
9046400730 90464-00730 New Genuine Part
9056110018 90561-10018 Spacer(For Fuel Injector)
9092901364 90929-01364 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
