RZN180

Toyota HILUX-SURF-4RUNNER · 1995 · 5,496 parts · 277 categories

5,496 items

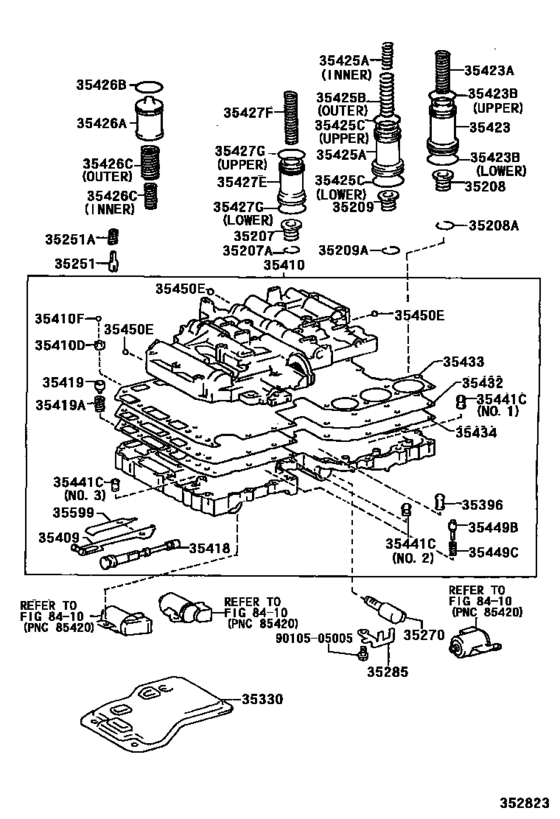

Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180) 40

#	OEM	Part name
35207	35207-22010	Spring Sub-Assy, B-0 Accumulator
35207	90521-22004	Ring, Hole Snap (For B-3 Accumulator Spring)
35208	35208-30010	Spring Sub-Assy, B-2 Accumulator
35209	35209-30010	Spring Sub-Assy, C-2 Accumulator
35251	35251-30020	Body, Check Ball
35251	90501-03005	Spring, Compression (For Check Ball Body)
35270	35270-14010	Solenoid Assy, Shift Control
35285	35285-24010	Plate, Solenoid Lock
35330	35330-30020	Strainer Assy, Valve Body Oil
35409	35409-22020	Spring Sub-Assy, Manual Detent
35410	35410-35590	Body Assy, Transmission Valve
35418	35418-24010	Valve, Manual
35419	35419-50010	Valve, Check, No.1
35419	90501-09093	Spring, Compression (For Check Valve)
35423	35423-30030	Piston, B-2 Accumulator
35423	90501-24015	Spring, Compression (For B-2 Accumulator Piston)
35423	90301-23010	Ring (For Accumulator Piston No.1)
35423	90301-31010	Ring, O (For B-2 Accumulator Piston)
35425	35425-30020	Piston, C-2 Accumulator
35425	90501-23093	Spring, Compression (For C-2 Accumulator Piston)
35425	90501-25027	Spring, Compression (For C-2 Accumulator Piston)
35425	90301-25010	Ring, O(For Oil Pump Suction Pipe)
35426	35426-40010	Piston, C-0 Accumulator
35426	90301-24010	Ring, O (For C-0 Accumulator Piston)
35426	90501-22008	Spring, Compression (For C-2 Accumulator Piston)
35426	90501-23073	Spring, Compression (For C-0 Accumulator Piston)
35427	35427-30040	Piston, B-0 Accumulator
35427	90501-21006	Spring, Compression (For B-0 Accumulator Piston)
35427	90301-20008	Ring, O (For C-2 Accumulator Piston)
35427	90301-26011	Ring, O (For C-3 Accumulator Piston)
35432	35432-35270	Plate, Valve Body, No.1
35433	35433-60040	Gasket, Valve Body, No.1
35434	35434-60040	Gasket, Valve Body, No.2
35441	35441-24010	Strainer, Solenoid Oil
35441	35441-24020	Strainer, Solenoid Oil
35441	35441-50030	Strainer, Solenoid Oil
35450	35495-22020	Ball (For Transfer Upper Valve Body)
35450	35496-22030	Ball (For Lower Valve Body)
35599	35599-22020	Cover, Manual Detent Spring
9010505005	90105-05005	Bolt (For Transfer Relief Valve Plate)

OEM	Part name	Category
35207-22010	Spring Sub-Assy, B-0 Accumulator	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35208-30010	Spring Sub-Assy, B-2 Accumulator	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35209-30010	Spring Sub-Assy, C-2 Accumulator	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35251-30020	Body, Check Ball	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35270-14010	Solenoid Assy, Shift Control	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35285-24010	Plate, Solenoid Lock	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35330-30020	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35409-22020	Spring Sub-Assy, Manual Detent	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35410-35590	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35418-24010	Valve, Manual	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35419-50010	Valve, Check, No.1	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35423-30030	Piston, B-2 Accumulator	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35425-30020	Piston, C-2 Accumulator	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35426-40010	Piston, C-0 Accumulator	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35427-30040	Piston, B-0 Accumulator	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35432-35270	Plate, Valve Body, No.1	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35433-60040	Gasket, Valve Body, No.1	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35434-60040	Gasket, Valve Body, No.2	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35441-24010	Strainer, Solenoid Oil	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35441-24020	Strainer, Solenoid Oil	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35441-50030	Strainer, Solenoid Oil	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35495-22020	Ball (For Transfer Upper Valve Body)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35496-22030	Ball (For Lower Valve Body)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
35599-22020	Cover, Manual Detent Spring	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90105-05005	Bolt (For Transfer Relief Valve Plate)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90301-20008	Ring, O (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90301-23010	Ring (For Accumulator Piston No.1)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90301-24010	Ring, O (For C-0 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90301-25010	Ring, O(For Oil Pump Suction Pipe)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90301-26011	Ring, O (For C-3 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90301-31010	Ring, O (For B-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90501-03005	Spring, Compression (For Check Ball Body)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90501-09093	Spring, Compression (For Check Valve)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90501-21006	Spring, Compression (For B-0 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90501-22008	Spring, Compression (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90501-23073	Spring, Compression (For C-0 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90501-23093	Spring, Compression (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90501-24015	Spring, Compression (For B-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90501-25027	Spring, Compression (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)
90521-22004	Ring, Hole Snap (For B-3 Accumulator Spring)	Valve Body & Oil Strainer (Atm) ([08.2000 - ] A340E (0008- )RZN180)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 277
Collected: 2026-08-03
