RZN152

Toyota HILUX-4RUNNER-TRUCK · 1999 · 3,527 parts · 188 categories
RZN152 ×

← Back to categories

3,527 items

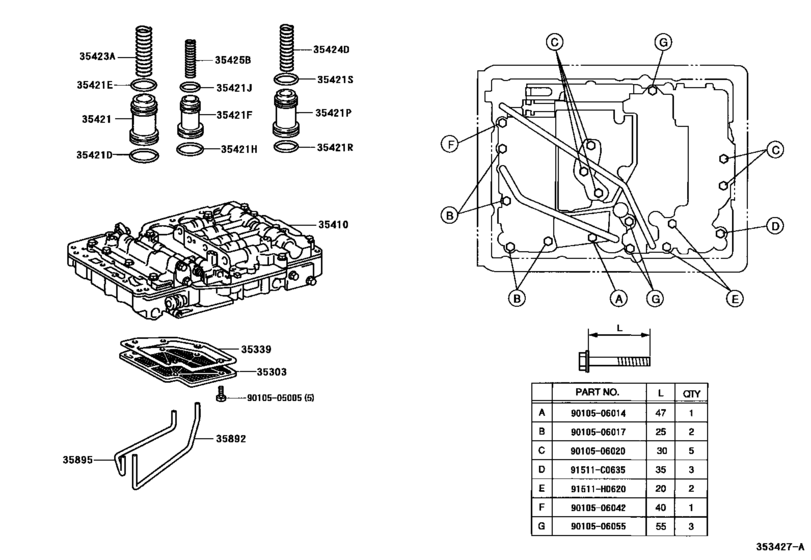

Valve Body & Oil Strainer (Atm) ([08.2001 - ] A44D (0108- )RZN147,152..ATM) 29
#OEMPart name
35303 35303-30050 Strainer Sub-Assy, Oil
35303 35303-35020 Strainer Sub-Assy, Oil
35339 35339-28010 Gasket, Oil Strainer
35410 35410-35650 Body Assy, Transmission Valve
35410 35410-35690 Body Assy, Transmission Valve
35421 35421-30020 Piston, Accumulator, No.1
35421 90301-29011 Ring (For Accumulator Piston No.1)
35421 90301-23010 Ring (For Accumulator Piston No.1)
35421 35441-30010 Piston, Accumulator, No.2
35421 90301-26012 Ring (For Accumulator Piston No.1)
35421 90301-18010 Ring (For Accumulator Piston No.2)
35421 35421-22030 Piston, Accumulator, No.3
35421 90301-21012 Ring (For Accumulator Piston No.3)
35423 90501-28025 Spring, Compression (For B-2 Accumulator Piston)
35424 90501-20016 Spring, Compression (For Accumulator Piston No.3)
35425 90501-27016 Spring, Compression (For Accumulator Piston No.1)
35892 35892-28010 Tube, Overdrive Brake
35892 35892-28020 Tube, Overdrive Brake
35895 35895-30021 Tube, Front Clutch Apply
91511 91511-C0635 BOLT, FLANGE
91511 91511-H0620 Bolt (For Transaxle Case Upper Cover)
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate)
9010506014 90105-06014 New Genuine Part
9010506017 90105-06017 Bolt(for Cylinder Head Cover)
9010506017 91551-A0625 Bolt(For Cylinder Head Cover)
9010506020 90105-06020 New Genuine Part
9010506020 91511-C0630 New Genuine Part
9010506042 90105-06042 New Genuine Part
9010506055 90105-06055 New Genuine Part
