Search › Model › RZN152

RZN152

Toyota HILUX-4RUNNER-TRUCK · 1999 · 3,527 parts · 188 categories

3,527 items

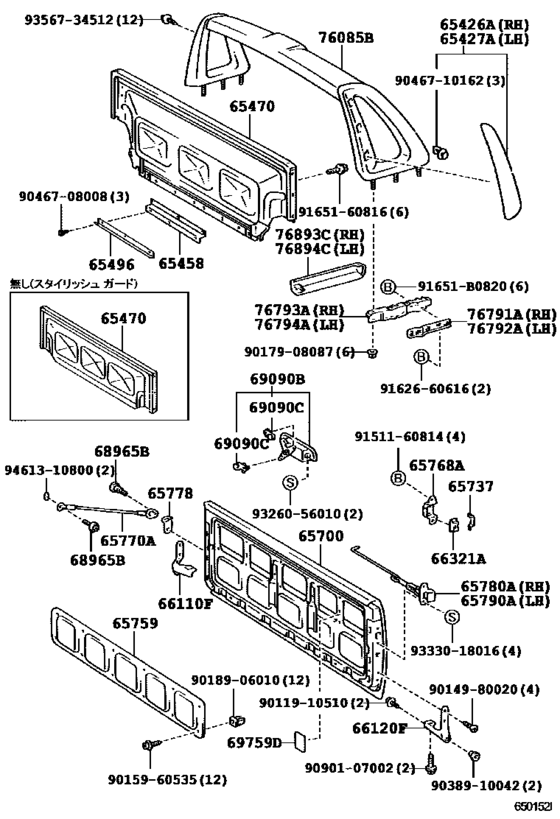

Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174) 56

#	OEM	Part name
65426	65426-35010	Plate, Rear Body Guard, Rh
65427	65427-35010	Plate, Rear Body Guard, Lh
65458	65458-35010	Plate, Baffle Duct Rear Body, Lh
65470	65470-35190	Board Assy, Header
65496	64122-35010	Seal, Rear Body Guard Frame, No.4
65700	65700-35130	Gate Assy, Rear Body Tail
65700	65700-89151	Gate Assy, Rear Body Tail
65737	65737-89105	Stop, Tail Gate
65759	65759-89105	Cover, Tail Gate Service Hole
65768	65768-89102	Striker, Tail Gate Lock
65770	65770-35010	Stay Assy, Tail Gate
65778	65778-35010	Stopper, Tail Gate Stay
65780	65780-35030	Lock Assy, Tail Gate, Rh
65790	65790-35040	Lock Assy, Tail Gate, Lh
65790	65790-35050	Lock Assy, Tail Gate, Lh
66110	66110-89108	Hinge Assy, Tail Gate
66120	66120-89102	Hinge Assy, Tail Gate
66321	66321-89109	Bumper, Gate Rubber
68965	68965-35010	Shaft, Tail Gate Stay
69090	69090-35020-G0	Handle Assy, Tail Gate
69090	69090-89101	Handle Assy, Tail Gate
69090	69090-0K060	Handle Assy, Tail Gate (Chrome plated)
69090	69759-20100	Snap, Tail Gate Handle
69090	69759-20110	Snap, Auxiliary Catch Release Lever Control Link
69759	69759-35020	Silencer, Tail Gate Lock Link
76085	76085-35900	Spoiler Sub-Assy, Rear
76085	76085-35902	Spoiler Sub-Assy, Rear
76791	76791-35010	Bracket, Rear Spoiler, No.1 Rh
76792	76792-35010	Bracket, Rear Spoiler, No.1 Lh
76793	76793-35010	Bracket, Rear Spoiler, No.2 Rh
76794	76794-35010	Bracket, Rear Spoiler, No.2 Lh
76893	76893-35901	Cover, Rear Spoiler, Rh
76893	76893-35902	Cover, Rear Spoiler, Rh
76894	76894-35901	Cover, Rear Spoiler, Lh
76894	76894-35902	Cover, Rear Spoiler, Lh
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
9011910510	90119-10510	BOLT
9014980020	90149-80020	SCREW
9015960535	90159-60535	SCREW WWASHER
9017908087	90179-08087	Nut
9018906010	90189-06010	Clip(For Front Door Inside Handle)
9038910042	90389-10042	COLLAR
9046708008	90467-08008	Clip, Step Plate Cover
9046710162	90467-10162	Clip, Front Wheel Opening Extensoion
9090107002	90901-07002	BOLT HEX LOBULAR
9151160814	91511-60814	New Genuine Part
9151160814	91511-B0814	BOLT
9162660616	91626-60616	New Genuine Part
9162660616	91621-J0612	BOLT W-WASHER
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9326056010	93260-56010	SCREW
9333018016	93330-18016	New Genuine Part
9356734512	93567-34512	New Genuine Part
9461310800	94613-10800	Spacer (For Control Select Lever Support)

OEM	Part name	Category
64122-35010	Seal, Rear Body Guard Frame, No.4	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65426-35010	Plate, Rear Body Guard, Rh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65427-35010	Plate, Rear Body Guard, Lh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65458-35010	Plate, Baffle Duct Rear Body, Lh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65470-35190	Board Assy, Header	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65700-35130	Gate Assy, Rear Body Tail	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65700-89151	Gate Assy, Rear Body Tail	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65737-89105	Stop, Tail Gate	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65759-89105	Cover, Tail Gate Service Hole	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65768-89102	Striker, Tail Gate Lock	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65770-35010	Stay Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65778-35010	Stopper, Tail Gate Stay	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65780-35030	Lock Assy, Tail Gate, Rh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65790-35040	Lock Assy, Tail Gate, Lh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
65790-35050	Lock Assy, Tail Gate, Lh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
66110-89108	Hinge Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
66120-89102	Hinge Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
66321-89109	Bumper, Gate Rubber	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
68965-35010	Shaft, Tail Gate Stay	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
69090-0K060	Handle Assy, Tail Gate (Chrome plated)	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
69090-35020-G0	Handle Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
69090-89101	Handle Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
69759-20100	Snap, Tail Gate Handle	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
69759-20110	Snap, Auxiliary Catch Release Lever Control Link	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
69759-35020	Silencer, Tail Gate Lock Link	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
76085-35900	Spoiler Sub-Assy, Rear	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
76085-35902	Spoiler Sub-Assy, Rear	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
76791-35010	Bracket, Rear Spoiler, No.1 Rh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
76792-35010	Bracket, Rear Spoiler, No.1 Lh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
76793-35010	Bracket, Rear Spoiler, No.2 Rh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
76794-35010	Bracket, Rear Spoiler, No.2 Lh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
76893-35901	Cover, Rear Spoiler, Rh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
76893-35902	Cover, Rear Spoiler, Rh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
76894-35901	Cover, Rear Spoiler, Lh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
76894-35902	Cover, Rear Spoiler, Lh	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
90080-11347	New Genuine Part	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
90080-11396	Bolt	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
90119-10510	BOLT	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
90149-80020	SCREW	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
90159-60535	SCREW WWASHER	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
90179-08087	Nut	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
90189-06010	Clip(For Front Door Inside Handle)	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
90389-10042	COLLAR	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
90467-08008	Clip, Step Plate Cover	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
90467-10162	Clip, Front Wheel Opening Extensoion	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
90901-07002	BOLT HEX LOBULAR	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
91511-60814	New Genuine Part	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
91511-B0814	BOLT	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
91621-J0612	BOLT W-WASHER	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
91626-60616	New Genuine Part	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
91651-60816	BOLT	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
91651-B0820	Bolt, Radiator Side Support Plate	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
93260-56010	SCREW	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
93330-18016	New Genuine Part	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
93567-34512	New Genuine Part	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)
94613-10800	Spacer (For Control Select Lever Support)	Rear Body Guard Frame & Tail Gate ([08.2001 - 07.2004] (9708-0108)Q ; (0108-0407)LN172,RZN152,169,174)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 188
Collected: 2026-08-04
