Search › Model › RZN152

RZN152

Toyota HILUX-4RUNNER-TRUCK · 1999 · 3,527 parts · 188 categories
RZN152 ×

← Back to categories

3,527 items

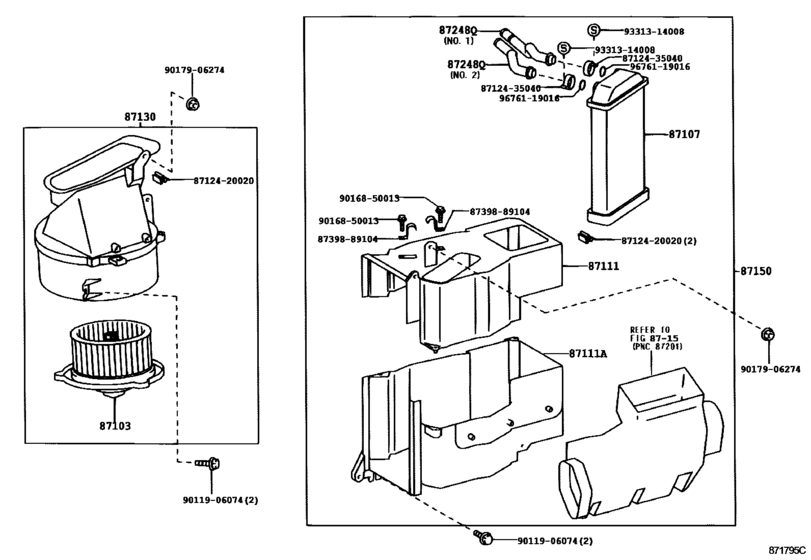

Heating & Air Conditioning - Heater Unit & Blower ([08.1997 - ] (9708- )) 19
#OEMPart name
87103 87103-35030 Motor Sub-Assy, Heater Blower, W/fan
87107 87107-35070 Unit Sub-Assy, Heater Radiator
87107 87107-35080 Unit Sub-Assy, Heater Radiator
87111 87111-35220 Case, Heater
87111 87111-35230 Case, Heater
87130 87130-35080 Blower Assy, Heater, Front
87130 87130-35090 Blower Assy, Heater, Front
87150 87150-35150 Radiator Assy, Heater
87150 87150-35180 Radiator Assy, Heater
87248 87156-35090 Pipe, Front Heater Radiator Water
87248 87156-35100 Pipe, Front Heater Radiator Water
8712420020 87124-20020 Clamp, Heater Control
8712435040 87124-35040 Clamp, Heater, No.3
8739889104 87398-89104 Band Assy (For Combustion Heater)
9011906074 90119-06074 Bolt
9016850013 90168-50013 SCREW
9017906274 90179-06274 Nut
9331314008 93313-14008 New Genuine Part
9676119016 96761-19016 RING
Source
Public OEM parts-catalog data
Variants
1 / 1
Category
188
Collected
2026-08-04
