Search › Model › RZN152

RZN152

Toyota HILUX-4RUNNER-TRUCK · 1999 · 3,527 parts · 188 categories

3,527 items

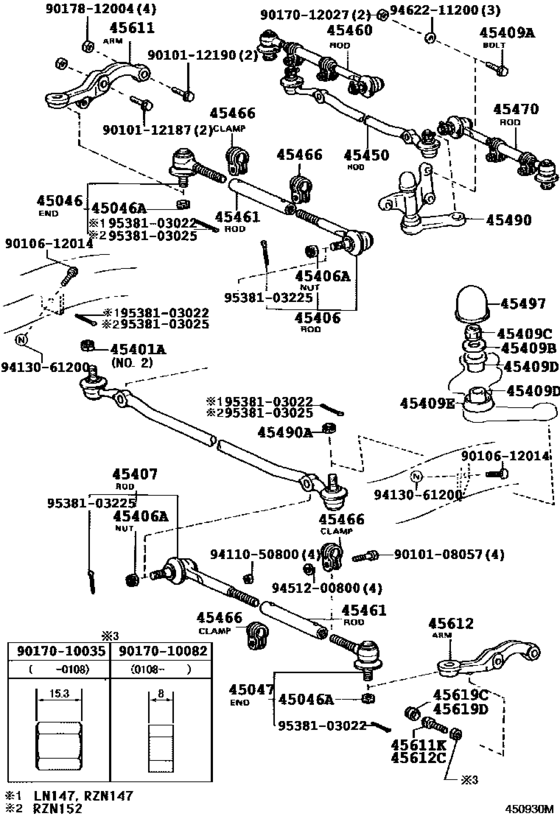

Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152) 63

#	OEM	Part name
44107	44107-35190	Housing Sub-Assy, Power Steering Gear
44107	90364-32003	Bearing, Needle Roller(For Power Steering Gear Housing)
44107	90301-33002	Ring, O (For Oil Pump Inner Bush)
44107	90301-65145	Ring, O(For Power Steering Gear Housing)
44107	96711-19010	Ring, O(For Oil Level Gage Guide)
44107	90562-31002	Ring(For Power Steering Gear Housing)
44107	90562-32002	Ring(For Power Steering Gear Housing)
44107	90521-44002	Ring, Hole Snap(For Power Steering Gear Housing)
44107	90311-32016	Seal, Oil(For Power Steering Gear Housing)
44108	44108-35070	Cover Sub-Assy, Side
44108	90301-64002	Ring, O(For Side Cover)
44111	44111-35030	Shaft, Cross
44120	44120-35310	Valve Assy, W/ball Nut
44142	44142-60020	Nut, Lock
44152	44152-30020	Plunger, Power Piston
44152	90501-20095	Spring, Compression(For Power Piston Plunger)
44153	44153-30020	Guide, Power Piston Plunger
44154	44154-30020	Nut, Power Piston Plunger Guide
44154	96711-19014	O-Ring
44257	90210-10001	Washer, Seal(For Cross Shaft Adjusting Screw)
45046	45046-39375	End Sub-Assy, Tie Rod, Rh
45046	90171-14042	Nut, Castle(For Pitman Arm)
45357	45357-60030	Screw, Cross Shaft Adjusting
45401	90170-22058	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)
45406	45406-39115	Rod Sub-Assy, Tie
45409	90101-12152	Bolt, Hexagon(For Idler Arm Support Setting)
45409	90101-12153	Bolt, Hexagon(For Idler Arm Support Setting)
45409	90201-14010	Washer, Plate(For Idler Arm Rubber Bush)
45409	94184-61400	Nut(For Idler Arm Support)
45409	90386-18002	Bush(For Idler Arm)
45409	90304-31012	Seal, Dust(For Idler Arm Support)
45450	45450-39245	Rod Assy, Steering Relay
45450	45450-39295	Rod Assy, Steering Relay
45460	45460-39485	Rod Assy, Tie, Rh
45461	45465-35060	Rod, Steering Tie
45466	45466-30020	Clamp, Tie Rod End
45490	45490-39305	Arm Assy, Steering Idler
45490	45490-39306	Arm Assy, Steering Idler
45490	45490-39465	Arm Assy, Steering Idler
45490	45490-39466	Arm Assy, Steering Idler
45490	90171-12028	Nut, Castle(For Pitman Arm)
45497	45497-28010	Cap, Idler Arm Bracket
45611	45611-35230	Arm, Steering Knuckle, Rh
45611	90106-10003	Bolt, Knuckle Stopper
45612	45612-35250	Arm, Steering Knuckle, Lh
45619	45619-35030	Cover, Steering Knuckle Stopper, Rh
9010108057	90101-08057	BOLT
9010112187	90101-12187	Bolt(For Dust Cover To Steering Knuckle Arm Rh)
9010112190	90101-12190	Bolt(For Dust Cover To Steering Knuckle Arm Rh)
9010612014	90106-12014	New Genuine Part
9011910070	90119-10070	New Genuine Part
9017010035	90170-10035	New Genuine Part
9017010082	90170-10082	Nut, Hexagon (For Control Rod Setting)
9017010208	90170-10208	NUT
9017012027	90170-12027	New Genuine Part
9017812004	90178-12004	Nut(For Dust Cover To Steering Knuckle Arm Rh)
9411050800	94110-50800	Nut(For Repair Actuator Set)
9413061200	94130-61200	Nut
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9462211200	94622-11200	WASHER
9538103022	95381-03022	Cotter pin
9538103025	95381-03025	PIN
9538103225	95381-03225	PIN COTTER

OEM	Part name	Category
44107-35190	Housing Sub-Assy, Power Steering Gear	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
44108-35070	Cover Sub-Assy, Side	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
44111-35030	Shaft, Cross	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
44120-35310	Valve Assy, W/ball Nut	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
44142-60020	Nut, Lock	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
44152-30020	Plunger, Power Piston	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
44153-30020	Guide, Power Piston Plunger	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
44154-30020	Nut, Power Piston Plunger Guide	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45046-39375	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45357-60030	Screw, Cross Shaft Adjusting	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45406-39115	Rod Sub-Assy, Tie	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45450-39245	Rod Assy, Steering Relay	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45450-39295	Rod Assy, Steering Relay	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45460-39485	Rod Assy, Tie, Rh	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45465-35060	Rod, Steering Tie	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45466-30020	Clamp, Tie Rod End	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45490-39305	Arm Assy, Steering Idler	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45490-39306	Arm Assy, Steering Idler	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45490-39465	Arm Assy, Steering Idler	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45490-39466	Arm Assy, Steering Idler	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45497-28010	Cap, Idler Arm Bracket	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45611-35230	Arm, Steering Knuckle, Rh	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45612-35250	Arm, Steering Knuckle, Lh	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
45619-35030	Cover, Steering Knuckle Stopper, Rh	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90101-08057	BOLT	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90101-12152	Bolt, Hexagon(For Idler Arm Support Setting)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90101-12153	Bolt, Hexagon(For Idler Arm Support Setting)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90101-12187	Bolt(For Dust Cover To Steering Knuckle Arm Rh)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90101-12190	Bolt(For Dust Cover To Steering Knuckle Arm Rh)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90106-10003	Bolt, Knuckle Stopper	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90106-12014	New Genuine Part	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90119-10070	New Genuine Part	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90170-10035	New Genuine Part	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90170-10082	Nut, Hexagon (For Control Rod Setting)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90170-10208	NUT	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90170-12027	New Genuine Part	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90170-22058	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90171-14042	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90178-12004	Nut(For Dust Cover To Steering Knuckle Arm Rh)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90201-14010	Washer, Plate(For Idler Arm Rubber Bush)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90210-10001	Washer, Seal(For Cross Shaft Adjusting Screw)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90301-33002	Ring, O (For Oil Pump Inner Bush)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90301-64002	Ring, O(For Side Cover)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90301-65145	Ring, O(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90304-31012	Seal, Dust(For Idler Arm Support)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90311-32016	Seal, Oil(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90364-32003	Bearing, Needle Roller(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90386-18002	Bush(For Idler Arm)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90501-20095	Spring, Compression(For Power Piston Plunger)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90521-44002	Ring, Hole Snap(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90562-31002	Ring(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
90562-32002	Ring(For Power Steering Gear Housing)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
94110-50800	Nut(For Repair Actuator Set)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
94130-61200	Nut	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
94184-61400	Nut(For Idler Arm Support)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
94622-11200	WASHER	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
95381-03022	Cotter pin	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
95381-03025	PIN	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
95381-03225	PIN COTTER	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
96711-19010	Ring, O(For Oil Level Gage Guide)	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
96711-19014	O-Ring	Front Steering Gear & Link ([08.1997 - ] (9708- )LN147,RZN147,152)
