Search › Model › RZJ90

RZJ90

Toyota LAND-CRUISER-PRADO · 1996 · 4,382 parts · 246 categories

4,382 items

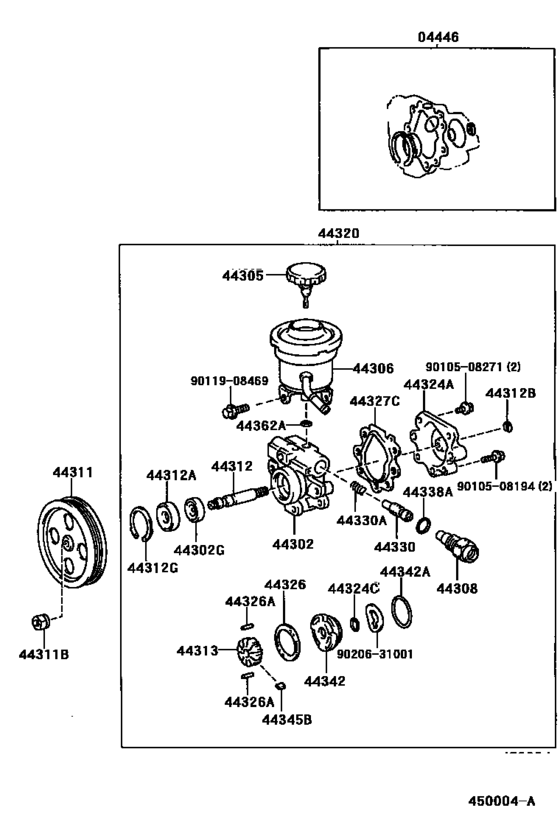

Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#) 52

#	OEM	Part name
4446	04446-30120	Gasket Kit, Power Steering Pump
4446	04446-60210	Gasket Kit, Power Steering Pump
44302	44302-34010	Housing Sub-Assy, Vane Pump, Front
44302	90311-17007	Seal, Oil, No.2(For Vane Pump Housing)
44302	90311-17011	Seal, Oil, No.2(For Vane Pump Housing)
44305	44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir
44306	44306-35250	Reservoir Sub-Assy, Vane Pump Oil
44308	44308-60060	Union Sub-Assy, Pressure Port
44311	44311-34020	Pulley, Vane Pump
44311	90178-12003	Nut(For Vane Pump Pulley)
44312	44312-26020	Shaft, Vane Pump
44312	90363-17013	Bearing(For Vane Pump Shaft)
44312	90520-15005	Ring, Snap, No.1(For Vane Pump Shaft)
44312	90521-44002	Ring, Hole Snap(For Power Steering Gear Housing)
44312	90363-17008	Bearing(For Vane Pump Shaft)
44313	44313-26060	Rotor, Vane Pump
44313	44313-26070	Rotor, Vane Pump
44313	44313-26080	Rotor, Vane Pump
44313	44313-26090	Rotor, Vane Pump
44313	44313-26100	Rotor, Vane Pump
44320	44320-60260	Pump Assy, Vane
44324	44324-34010	Housing, Pump, Rear
44324	90301-18007	Ring, O(For Pump Housing Rear)
44326	44325-32270	Ring, Cam(For Vane Pump)
44326	44325-32280	Ring, Cam(For Vane Pump)
44326	44325-32290	Ring, Cam(For Vane Pump)
44326	44325-32300	Ring, Cam(For Vane Pump)
44326	44325-32310	Ring, Cam(For Vane Pump)
44326	90250-04071	Pin, Straight(For Vane Pump Cam Ring)
44327	44327-26010	Gasket, Vane Pump Housing
44330	44330-26071	Valve Assy, Flow Control
44330	44330-26081	Valve Assy, Flow Control
44330	44330-26091	Valve Assy, Flow Control
44330	44330-26101	Valve Assy, Flow Control
44330	44330-26111	Valve Assy, Flow Control
44330	44330-26121	Valve Assy, Flow Control
44330	90501-13034	Spring, Compression(For Flow Control Valve)
44338	90301-19018	Ring, O(For Pressure Port Union)
44338	90301-19013	Seal, Oil, No.1(For Vane Pump Housing)
44342	44342-26020	Plate, Vane Pump Side, Rear
44342	90301-47001	Ring, O(For Vane Pump Side Plate Rear)
44345	44345-26010	Plate, Vane Pump
44345	44345-26020	Plate, Vane Pump
44345	44345-26030	Plate, Vane Pump
44345	44345-26040	Plate, Vane Pump
44345	44345-26050	Plate, Vane Pump
44362	90301-11016	Ring, O(For Power Steering Suction Port)
9010508194	90105-08194	New Genuine Part
9010508271	90105-08271	Bolt
9011908469	90119-08469	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9020631001	90206-31001	WASHER WAVE

OEM	Part name	Category
04446-30120	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
04446-60210	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44302-34010	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44306-35250	Reservoir Sub-Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44308-60060	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44311-34020	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44312-26020	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44313-26060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44313-26070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44313-26080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44313-26090	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44313-26100	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44320-60260	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44324-34010	Housing, Pump, Rear	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44325-32270	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44325-32280	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44325-32290	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44325-32300	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44325-32310	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44327-26010	Gasket, Vane Pump Housing	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44330-26071	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44330-26081	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44330-26091	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44330-26101	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44330-26111	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44330-26121	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44342-26020	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44345-26010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44345-26020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44345-26030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44345-26040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
44345-26050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90105-08194	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90105-08271	Bolt	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90119-08469	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90178-12003	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90206-31001	WASHER WAVE	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90250-04071	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90301-18007	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90301-19013	Seal, Oil, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90301-47001	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90311-17007	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90311-17011	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90363-17008	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90363-17013	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90501-13034	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90520-15005	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
90521-44002	Ring, Hole Snap(For Power Steering Gear Housing)	Vane Pump & Reservoir (Power Steering) ([04.1996 - ] (9604- )RZJ9#)
