Search › Model › RZH119

RZH119

Toyota HIACE · 1989 · 5,516 parts · 207 categories

5,516 items

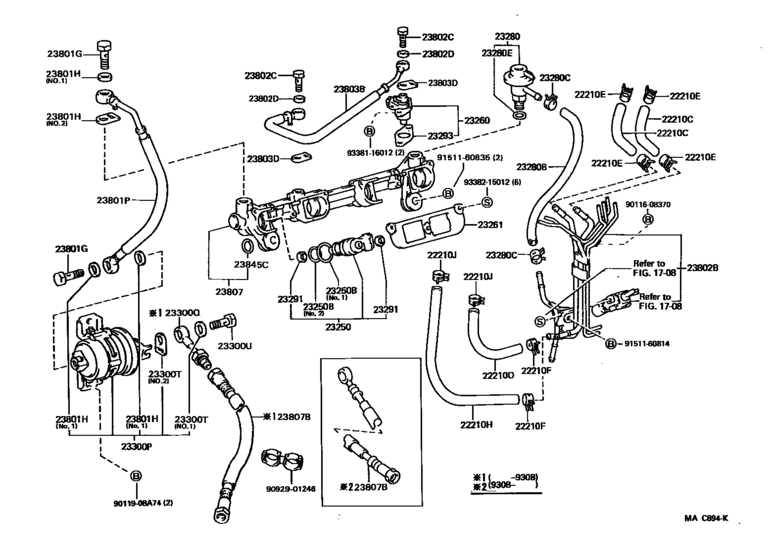

Fuel Injection System ([08.1989 - ] (8908- )2RZE) 92

#	OEM	Part name
22203	22202-75010	Dash Pot Sub-Assy(For Throttle Body)
22210	16261-75030	Hose, Water By-Pass, No.1
22210	99555-10140	Hose, Water(For Water Outlet To Carburetor)
22210	99555-10200	Hose, Water By-Pass
22210	96135-41300	Clamp Or Clip, Hose(For Water By-Pass Hose)
22210	96135-51300	Clamp, Hose
22210	99555-10250	Hose, Intake Manifold Water, No.1
22210	99555-10500	Hose, Water, No.1
22210	99555-10260	Hose, Intake Manifold Water, No.1
22210	22210-75030	Body Assy, Throttle
22210	22210-75031	Body Assy, Throttle
22216	22216-65030	Screw, Dash Pot Adjusting
22216	22216-73020	Screw, Dash Pot Adjusting
22216	22216-74010	Screw, Dash Pot Adjusting
22271	22271-75010	Gasket, Throttle Body
23091	23091-75010	Tube Sub-Assy, Fuel Pump
23091	90923-01379	Tube Sub-Assy, Fuel Pump
23206	23206-75010	Bracket, Fuel Pump
23206	23206-75011	Bracket, Fuel Pump
23206	23206-75012	Bracket, Fuel Pump
23206	77169-32010	Gasket, Fuel Pump Bracket
23217	23217-16030	Filter, Fuel Pump
23220	23220-43070	Pump Assy, Fuel
23229	23229-16010	Clip(For Fuel Pump Filter)
23229	23219-03010	Clip(For Fuel Pump Filter)
23233	23239-11010	Hose, Fuel Pump
23233	23239-63010	Hose, Fuel Pump
23233	90467-12067	Clip(For Fuel Pump Hose)
23233	90467-13054	Clamp Or Clip, Hose(For Water By-Pass Hose)
23249	23249-74150	Rubber, Cushion(For Fuel Pump)
23250	23209-79035	Injector Assy, Fuel
23250	90301-14006	Ring, O(For Fuel Injector)
23250	90301-17007	Ring, O(For Fuel Injector)
23260	23260-79185	Injector Assy, Cold Start Fuel
23260	23260-79186	Injector Assy, Cold Start Fuel
23261	23261-75010	Cover, Injector
23261	23261-75020	Cover, Injector
23280	23280-75010	Regulator Assy, Fuel Pressure
23280	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
23280	95337-06020	Hose, Differential Pressure Control
23280	96135-41100	Clamp Or Clip, Hose(For Water By-Pass Pipe)
23280	96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)
23280	90301-09002	Ring, O(For Fuel Pressure Regulator)
23291	23291-75010	Insulator, Injector Vibration
23291	23291-75020	Insulator, Injector Vibration
23293	23293-75010	Gasket, Cold Start Injector
23300	23300-79255	Filter, Fuel(For Efi)
23300	23300-79505	Filter, Fuel(For Efi)
23300	90404-14015	Union(For Fuel Filter)
23300	90430-12005	Gasket(For Water Hole)
23300	90430-12017	Gasket(For Fuel Filter)
23300	90430-12026	Gasket
23300	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
23801	23801-75010	Pipe Sub-Assy, Fuel, No.1
23801	23801-75050	Pipe Sub-Assy, Fuel, No.1
23802	23802-75020	Pipe Sub-Assy, Fuel, No.2
23802	23802-75021	Pipe Sub-Assy, Fuel, No.2
23802	90401-08003	Bolt, Union
23802	90401-08004	Bolt Union(For Oil Jet)
23802	90430-08009	Gasket
23802	90430-08014	Gasket(For Oil Filter Outlet Pipe)
23803	23803-75010	Pipe Sub-Assy, Fuel, No.3
23803	23803-75011	Pipe Sub-Assy, Fuel, No.3
23803	90430-08011	Gasket
23803	90430-08015	Gasket
23807	23807-75010	Pipe Sub-Assy, Fuel Delivery
23807	23271-75010	Hose, Fuel Delivery Pipe
23807	23906-75030	Hose, Fuel Delivery Pipe
23845	23845-75010	Insulator, Fuel Pipe
91611	91611-A0612	New Genuine Part
92122	92122-B0825	Bolt, Stud(For Water Outlet Setting)
9011908	90119-08A74	New Genuine Part
9011908	91641-K0816	BOLT WWASHER
2182138310	21821-38310	Screw, 2Nd Throttle Valve Set
9009992002	90099-92002	Hose, Vacuum (For Idle Up Device), No.1
9011608370	90116-08370	BOLT STUD
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9017908234	90179-08234	NUT
9092901246	90929-01246	Clamp
9151160814	91511-60814	New Genuine Part
9151160814	91511-B0814	BOLT
9151160835	91511-60835	Bolt(For Cylinder Head Set Sub)
9151160835	90105-08200	Bolt(For Cylinder Head Set Sub)
9331514010	93315-14010	SCREW
9338116012	93381-16012	Screw
9338215012	93382-15012	New Genuine Part
9411540400	94115-40400	NUT
9411540400	90076-01001	NUT
9411540500	94115-40500	Nut(For Lpg Filter Stud Bolt Set)
9451100400	94511-00400	WASHERSPRING
9451100500	94511-00500	Washer, Cover Set, No.2

OEM	Part name	Category
16261-75030	Hose, Water By-Pass, No.1	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
21821-38310	Screw, 2Nd Throttle Valve Set	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
22202-75010	Dash Pot Sub-Assy(For Throttle Body)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
22210-75030	Body Assy, Throttle	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
22210-75031	Body Assy, Throttle	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
22216-65030	Screw, Dash Pot Adjusting	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
22216-73020	Screw, Dash Pot Adjusting	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
22216-74010	Screw, Dash Pot Adjusting	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
22271-75010	Gasket, Throttle Body	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23091-75010	Tube Sub-Assy, Fuel Pump	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23206-75010	Bracket, Fuel Pump	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23206-75011	Bracket, Fuel Pump	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23206-75012	Bracket, Fuel Pump	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23209-79035	Injector Assy, Fuel	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23217-16030	Filter, Fuel Pump	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23219-03010	Clip(For Fuel Pump Filter)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23220-43070	Pump Assy, Fuel	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23229-16010	Clip(For Fuel Pump Filter)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23239-11010	Hose, Fuel Pump	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23239-63010	Hose, Fuel Pump	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23249-74150	Rubber, Cushion(For Fuel Pump)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23260-79185	Injector Assy, Cold Start Fuel	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23260-79186	Injector Assy, Cold Start Fuel	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23261-75010	Cover, Injector	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23261-75020	Cover, Injector	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23271-75010	Hose, Fuel Delivery Pipe	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23280-75010	Regulator Assy, Fuel Pressure	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23291-75010	Insulator, Injector Vibration	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23291-75020	Insulator, Injector Vibration	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23293-75010	Gasket, Cold Start Injector	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23300-79255	Filter, Fuel(For Efi)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23300-79505	Filter, Fuel(For Efi)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23801-75010	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23801-75050	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23802-75020	Pipe Sub-Assy, Fuel, No.2	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23802-75021	Pipe Sub-Assy, Fuel, No.2	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23803-75010	Pipe Sub-Assy, Fuel, No.3	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23803-75011	Pipe Sub-Assy, Fuel, No.3	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23807-75010	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23845-75010	Insulator, Fuel Pipe	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
23906-75030	Hose, Fuel Delivery Pipe	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
77169-32010	Gasket, Fuel Pump Bracket	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90076-01001	NUT	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90099-92002	Hose, Vacuum (For Idle Up Device), No.1	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90105-08200	Bolt(For Cylinder Head Set Sub)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90116-08370	BOLT STUD	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90119-08A74	New Genuine Part	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90159-50219	BOLT	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90159-A0057	New Genuine Part	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90179-08234	NUT	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90301-09002	Ring, O(For Fuel Pressure Regulator)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90301-14006	Ring, O(For Fuel Injector)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90301-17007	Ring, O(For Fuel Injector)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90401-08003	Bolt, Union	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90401-08004	Bolt Union(For Oil Jet)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90404-14015	Union(For Fuel Filter)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90430-08009	Gasket	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90430-08011	Gasket	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90430-08014	Gasket(For Oil Filter Outlet Pipe)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90430-08015	Gasket	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90430-12005	Gasket(For Water Hole)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90430-12017	Gasket(For Fuel Filter)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90430-12026	Gasket	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90467-12067	Clip(For Fuel Pump Hose)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90467-13054	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90923-01379	Tube Sub-Assy, Fuel Pump	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
90929-01246	Clamp	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
91511-60814	New Genuine Part	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
91511-60835	Bolt(For Cylinder Head Set Sub)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
91511-B0814	BOLT	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
91611-A0612	New Genuine Part	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
91641-K0816	BOLT WWASHER	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
92122-B0825	Bolt, Stud(For Water Outlet Setting)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
93315-14010	SCREW	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
93381-16012	Screw	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
93382-15012	New Genuine Part	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
94115-40400	NUT	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
94115-40500	Nut(For Lpg Filter Stud Bolt Set)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
94511-00400	WASHERSPRING	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
94511-00500	Washer, Cover Set, No.2	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
95337-06020	Hose, Differential Pressure Control	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
96135-41100	Clamp Or Clip, Hose(For Water By-Pass Pipe)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
96135-41300	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
96135-51300	Clamp, Hose	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
99555-10140	Hose, Water(For Water Outlet To Carburetor)	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
99555-10200	Hose, Water By-Pass	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
99555-10250	Hose, Intake Manifold Water, No.1	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
99555-10260	Hose, Intake Manifold Water, No.1	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
99555-10500	Hose, Water, No.1	Fuel Injection System ([08.1989 - ] (8908- )2RZE)
