RZH109

Toyota HIACE · 1989 · 5,202 parts · 207 categories

← Back to categories

5,202 items

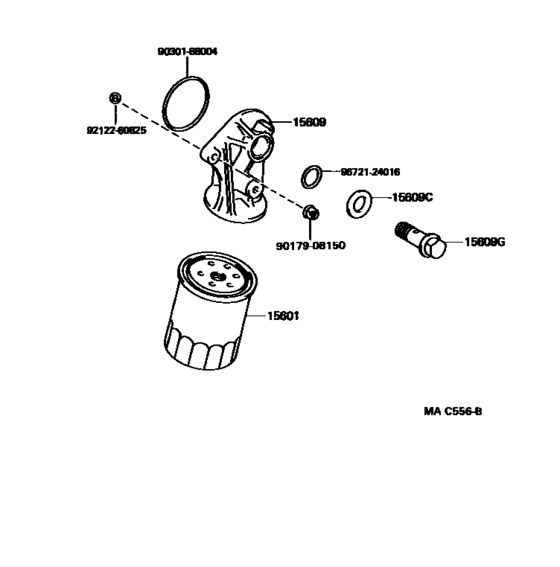

Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE) 13

#	OEM	Part name
15601	15600-25010	Filter Sub-Assy, Oil
15601	90915-20003	Oil Filter Sub-Assy (THAILAND) - MADE IN THAILAND
15601	90915-20001	Filter Sub-Assy, Oil
15609	15609-75010	Bracket Sub-Assy, Oil Filter
15609	15609-75050	Bracket Sub-Assy, Oil Filter
15609	90404-19015	Union(For Oil Filter)
15609	90430-28004	Gasket(For Oil Filter Bracket Union)
15609	90401-19005	Bolt, Union(For Oil Filter Bracket)
9017908150	90179-08150	NUT
9030168004	90301-68004	Gasket, Oil Filter Bracket
9030168004	90301-68005	Ring, O(For Oil Filter Bracket)
9212260825	92122-60825	Bolt, Stud(For Manifold To Carburetor)
9672124016	96721-24016	Ring, O(For Oil Strainer)

OEM	Part name	Category
15600-25010	Filter Sub-Assy, Oil	Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE)
15609-75010	Bracket Sub-Assy, Oil Filter	Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE)
15609-75050	Bracket Sub-Assy, Oil Filter	Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE)
90179-08150	NUT	Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE)
90301-68004	Gasket, Oil Filter Bracket	Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE)
90301-68005	Ring, O(For Oil Filter Bracket)	Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE)
90401-19005	Bolt, Union(For Oil Filter Bracket)	Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE)
90404-19015	Union(For Oil Filter)	Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE)
90430-28004	Gasket(For Oil Filter Bracket Union)	Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE)
90915-20001	Filter Sub-Assy, Oil	Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE)
90915-20003	Oil Filter Sub-Assy (THAILAND) - MADE IN THAILAND	Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE)
92122-60825	Bolt, Stud(For Manifold To Carburetor)	Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE)
96721-24016	Ring, O(For Oil Strainer)	Oil Filter ([08.1989 - ] (8908- )1RZ,2RZE)
