Search › Model › RZH109

RZH109

Toyota HIACE · 1989 · 5,202 parts · 207 categories

5,202 items

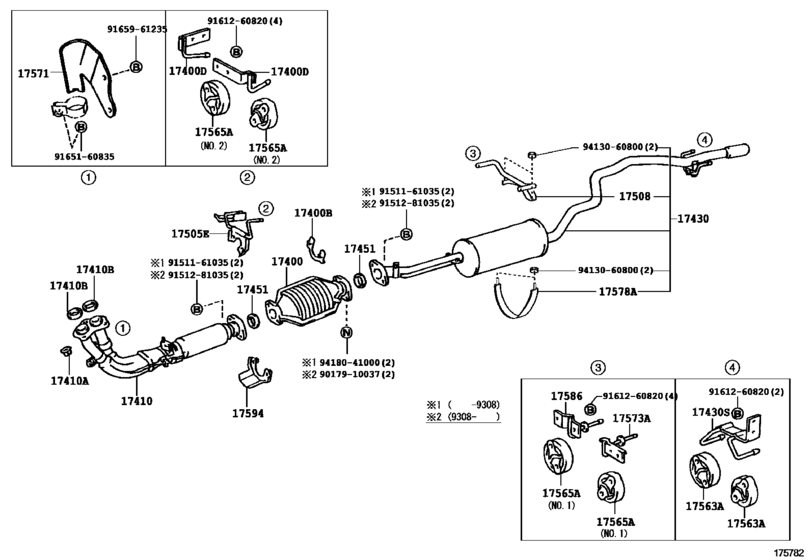

Exhaust Pipe ([08.1989 - ] (8908- )2RZE) 44

#	OEM	Part name
17400	18450-75030	Converter Assy, W/catalyst
17400	18495-71010	Retainer, Exhaust Pipe
17400	17587-75011	Bracket, Catalytic Converter Support
17400	17588-75011	Bracket, Catalytic Converter Support
17400	18450-35130	Converter Assy, W/catalyst
17400	17587-75010	Bracket, Catalytic Converter Support
17410	17410-75040	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06038	Gasket, Exhaust Pipe
17410	90917-06064	Gasket, Exhaust Pipe
17430	17430-75131	Pipe Assy, Exhaust, Tail
17430	17574-75010	Bracket, Exhaust Tail Pipe (For Rear)
17430	17430-75130	Pipe Assy, Exhaust, Tail
17451	90917-06041	Gasket, Exhaust Pipe
17451	90917-06045	Gasket, Exhaust Pipe
17451	90080-43028	Gasket, Exhaust Pipe
17451	90917-06023	Gasket, Exhaust Pipe
17451	90917-06047	Gasket, Exhaust Pipe
17505	17505-75020	Support Sub-Assy, Catalytic Converter
17508	17508-75020	Support Sub-Assy, Exhaust Pipe, No.3
17563	17565-63020	Ring, Catalytic Converter
17563	17563-35020	Bolt Or Ring, Exhaust Tail Pipe (For Front)
17565	17565-16080	Bolt Or Ring, Exhaust Tail Pipe (For Rear)
17565	17565-15010	Bolt Or Ring, Exhaust Pipe Front (For Center)
17571	17571-75010	Bracket, Exhaust Pipe Support, No.1
17573	17573-75010	Bracket, Exhaust Pipe Support, No.3
17573	17573-75011	Bracket, Exhaust Pipe Support, No.3
17578	17578-75040	Clamp, Muffler
17586	17586-75010	Bracket, Heat Insulator, No.1
17594	17594-75020	Protector, Exhaust Pipe, No.2
9017910037	90179-10037	NUT
9017910037	90179-10128	NUT
9151161035	91511-61035	Bolt(For Transaxle Case & Engine Setting)
9151161035	91512-61035	Bolt(For Transaxle Case & Engine Setting)
9151281035	91512-81035	BOLT
9161260820	91612-60820	Bolt(For Clutch Release Cylinder Setting)
9161260820	91611-G0820	Bolt
9165160835	91651-60835	Bolt(For Front Suspension Control Accumulator)
9165961235	91659-61235	New Genuine Part
9165961235	91512-61235	BOLT FLANGE
9413060800	94130-60800	Nut(For Clutch Pedal Stopper)
9413060800	90170-A0003	New Genuine Part
9418041000	94180-41000	Nut

OEM	Part name	Category
17410-75040	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17430-75130	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17430-75131	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17505-75020	Support Sub-Assy, Catalytic Converter	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17508-75020	Support Sub-Assy, Exhaust Pipe, No.3	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17563-35020	Bolt Or Ring, Exhaust Tail Pipe (For Front)	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17565-15010	Bolt Or Ring, Exhaust Pipe Front (For Center)	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17565-16080	Bolt Or Ring, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17565-63020	Ring, Catalytic Converter	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17571-75010	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17573-75010	Bracket, Exhaust Pipe Support, No.3	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17573-75011	Bracket, Exhaust Pipe Support, No.3	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17574-75010	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17578-75040	Clamp, Muffler	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17586-75010	Bracket, Heat Insulator, No.1	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17587-75010	Bracket, Catalytic Converter Support	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17587-75011	Bracket, Catalytic Converter Support	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17588-75011	Bracket, Catalytic Converter Support	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
17594-75020	Protector, Exhaust Pipe, No.2	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
18450-35130	Converter Assy, W/catalyst	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
18450-75030	Converter Assy, W/catalyst	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
18495-71010	Retainer, Exhaust Pipe	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
90080-43028	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
90170-A0003	New Genuine Part	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
90179-10037	NUT	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
90179-10128	NUT	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
90917-06023	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
90917-06038	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
90917-06041	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
90917-06045	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
90917-06047	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
90917-06064	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
91511-61035	Bolt(For Transaxle Case & Engine Setting)	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
91512-61035	Bolt(For Transaxle Case & Engine Setting)	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
91512-61235	BOLT FLANGE	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
91512-81035	BOLT	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
91611-G0820	Bolt	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
91612-60820	Bolt(For Clutch Release Cylinder Setting)	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
91651-60835	Bolt(For Front Suspension Control Accumulator)	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
91659-61235	New Genuine Part	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
94130-60800	Nut(For Clutch Pedal Stopper)	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
94180-41000	Nut	Exhaust Pipe ([08.1989 - ] (8908- )2RZE)
