Search › Model › RZF84

RZF84

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2000 · 3,823 parts · 217 categories

3,823 items

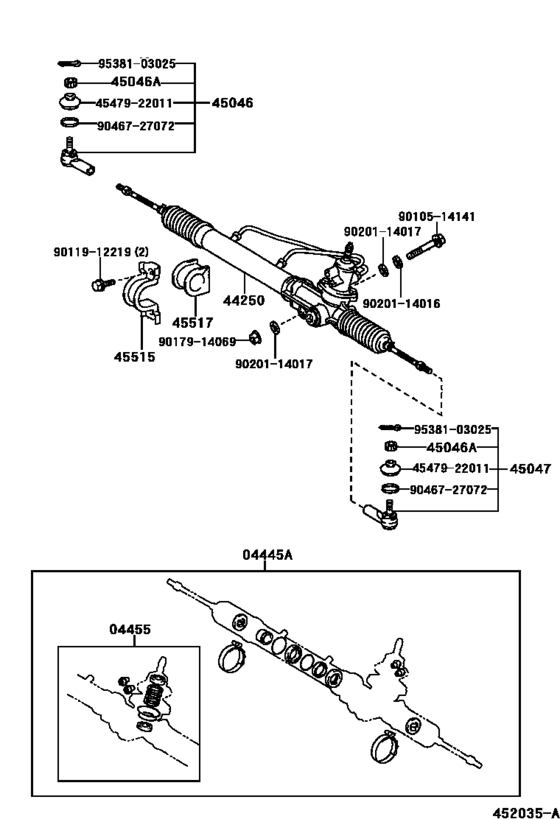

Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD) 56

#	OEM	Part name
4445	04445-0B010	Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455	04455-27030	Gasket Kit, Power Steering Control Valve Overhole
4455	04455-60050	Gasket Kit, Power Steering Control Valve Overhole
44015	44015-22020	Nut Sub-Assy, Bearing Guide
44015	90301-43002	Ring, O(For Bearing Guide Nut)
44015	90310-25004	Seal, Oil(For Bearing Guide Nut)
44201	44201-38060	Valve Sub-Assy, Power Steering Control
44201	90562-33007	Ring(For Power Steering Control Valve)
44201	90364-13003	Bearing(For Power Steering Control Valve Lower)
44203	44203-38050	Housing Sub-Assy, Power Steering Rack
44204	44204-38070	Rack Sub-Assy, Power Steering
44204	90301-37007	Ring(For Rack Steering Piston)
44204	90562-41001	Ring(For Rack Steering Piston)
44206	90080-31054	Seal, Oil, No.2(For Power Steering Cylinder Tube)
44210	44210-38070	Valve Assy, Power Steering Control
44210	90410-06005	Seat, Union(Pressure Control Valve Assy)
44210	90301-51001	Ring, O(For Adjuster Plug)
44210	90311-19002	Seal, Oil(For Adjuster Plug)
44210	90363-19003	Bearing(For Rear Steering Control Valve Housing)
44211	44211-27020	Housing, Control Valve
44240	44240-0B040	Housing Assy, Power Steering Rack
44250	44250-0B040	Gear Assy, Power Steering(For Rack & Pinion)
44267	44267-22020	Guide, Rack End
44275	44275-22020	Stopper, Cylinder End
44275	90301-40004	Ring, O(For Rack End Guide)
44418	44418-0B050	Tube, Steering Right Turn Pressure
44418	44418-38070	Tube, Steering Right Turn Pressure
44418	90410-04002	Seat, Union(For Power Steering Rack Housing)
44419	44419-0B050	Tube, Steering Left Turn Pressure
44419	44419-38070	Tube, Steering Left Turn Pressure
45046	45046-39405	End Sub-Assy, Tie Rod, Rh
45046	90171-12028	Nut, Castle(For Pitman Arm)
45047	45047-39245	End Sub-Assy, Tie Rod, Lh
45222	45222-0B010	Cover, Steering Gear Dust
45503	45503-09180	End Sub-Assy, Steering Rack
45503	90080-21015	Washer, Claw(For Steering Rack End)
45504	45504-51010	Guide Sub-Assy, Rack
45515	45515-0B020	Bracket, Steering Rack Housing, No.2
45516	45516-28040	Grommet, Steering Rack Housing, No.1
45517	45517-0B040	Grommet, Steering Rack Housing, No.2
45523	90501-29044	Spring(For Power Steering Rack Guide)
45524	45524-20040	Cap, Rack Guide Spring(For Power Steering)
45535	45535-22080	Boot, Steering Rack, No.1
45535	90467-19019	Clip
45535	90460-49004	Clamp(For Steering Rack Boot No.1)
91511	91511-B0825	Bolt (For Transfer Stiffener Plate)
4547922011	45479-22011	Seal, Dust(For Tie Rod End)
9010514141	90105-14141	New Genuine Part
9011912219	90119-12219	New Genuine Part
9017014012	90170-14012	Nut, Rack End Lock
9017914069	90179-14069	Nut
9017936002	90179-36002	Nut(For Power Steering Pinion Cap)
9020114016	90201-14016	WASHER
9020114017	90201-14017	Washer(For Rear Suspension Arm)
9046727072	90467-27072	Ring, Set(For Tie Rod End Dust Seal)
9538103025	95381-03025	PIN

OEM	Part name	Category
04445-0B010	Gasket Kit, Power Steering Gear(For Rack & Pinion)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
04455-27030	Gasket Kit, Power Steering Control Valve Overhole	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
04455-60050	Gasket Kit, Power Steering Control Valve Overhole	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44015-22020	Nut Sub-Assy, Bearing Guide	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44201-38060	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44203-38050	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44204-38070	Rack Sub-Assy, Power Steering	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44210-38070	Valve Assy, Power Steering Control	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44211-27020	Housing, Control Valve	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44240-0B040	Housing Assy, Power Steering Rack	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44250-0B040	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44267-22020	Guide, Rack End	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44275-22020	Stopper, Cylinder End	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44418-0B050	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44418-38070	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44419-0B050	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
44419-38070	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
45046-39405	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
45047-39245	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
45222-0B010	Cover, Steering Gear Dust	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
45479-22011	Seal, Dust(For Tie Rod End)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
45503-09180	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
45504-51010	Guide Sub-Assy, Rack	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
45515-0B020	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
45516-28040	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
45517-0B040	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
45524-20040	Cap, Rack Guide Spring(For Power Steering)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
45535-22080	Boot, Steering Rack, No.1	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90080-21015	Washer, Claw(For Steering Rack End)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90080-31054	Seal, Oil, No.2(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90105-14141	New Genuine Part	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90119-12219	New Genuine Part	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90170-14012	Nut, Rack End Lock	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90179-14069	Nut	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90179-36002	Nut(For Power Steering Pinion Cap)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90201-14016	WASHER	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90201-14017	Washer(For Rear Suspension Arm)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90301-37007	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90301-40004	Ring, O(For Rack End Guide)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90301-43002	Ring, O(For Bearing Guide Nut)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90301-51001	Ring, O(For Adjuster Plug)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90310-25004	Seal, Oil(For Bearing Guide Nut)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90311-19002	Seal, Oil(For Adjuster Plug)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90363-19003	Bearing(For Rear Steering Control Valve Housing)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90364-13003	Bearing(For Power Steering Control Valve Lower)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90410-04002	Seat, Union(For Power Steering Rack Housing)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90410-06005	Seat, Union(Pressure Control Valve Assy)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90460-49004	Clamp(For Steering Rack Boot No.1)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90467-19019	Clip	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90467-27072	Ring, Set(For Tie Rod End Dust Seal)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90501-29044	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90562-33007	Ring(For Power Steering Control Valve)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
90562-41001	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
91511-B0825	Bolt (For Transfer Stiffener Plate)	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
95381-03025	PIN	Front Steering Gear & Link ([11.1999 - ] POWER STEERING (9911- )RZF84,85..LHD ; (0104- )LF85..LHD)
