RZF84

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2000 · 3,823 parts · 217 categories
RZF84 ×

← Back to categories

3,823 items

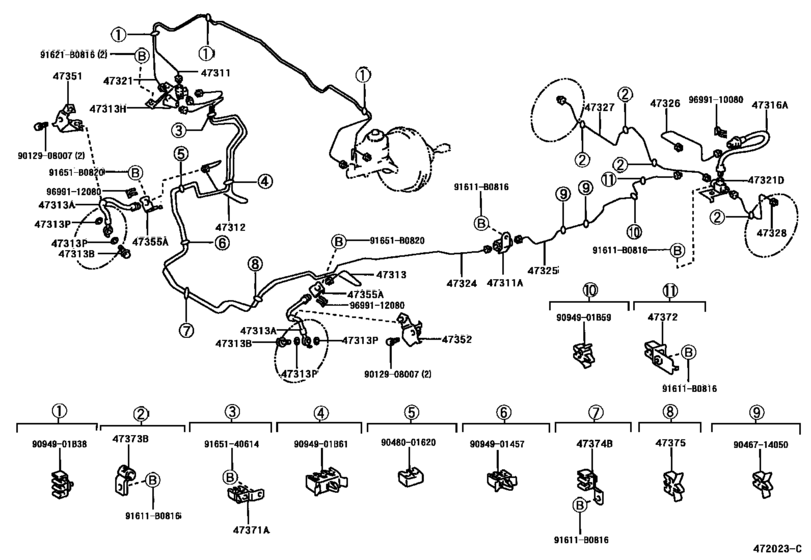

Brake Tube & Clamp ([03.2000 - ] (0003- )RZF84) 38
#OEMPart name
47311 47311-0B120 Tube, Front Brake, No.1
47311 90412-10165 Way, No.1(For Front Brake Tube)
47312 47312-0B080 Tube, Front Brake, No.2
47313 47313-0B130 Tube, Front Brake, No.3
47313 90947-02A56 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 90904-13066 Way, No.3(For Front Brake Tube)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47316 90947-02960 Hose, Flexible(For Rear Brake Tube)
47316 90947-02A95 Hose, Flexible(For Rear Brake Tube)
47321 47321-0B140 Tube, Rear Brake, No.1
47321 90413-10288 Way, No.1(For Rear Brake Tube)
47324 47324-0B122 Tube, Rear Brake, No.4
47325 47325-0B092 Tube, Rear Brake, No.5
47326 47326-0B081 Tube, Rear Brake, No.6
47327 47327-0B032 Tube, Rear Brake, No.7
47328 47328-0B031 Tube, Rear Brake, No.8
47351 47351-28131 Bracket, Flexible Hose(For Front Rh)
47352 47352-28121 Bracket, Flexible Hose(For Front Lh)
47355 47355-38010 Bracket, Flexible Hose, No.5
47371 47371-38030 Clamp, Brake Tube, No.1
47372 47371-38010 Clamp, Brake Tube, No.2
47373 90461-10185 Clamp, Brake Tube, No.3
47374 47371-38060 Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.4
47375 90949-01457 Clamp, Brake Tube, No.5
91611 91611-B0816 Bolt
91621 91621-B0816 BOLT WWASHER
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9094901 90949-01B38 New Genuine Part
9094901 90949-01B59 Clamp, Height Control Tube, No.2
9094901 90949-01B61 Clamp, Brake Tube, No.7
9012908007 90129-08007 New Genuine Part
9046714050 90467-14050 New Genuine Part
9048001620 90480-01620 Grommet, No.1(For Front Brake Tube)
9165140614 91651-40614 Bolt
9699110080 96991-10080 CLIP
9699112080 96991-12080 Clip
