RZF84

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2000 · 3,823 parts · 217 categories

← Back to categories

3,823 items

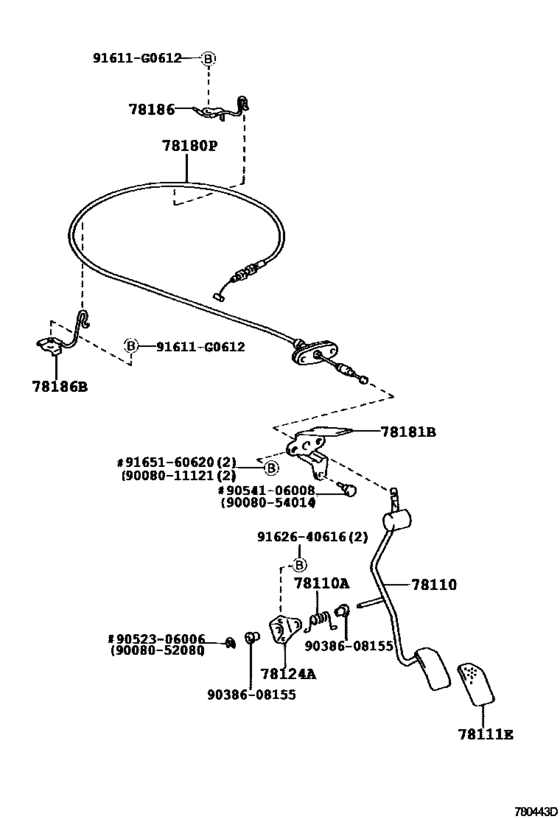

Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD) 17

#	OEM	Part name
78110	78102-0B080	Rod Assy, Accelerator Pedal
78110	90959-03214	Spring (For Accelerator Pedal Rod)
78111	78111-0B010	Pad, Accelerator Pedal
78124	78124-0B080	Bracket, Accelerator Pedal Rod
78180	78180-38080	Cable Assy, Accelerator Control
78181	78181-38010	Stopper, Accelerator Idle Adjusting
78186	78186-38130	Support, Accelerator Control Cable, No.1
78186	78186-38140	Support, Accelerator Control Cable No.2
91611	91611-G0612	Bolt
9008011121	90080-11121	New Genuine Part
9008052080	90080-52080	New Genuine Part
9008054014	90080-54014	Cushion(For Stop Lamp Switch)
9038608155	90386-08155	Bush (For Accelerator Pedal Rod)
9052306006	90523-06006	New Genuine Part
9054106008	90541-06008	Cushion, No.1(For Clutch Pedal)
9162640616	91626-40616	New Genuine Part
9165160620	91651-60620	BOLTWWASHER

OEM	Part name	Category
78102-0B080	Rod Assy, Accelerator Pedal	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
78111-0B010	Pad, Accelerator Pedal	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
78124-0B080	Bracket, Accelerator Pedal Rod	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
78180-38080	Cable Assy, Accelerator Control	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
78181-38010	Stopper, Accelerator Idle Adjusting	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
78186-38130	Support, Accelerator Control Cable, No.1	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
78186-38140	Support, Accelerator Control Cable No.2	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
90080-11121	New Genuine Part	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
90080-52080	New Genuine Part	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
90080-54014	Cushion(For Stop Lamp Switch)	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
90386-08155	Bush (For Accelerator Pedal Rod)	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
90523-06006	New Genuine Part	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
90541-06008	Cushion, No.1(For Clutch Pedal)	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
90959-03214	Spring (For Accelerator Pedal Rod)	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
91611-G0612	Bolt	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
91626-40616	New Genuine Part	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
91651-60620	BOLTWWASHER	Accelerator Link ([11.1999 - ] (9911- )RZF84,85..LHD ; (0102- )RZF81,82.. 4FC..LHD)
