RY32

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 3,379 parts · 165 categories

← Back to categories

3,379 items

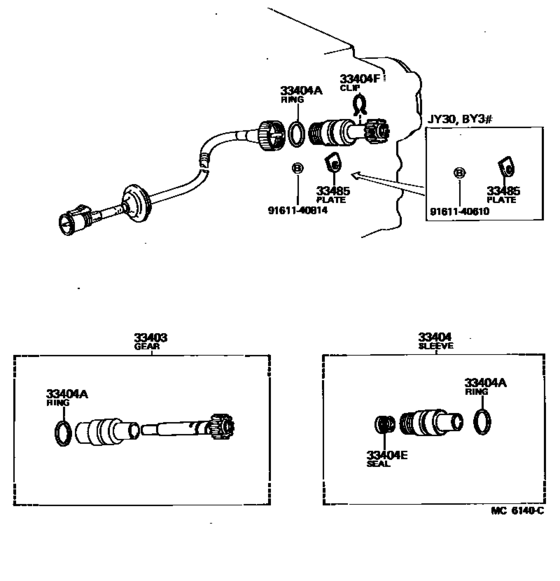

Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- )) 14

#	OEM	Part name
33403	33482-29025	Gear Sub-Assy, Speedometer Driven (Mtm)
33403	33482-29035	Gear Sub-Assy, Speedometer Driven (Mtm)
33403	33403-39016	Gear Sub-Assy, Speedometer Driven (Mtm)
33403	33482-39035	Gear Sub-Assy, Speedometer Driven (Mtm)
33404	33404-30040	Sleeve Sub-Assy, Speedometer Shaft (Mtm)
33404	33404-35010	Sleeve Sub-Assy, Speedometer Shaft (Mtm)
33404	90301-18018	Ring, O (For Atm Speedometer Driven Hole Cover)
33404	90310-09001	Seal, Oil (For Mtm Speedometer Shaft Sleeve)
33404	90468-12005	Clip (For Mtm Speedometer Shaft Sleeve)
33485	33485-30020	Plate, Speedometer Sleeve Lock (For Atm)
9161140610	91611-40610	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161140610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt

OEM	Part name	Category
33403-39016	Gear Sub-Assy, Speedometer Driven (Mtm)	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))
33404-30040	Sleeve Sub-Assy, Speedometer Shaft (Mtm)	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))
33404-35010	Sleeve Sub-Assy, Speedometer Shaft (Mtm)	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))
33482-29025	Gear Sub-Assy, Speedometer Driven (Mtm)	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))
33482-29035	Gear Sub-Assy, Speedometer Driven (Mtm)	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))
33482-39035	Gear Sub-Assy, Speedometer Driven (Mtm)	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))
33485-30020	Plate, Speedometer Sleeve Lock (For Atm)	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))
90301-18018	Ring, O (For Atm Speedometer Driven Hole Cover)	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))
90310-09001	Seal, Oil (For Mtm Speedometer Shaft Sleeve)	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))
90468-12005	Clip (For Mtm Speedometer Shaft Sleeve)	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))
91611-40610	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))
91611-60814	Bolt	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Speedometer Driven Gear (Mtm) ([03.1979 - ] (7903- ))

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 165
Collected: 2026-08-04
