RY32

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 3,379 parts · 165 categories

3,379 items

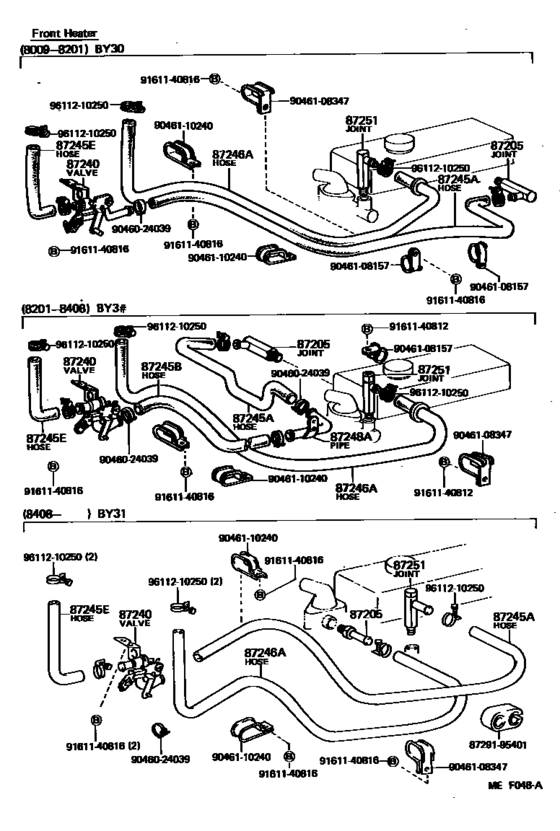

Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- )) 20

#	OEM	Part name
87205	87251-95400	Joint Or Union, Front Heater Hose Through Or Inlet Valve
87240	87240-95010	Valve Assy, Heater Water
87245	99552-32000	Hose, Heater Water, Inlet A
87245	99556-32000	Hose, Heater Water
87245	99556-31400	Hose, Heater Water, Inlet A
87245	87245-95010	Hose, Heater Water, Inlet E
87246	87245-95018	Hose, Heater Water, Outlet A
87248	87248-95010	Pipe, Heater Water Inlet, A
87251	87251-30200	Union(For Water By-Pass Hose)
8729195401	87291-95401	Stay, Heater
9046024039	90460-24039	Clamp Or Clip, Hose(For Oil Cooler Hose)
9046024039	90467-21010	Clip(For Ventilation Hose No.2)
9046108157	90461-08157	New Genuine Part
9046108347	90461-08347	New Genuine Part
9046110240	90461-10240	New Genuine Part
9161140812	91611-40812	Bolt(for Drive Plate & Torque Converter Setting)
9161140812	91611-B0812	Bolt
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9611210250	96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)

OEM	Part name	Category
87240-95010	Valve Assy, Heater Water	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
87245-95010	Hose, Heater Water, Inlet E	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
87245-95018	Hose, Heater Water, Outlet A	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
87248-95010	Pipe, Heater Water Inlet, A	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
87251-30200	Union(For Water By-Pass Hose)	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
87251-95400	Joint Or Union, Front Heater Hose Through Or Inlet Valve	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
87291-95401	Stay, Heater	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
90460-24039	Clamp Or Clip, Hose(For Oil Cooler Hose)	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
90461-08157	New Genuine Part	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
90461-08347	New Genuine Part	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
90461-10240	New Genuine Part	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
90467-21010	Clip(For Ventilation Hose No.2)	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
91611-40812	Bolt(for Drive Plate & Torque Converter Setting)	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
91611-B0812	Bolt	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
91611-B0816	Bolt	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
99552-32000	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
99556-31400	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
99556-32000	Hose, Heater Water	Heating & Air Conditioning - Water Piping ([09.1980 - ] (8009- ))
