Search › Model › RY32

RY32

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 3,379 parts · 165 categories

3,379 items

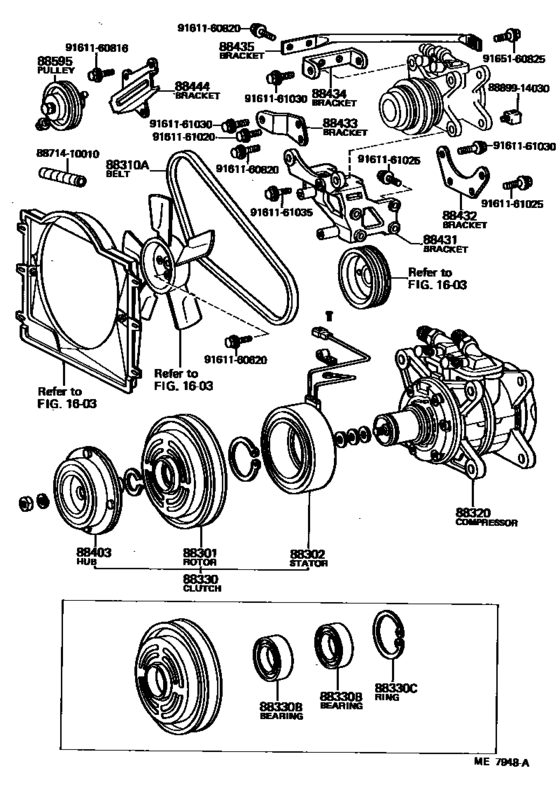

Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#) 34

#	OEM	Part name
88301	88412-14010	Rotor Sub-Assy, Magnet Clutch
88302	88411-14050	Stator Sub-Assy, Magnet Clutch
88310	99322-01050	Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
88320	88320-35040	Compressor Assy, Cooler
88330	88410-14090	Clutch Assy, Magnet
88330	90099-10133	Bearing, Ball(For Clutch Pully)
88330	90099-07114	Ring, Snap (For Magnet Clutch)
88403	88403-14030	Hub Sub-Assy, Magnet Clutch
88403	88403-12030	Hub Sub-Assy, Magnet Clutch
88431	88431-25030	Bracket, Compressor Mounting, No.1
88432	88437-25020	Bracket, Compressor Mounting, No.2
88433	88433-25020	Bracket, Compressor Mounting, No.2 - COMPRESSOR MOUNTING, NO.3
88434	88437-25010	Bracket, Compressor Mounting, No.4
88435	88433-25010	Bracket, Compressor Mounting, No.5
88444	88444-25010	Bracket, Idle Pulley
88595	88440-25010	Pulley, Cooler Compressor Idle
88595	88440-28050	Pulley, Cooler Compressor Idle
8871410010	88714-10010	Insulator(For Water By-Pass Hose)
8889914030	88899-14030	Cover, Evaporator
9161160620	91611-60620	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9161161025	91611-61025	Bolt(For Transaxle & Engine Setting)
9161161025	91612-61025	Bolt (For Control Shaft Cover)
9161161030	91611-61030	Bolt (For Transmission Control Cable Bracket)
9161161030	91612-61030	Bolt (For Transmission Control Cable Bracket)
9161161035	91611-61035	BOLT
9161161035	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9165160825	91651-60825	Bolt, Hexagon(For Steering Column Bracket)
9165160825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)

OEM	Part name	Category
88320-35040	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88403-12030	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88403-14030	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88410-14090	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88411-14050	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88412-14010	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88431-25030	Bracket, Compressor Mounting, No.1	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88433-25010	Bracket, Compressor Mounting, No.5	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88433-25020	Bracket, Compressor Mounting, No.2 - COMPRESSOR MOUNTING, NO.3	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88437-25010	Bracket, Compressor Mounting, No.4	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88437-25020	Bracket, Compressor Mounting, No.2	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88440-25010	Pulley, Cooler Compressor Idle	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88440-28050	Pulley, Cooler Compressor Idle	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88444-25010	Bracket, Idle Pulley	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88714-10010	Insulator(For Water By-Pass Hose)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
88899-14030	Cover, Evaporator	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
90099-07114	Ring, Snap (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
90099-10133	Bearing, Ball(For Clutch Pully)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91611-60620	Screw Or Bolt(For Valve Rocker Shaft Lock)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91611-60820	Bolt(For Transaxle & Engine Setting)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91611-61020	Bolt(For Transaxle & Engine Setting)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91611-61025	Bolt(For Transaxle & Engine Setting)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91611-61030	Bolt (For Transmission Control Cable Bracket)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91611-61035	BOLT	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91611-B0816	Bolt	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91611-G0820	Bolt	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91612-61025	Bolt (For Control Shaft Cover)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91612-61030	Bolt (For Transmission Control Cable Bracket)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91651-60825	Bolt, Hexagon(For Steering Column Bracket)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)
99322-01050	Belt, V (Cooler Compressor To Crankshaft Pulley), No.1	Heating & Air Conditioning - Compressor ([03.1979 - ] (7903- )RY3#)

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 165
Collected: 2026-08-04
