Search › Model › RY32

RY32

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 3,379 parts · 165 categories

3,379 items

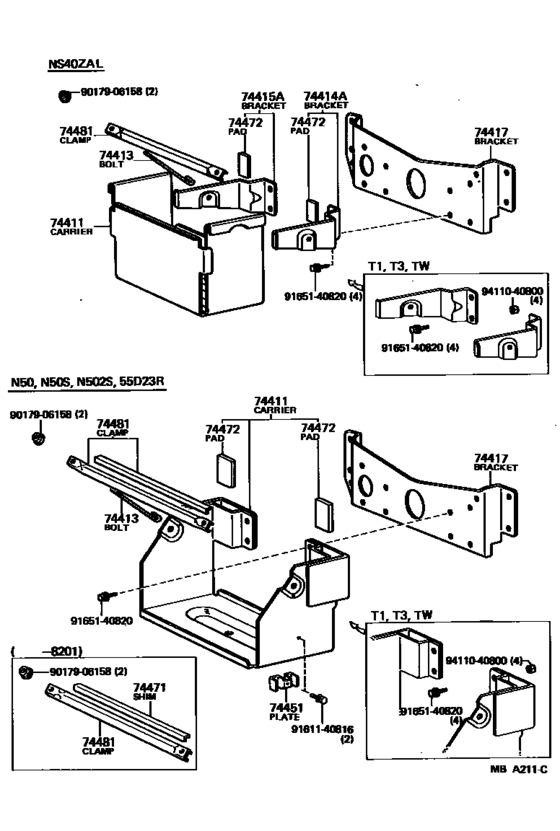

Battery Carrier ([03.1979 - ] (7903- )RY2#,3#) 31

#	OEM	Part name
74411	74421-25010	Carrier, Battery
74411	74421-25020	Carrier, Battery
74411	74421-26020	Hanger, Battery
74411	74421-36090	Carrier, Battery
74411	74408-36010	Clamp Sub-Assy, Battery Cover
74411	74421-36091	Carrier, Battery
74413	74451-25020	Bolt, Battery Clamp
74413	74451-25030	Bolt, Battery Clamp
74413	74451-36070	Bolt, Battery Clamp
74414	74411-25011	Bracket, Battery, Front
74414	74401-25070	Bracket, Battery, No.1
74414	74401-25071	Bracket, Battery, No.1
74415	74412-25011	Bracket, Battery, Rear
74415	74402-25070	Bracket, Battery, No.2
74415	74402-25071	Bracket, Battery, No.2
74417	74417-25011	Bracket, Battery Carrier
74451	74451-25060	Plate, Battery Carrier Support - BATTERY SET
74472	74472-25010	Pad, Battery Side
74472	74472-25020	Pad, Battery Side
74481	74404-25010	Clamp, Battery Hold Down
74481	74453-25090	Bar, Battery Set Plate
74481	74453-25020	Clamp, Battery Hold Down
74481	74453-25080	Bar, Battery Set Plate
74481	74404-25020	Clamp, Battery Hold Down
74481	74404-25021	Clamp, Battery Hold Down
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9165140820	91651-40820	Bolt
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)

OEM	Part name	Category
74401-25070	Bracket, Battery, No.1	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74401-25071	Bracket, Battery, No.1	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74402-25070	Bracket, Battery, No.2	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74402-25071	Bracket, Battery, No.2	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74404-25010	Clamp, Battery Hold Down	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74404-25020	Clamp, Battery Hold Down	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74404-25021	Clamp, Battery Hold Down	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74408-36010	Clamp Sub-Assy, Battery Cover	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74411-25011	Bracket, Battery, Front	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74412-25011	Bracket, Battery, Rear	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74417-25011	Bracket, Battery Carrier	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74421-25010	Carrier, Battery	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74421-25020	Carrier, Battery	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74421-26020	Hanger, Battery	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74421-36090	Carrier, Battery	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74421-36091	Carrier, Battery	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74451-25020	Bolt, Battery Clamp	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74451-25030	Bolt, Battery Clamp	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74451-25060	Plate, Battery Carrier Support - BATTERY SET	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74451-36070	Bolt, Battery Clamp	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74453-25020	Clamp, Battery Hold Down	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74453-25080	Bar, Battery Set Plate	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74453-25090	Bar, Battery Set Plate	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74472-25010	Pad, Battery Side	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
74472-25020	Pad, Battery Side	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
91611-B0816	Bolt	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
91651-40820	Bolt	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
94110-40800	Nut(For Steering Damper)	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
94130-00802	Nut, No.1 (For Center Support Bearing)	Battery Carrier ([03.1979 - ] (7903- )RY2#,3#)
