RY32

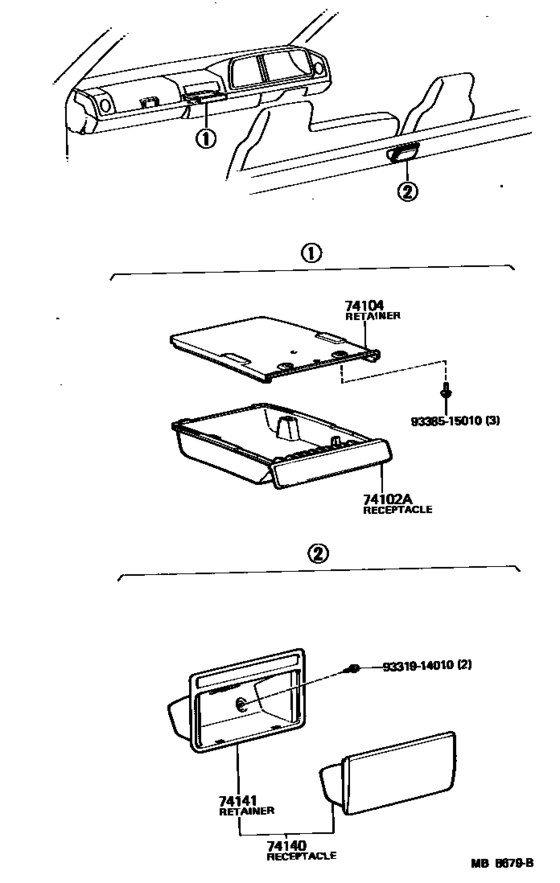

Ash Receptacle ([03.1979 - ] (7903- )) 7
| # | OEM | Part name |
|---|---|---|
| 74102 | 74101-95014 | Receptacle Assy, Front Ash |
| 74104 | 74104-95010 | Retainer Sub-Assy, Ash Receptacle, No.1 |
| 74140 | 74140-95700-06 | Receptacle Assy, Ash(For Seat) |
| 74140 | 74140-95700-01 | Receptacle Sub-Assy, Ash, No.2 |
| 74141 | 74141-95550 | Retainer Sub-Assy, Rear Ash Receptacle |
| 9331914010 | 93319-14010 | SCREW |
| 9338515010 | 93385-15010 | Screw(For Steering Tilt Lever) |
| OEM | Part name | Category |
|---|---|---|
| 74101-95014 | Receptacle Assy, Front Ash | Ash Receptacle ([03.1979 - ] (7903- )) |
| 74104-95010 | Retainer Sub-Assy, Ash Receptacle, No.1 | Ash Receptacle ([03.1979 - ] (7903- )) |
| 74140-95700-01 | Receptacle Sub-Assy, Ash, No.2 | Ash Receptacle ([03.1979 - ] (7903- )) |
| 74140-95700-06 | Receptacle Assy, Ash(For Seat) | Ash Receptacle ([03.1979 - ] (7903- )) |
| 74141-95550 | Retainer Sub-Assy, Rear Ash Receptacle | Ash Receptacle ([03.1979 - ] (7903- )) |
| 93319-14010 | SCREW | Ash Receptacle ([03.1979 - ] (7903- )) |
| 93385-15010 | Screw(For Steering Tilt Lever) | Ash Receptacle ([03.1979 - ] (7903- )) |
