Search › Model › RY31

RY31

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1979 · 2,964 parts · 132 categories

2,964 items

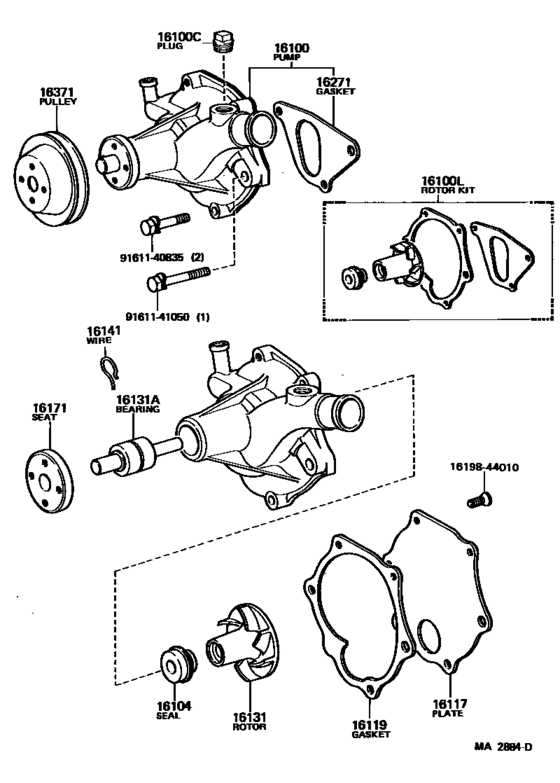

Water Pump ([03.1979 - ] (7903- )5R) 24

#	OEM	Part name
16100	16100-49425	Pump Assy, Engine Water
16100	16100-49426	Pump Assy, Engine Water
16100	90345-54004	Plug, W/head Taper Screw, No.1
16100	90345-54005	Plug, W/head Taper Screw, No.1
16100	04162-44020	Rotor Kit, Water Pump
16100	04162-44021	Rotor Kit, Water Pump
16104	16104-15020	Seal Set, Water Pump
16104	16104-41111	Seal Set, Water Pump
16117	16117-44010	Plate, Water Pump
16119	16119-44010	Gasket, Water Pump Body
16119	16119-44011	Gasket, Water Pump Body
16131	16131-44070	Rotor, Water Pump
16131	90369-30063	Bearing, Water Pump
16141	16141-60010	Wire, Water Pump Bearing Retaining
16171	16171-24031	Seat, Water Pump Pulley
16271	16271-44010	Gasket, Water Pump
16271	16271-44021	Gasket, Water Pump
16271	16271-44020	Gasket, Water Pump
16371	16371-44010	Pulley, Fan
1619844010	16198-44010	Bolt, Stud(for Water Pump Pulley Seat)
9161140835	91611-40835	Bolt(For Clutch Release Cylinder Setting)
9161140835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9161141050	91611-41050	Bolt(for Transaxle & Engine Setting)
9161141050	91612-61050	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
04162-44020	Rotor Kit, Water Pump	Water Pump ([03.1979 - ] (7903- )5R)
04162-44021	Rotor Kit, Water Pump	Water Pump ([03.1979 - ] (7903- )5R)
16100-49425	Pump Assy, Engine Water	Water Pump ([03.1979 - ] (7903- )5R)
16100-49426	Pump Assy, Engine Water	Water Pump ([03.1979 - ] (7903- )5R)
16104-15020	Seal Set, Water Pump	Water Pump ([03.1979 - ] (7903- )5R)
16104-41111	Seal Set, Water Pump	Water Pump ([03.1979 - ] (7903- )5R)
16117-44010	Plate, Water Pump	Water Pump ([03.1979 - ] (7903- )5R)
16119-44010	Gasket, Water Pump Body	Water Pump ([03.1979 - ] (7903- )5R)
16119-44011	Gasket, Water Pump Body	Water Pump ([03.1979 - ] (7903- )5R)
16131-44070	Rotor, Water Pump	Water Pump ([03.1979 - ] (7903- )5R)
16141-60010	Wire, Water Pump Bearing Retaining	Water Pump ([03.1979 - ] (7903- )5R)
16171-24031	Seat, Water Pump Pulley	Water Pump ([03.1979 - ] (7903- )5R)
16198-44010	Bolt, Stud(for Water Pump Pulley Seat)	Water Pump ([03.1979 - ] (7903- )5R)
16271-44010	Gasket, Water Pump	Water Pump ([03.1979 - ] (7903- )5R)
16271-44020	Gasket, Water Pump	Water Pump ([03.1979 - ] (7903- )5R)
16271-44021	Gasket, Water Pump	Water Pump ([03.1979 - ] (7903- )5R)
16371-44010	Pulley, Fan	Water Pump ([03.1979 - ] (7903- )5R)
90345-54004	Plug, W/head Taper Screw, No.1	Water Pump ([03.1979 - ] (7903- )5R)
90345-54005	Plug, W/head Taper Screw, No.1	Water Pump ([03.1979 - ] (7903- )5R)
90369-30063	Bearing, Water Pump	Water Pump ([03.1979 - ] (7903- )5R)
91611-40835	Bolt(For Clutch Release Cylinder Setting)	Water Pump ([03.1979 - ] (7903- )5R)
91611-41050	Bolt(for Transaxle & Engine Setting)	Water Pump ([03.1979 - ] (7903- )5R)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Water Pump ([03.1979 - ] (7903- )5R)
91612-61050	Bolt(For Transaxle & Engine Setting)	Water Pump ([03.1979 - ] (7903- )5R)
