RY31

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1979 · 2,964 parts · 132 categories
RY31 ×

← Back to categories

2,964 items

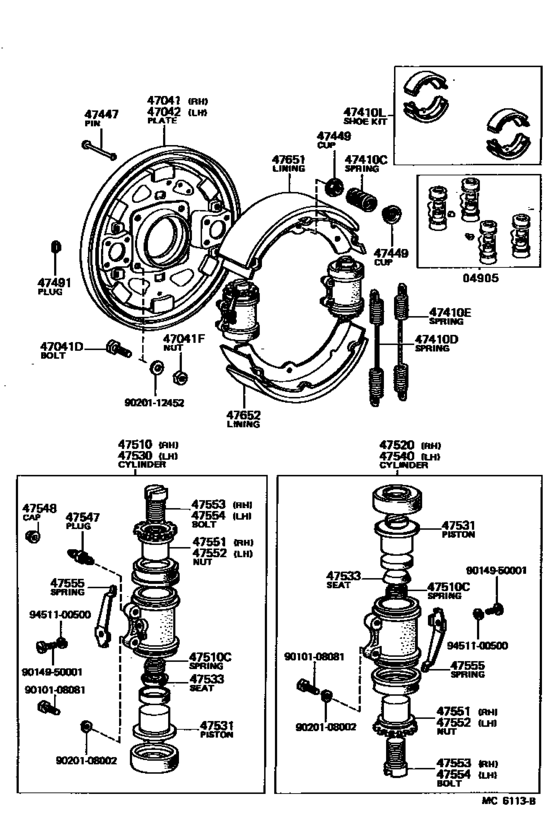

Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- )) 44
#OEMPart name
4905 04905-25020 Cup Kit, Front Wheel Cylinder
47041 47041-25020 Plate Sub-Assy, Brake Backing, Front Rh
47041 47041-36111 Plate Sub-Assy, Brake Backing, Front Rh
47041 47492-28010 Plug, Shoe Inspection(For Rear Brake)
47041 47041-36050 Plate Sub-Assy, Brake Backing, Front Rh
47041 90101-12021 Bolt(For Backing Plate To Steering Knuckle Setting)
47041 90101-12175 Bolt(For Backing Plate To Rear Axle Housing Setting)
47041 90101-12113 Bolt(For Backing Plate To Steering Knuckle Setting)
47041 94115-71200 Nut(For Backing Plate To Steering Knuckle Setting)
47042 47042-25010 Plate Sub-Assy, Brake Backing, Front Lh
47042 47042-36111 Plate Sub-Assy, Brake Backing, Front Lh
47042 47042-36020 Plate Sub-Assy, Brake Backing, Front Lh
47410 90501-20012 Spring(For Front Brake Shoe Hold Down)
47410 90506-29006 Spring, Tension(For Front Brake Shoe Return)
47410 04495-35071 Shoe Kit, Rear Brake
47410 04495-35072 Shoe Kit, Rear Brake
47447 47447-35020 Pin, Shoe Hold Down Spring
47449 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47491 47491-36010 Plug, Hole(For Front Brake)
47491 47491-36020 Plug, Hole(For Rear Brake)
47510 47510-29195 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510 47510-25040 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510 90501-10759 Spring, Compression(For Front Wheel Brake Cylinder)
47520 47520-29115 Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47520 47520-25030 Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47530 47530-29195 Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530 47530-25040 Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47531 47531-60010 Piston, Wheel Brake Cylinder(For Front Brake) - WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47533 47533-25010 Seat, Wheel Cylinder Piston Spring(For Front Brake)
47540 47540-29115 Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47540 47540-25030 Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47547 47547-12010 Plug, Bleeder(For Release Cylinder)
47548 31478-30010 Bleeder Plug Cap
47551 47551-25050 Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
47552 47552-25050 Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake)
47553 47553-36021 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47554 47554-36021 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47555 47555-25010 Spring, Adjuster Lock(For Front Brake)
47651 47651-60020 Lining, Front Brake Shoe(For Front Or Upper) - REAR BRAKE SHOE(FOR FRONT OR UPPER)
9010108081 90101-08081 Bolt(For Front Wheel Cylinder)
9014950001 90149-50001 New Genuine Part
9020108002 90201-08002 Washer(For Front Wheel Cylinder)
9020112452 90201-12452 Nut(For Backing Plate To Steering Knuckle Setting)
9451100500 94511-00500 Washer, Cover Set, No.2
