RY16

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1972 · 3,565 parts · 154 categories
RY16 ×

← Back to categories

3,565 items

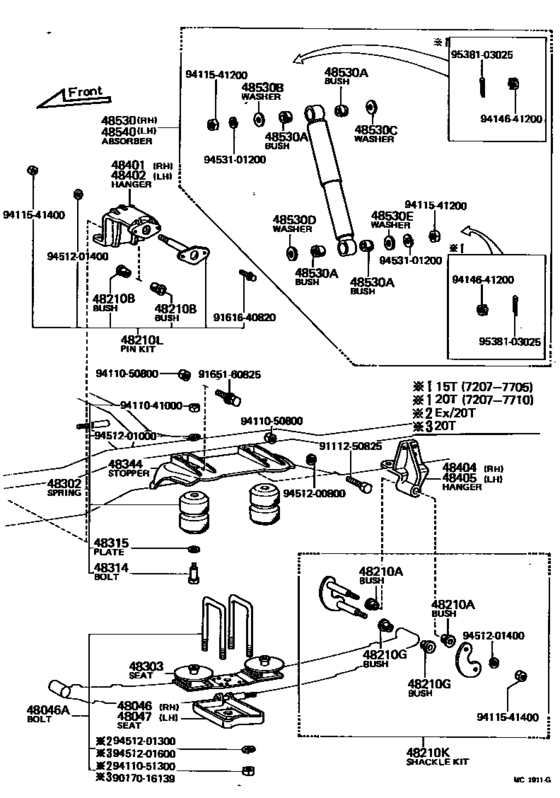

Rear Spring & Shock Absorber ([07.1972 - 02.1979] (7207-7902)JY16,RY16) 50
#OEMPart name
48046 48046-36061 Seat Sub-Assy, Spring U Bolt, Rh
48046 48046-36121 Seat Sub-Assy, Spring U Bolt, Rh
48046 94130-61200 Nut
48046 94531-01200 WASHER
48046 48046-36120 Seat Sub-Assy, Spring U Bolt, Rh
48046 90118-16062 Bolt, U(For Rear Spring)
48046 90117-16122 Bolt, U(For Rear Spring)
48046 90118-16060 Bolt, U(For Rear Spring)
48046 90117-16074 Bolt, U(For Rear Spring)
48046 94621-11600 Washer(For Rear Spring U Bolt)
48047 48047-36061 Seat Sub-Assy, Spring U Bolt, Lh
48047 48047-36121 Seat Sub-Assy, Spring U Bolt, Lh
48047 48047-36120 Seat Sub-Assy, Spring U Bolt, Lh
48210 90385-18025 Bush(For Front Spring Shackle)
48210 04483-36010 Shackle Kit, Rear Spring
48210 04484-36010 Pin Kit, Rear Spring
48302 48302-36010 Spring Sub-Assy, Hollow
48303 48031-36010 Seat Sub-Assy, Hollow Spring
48314 48314-36010 Bolt, Hollow Spring Set
48315 48315-36010 Plate, Hollow Spring Set
48344 48301-36020 Stopper, Bumper, Rear
48401 48414-36010 Bracket Sub-Assy, Rear Spring, Front Rh
48401 48414-36050 Bracket Sub-Assy, Rear Spring, Front Rh
48404 48416-36030 Bracket Sub-Assy, Rear Spring, Rear Rh
48405 48417-36020 Bracket Sub-Assy, Rear Spring, Rear Lh
48530 48531-69015 Absorber Assy, Shock, Rear Rh
48530 48531-69017 Absorber Assy, Shock, Rear Rh
48530 48531-69016 Absorber Assy, Shock, Rear Rh
48530 90385-16007 Cushion, Front Shock Absorber
48530 90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber)
48530 90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)
9017016139 90170-16139 Nut(For Rear Spring U Bolt)
9111250825 91112-50825 Bolt(For Clutch Master Cylinder Setting)
9111250825 91111-50825 Bolt(For Clutch Master Cylinder Setting)
9161640820 91616-40820 Bolt, Engine Rear Cover Hinge Set
9165160825 91651-60825 Bolt, Hexagon(For Steering Column Bracket)
9165160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9411041000 94110-41000 Nut(For Steering Damper)
9411050800 94110-50800 Nut(For Repair Actuator Set)
9411051300 94110-51300 Nut(For Rear Spring U Bolt)
9411541200 94115-41200 Nut
9411541400 94115-41400 Nut(For Backing Plate To Steering Knuckle Setting)
9414641200 94146-41200 New Genuine Part
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201300 94512-01300 Washer(For Rear Spring U Bolt)
9451201400 94512-01400 Washer(For Rear Spring U Bolt)
9451201600 94512-01600 Washer(For Center Arm Shaft)
9451201600 90204-16001 Washer(For Center Arm Shaft)
9538103025 95381-03025 PIN
