RY16

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1972 · 3,565 parts · 154 categories
RY16 ×

← Back to categories

3,565 items

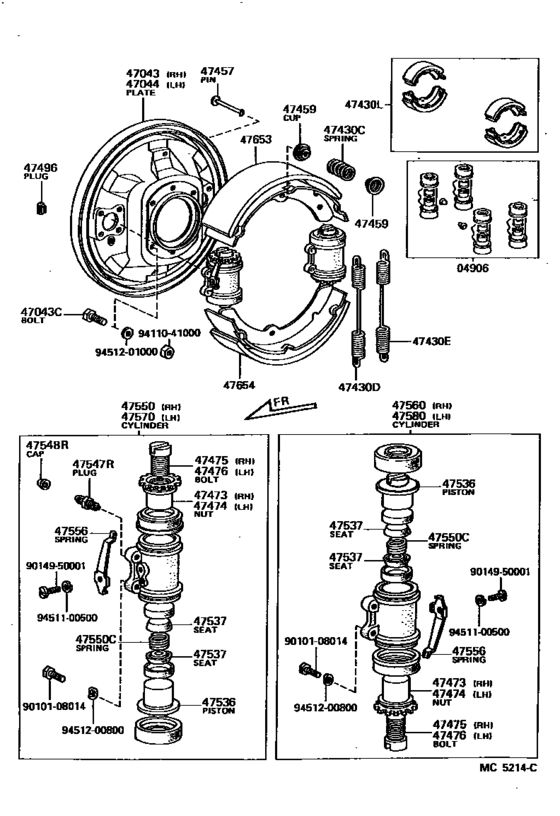

Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - 02.1979] (7708-7902)20T) 83
#OEMPart name
4906 04906-25010 Cup Kit, Rear Wheel Cylinder
4906 04906-36040 Cup Kit, Rear Wheel Cylinder
4906 04906-36070 Cup Kit, Rear Wheel Cylinder
47043 47043-36030 Plate Sub-Assy, Brake Backing, Rear Rh
47043 47043-36050 Plate Sub-Assy, Brake Backing, Rear Rh
47043 47043-36051 Plate Sub-Assy, Brake Backing, Rear Rh
47043 47492-28010 Plug, Shoe Inspection(For Rear Brake)
47043 90101-10061 Bolt(For Backing Plate To Rear Axle Housing Setting)
47043 90109-10024 Bolt(For Backing Plate To Rear Axle Housing Setting)
47044 47044-36010 Plate Sub-Assy, Brake Backing, Rear Lh
47044 47044-36011 Plate Sub-Assy, Brake Backing, Rear Lh
47430 47446-30010 Spring(For Front Brake Shoe Hold Down)
47430 90501-20012 Spring(For Front Brake Shoe Hold Down)
47430 90506-26071 Spring, Tension(For Front Brake Shoe Return)
47430 90506-26372 Spring, Tension(For Front Brake Shoe Return) - TENSION(FOR REAR BRAKE SHOE RETURN)
47430 90506-29216 Spring, Tension(For Front Brake Shoe Return)
47430 90507-29006 Spring, Tension(For Front Brake Shoe Return)
47430 04494-36020 Shoe Kit, Front Brake
47430 04494-36200 Shoe Kit, Front Brake
47430 04494-36040 Shoe Kit, Front Brake
47430 04494-36042 Shoe Kit, Front Brake
47457 47447-20010 Pin, Shoe Hold Down Spring(For Front Brake)
47457 47447-35010 Pin, Shoe Hold Down Spring(For Front Brake)
47457 47447-36020 Pin, Shoe Hold Down Spring(For Front Brake)
47459 47449-20010 Cup, Shoe Hold Down Spring(For Front Brake)
47459 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47473 47551-36012 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47473 47551-36071 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47473 47552-25010 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47473 47552-36011 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47474 47551-25010 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47474 47551-36011 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47474 47552-36012 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47474 47552-36071 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47475 47553-36011 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47475 47553-36021 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47475 47554-36010 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47476 47553-36010 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47476 47554-36011 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47476 47554-36021 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47496 47491-20020 Plug, Hole(For Front Brake)
47496 47491-35021 Plug, Hole(For Front Brake)
47496 47491-36020 Plug, Hole(For Rear Brake)
47496 47491-36010 Plug, Hole(For Front Brake)
47536 47051-36060 Piston, Wheel Brake Cylinder(For Rear Brake)
47536 47531-25020 Piston, Wheel Brake Cylinder(For Front Brake)
47536 47536-36040 Piston, Wheel Brake Cylinder(For Rear Brake)
47537 47533-30011 Seat, Wheel Cylinder Piston Spring(For Front Brake)
47537 47533-35030 Seat, Wheel Cylinder Piston Spring(For Front Brake) - WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47547 47547-12010 Plug, Bleeder(For Release Cylinder)
47548 31478-30010 Bleeder Plug Cap
47550 47550-29145 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-29146 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-39235 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-36050 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 90501-08122 Spring, Compression(For Front Wheel Brake Cylinder)
47550 90501-09483 Spring, Compression(For Front Wheel Brake Cylinder) - COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47556 47555-35010 Spring, Adjuster Lock(For Front Brake)
47556 47555-36010 Spring, Adjuster Lock(For Front Brake)
47556 47555-36011 Spring, Adjuster Lock(For Front Brake)
47556 47555-36020 Spring, Adjuster Lock(For Front Brake)
47560 47560-29025 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-29026 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-39085 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-36050 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47570 47570-29025 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-29026 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-39075 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-36050 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47580 47580-29025 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-29026 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-39075 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-36050 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47653 47651-36020 Lining, Front Brake Shoe(For Front Or Upper)
47653 47651-36190 Lining, Front Brake Shoe(For Front Or Upper)
47653 47651-36070 Lining, Front Brake Shoe(For Front Or Upper)
9010108014 90101-08014 Bolt (For Transmission Control Cable Bracket)
9010108014 91611-B0816 Bolt
9014950001 90149-50001 New Genuine Part
9411041000 94110-41000 Nut(For Steering Damper)
9451100500 94511-00500 Washer, Cover Set, No.2
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
