Search › Model › RY16

RY16

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1972 · 3,565 parts · 154 categories

3,565 items

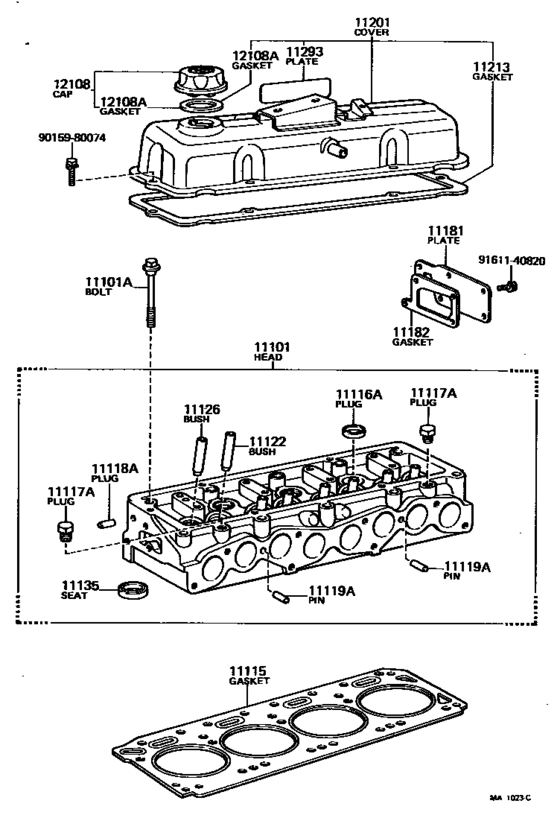

Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R) 45

#	OEM	Part name
11101	11101-49116	Head Sub-Assy, Cylinder
11101	11101-44046	Head Sub-Assy, Cylinder
11101	11101-44052	Head Sub-Assy, Cylinder
11101	11101-49165	Head Sub-Assy, Cylinder
11101	11101-49166	Head Sub-Assy, Cylinder
11101	11101-49167	Head Sub-Assy, Cylinder
11101	90910-02048	Bolt(For Cylinder Head Set)
11115	11115-44020	Gasket, Cylinder Head
11115	11115-44023	Gasket, Cylinder Head
11115	11115-44021	Gasket, Cylinder Head
11115	11115-44022	Gasket, Cylinder Head
11115	11115-44024	Gasket, Cylinder Head
11115	11115-44033	Gasket, Cylinder Head
11115	11115-44034	Gasket, Cylinder Head
11115	11115-44035	Gasket, Cylinder Head
11116	90331-25011	Plug, Tight, No.2 - TIGHT, NO.1
11116	96411-42500	Plug, Tight, No.1
11117	90345-54002	Plug, W/head Taper Screw, No.1
11117	90345-54021	Plug, W/head Taper Screw, No.1
11118	90334-08004	Plug, Straight, No.1
11119	90250-08054	Pin, Straight
11122	11122-44010	Bush, Intake Valve Guide
11122	11122-44011	Bush, Intake Valve Guide
11135	11135-44023	Seat, Exhaust Valve
11135	11135-44024	Seat, Exhaust Valve
11135	11136-44020	Seat, Exhaust Valve
11135	11136-44021	Seat, Exhaust Valve
11181	11181-40010	Plate, Cylinder Head, Rear
11181	11181-44010	Plate, Cylinder Head, Rear
11182	11182-44010	Gasket, Cylinder Head Rear Plate
11182	11182-44011	Gasket, Cylinder Head Rear Plate
11201	11201-49095	Cover Sub-Assy, Cylinder Head
11201	11201-49098	Cover Sub-Assy, Cylinder Head
11201	11201-49096	Cover Sub-Assy, Cylinder Head
11213	11213-44010	Gasket, Cylinder Head Cover
11213	11213-44020	Gasket, Cylinder Head Cover
11293	11293-44021	Plate, Engine Caution & Engine Name
11293	11293-44061	Plate, Engine Caution & Engine Name
11293	11293-44033	Plate, Engine Caution & Engine Name
11293	11293-44060	Plate, Engine Caution & Engine Name
12108	12108-31013	Cap Sub-Assy, Oil Filler
12108	12181-31020	Cap Sub-Assy, Oil Filler
12108	90430-35095	Gasket(For Oil Filler Cap)
9015980074	90159-80074	New Genuine Part
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)

OEM	Part name	Category
11101-44046	Head Sub-Assy, Cylinder	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11101-44052	Head Sub-Assy, Cylinder	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11101-49116	Head Sub-Assy, Cylinder	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11101-49165	Head Sub-Assy, Cylinder	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11101-49166	Head Sub-Assy, Cylinder	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11101-49167	Head Sub-Assy, Cylinder	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11115-44020	Gasket, Cylinder Head	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11115-44021	Gasket, Cylinder Head	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11115-44022	Gasket, Cylinder Head	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11115-44023	Gasket, Cylinder Head	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11115-44024	Gasket, Cylinder Head	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11115-44033	Gasket, Cylinder Head	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11115-44034	Gasket, Cylinder Head	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11115-44035	Gasket, Cylinder Head	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11122-44010	Bush, Intake Valve Guide	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11122-44011	Bush, Intake Valve Guide	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11135-44023	Seat, Exhaust Valve	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11135-44024	Seat, Exhaust Valve	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11136-44020	Seat, Exhaust Valve	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11136-44021	Seat, Exhaust Valve	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11181-40010	Plate, Cylinder Head, Rear	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11181-44010	Plate, Cylinder Head, Rear	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11182-44010	Gasket, Cylinder Head Rear Plate	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11182-44011	Gasket, Cylinder Head Rear Plate	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11201-49095	Cover Sub-Assy, Cylinder Head	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11201-49096	Cover Sub-Assy, Cylinder Head	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11201-49098	Cover Sub-Assy, Cylinder Head	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11213-44010	Gasket, Cylinder Head Cover	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11213-44020	Gasket, Cylinder Head Cover	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11293-44021	Plate, Engine Caution & Engine Name	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11293-44033	Plate, Engine Caution & Engine Name	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11293-44060	Plate, Engine Caution & Engine Name	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
11293-44061	Plate, Engine Caution & Engine Name	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
12108-31013	Cap Sub-Assy, Oil Filler	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
12181-31020	Cap Sub-Assy, Oil Filler	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
90159-80074	New Genuine Part	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
90250-08054	Pin, Straight	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
90331-25011	Plug, Tight, No.2 - TIGHT, NO.1	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
90334-08004	Plug, Straight, No.1	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
90345-54002	Plug, W/head Taper Screw, No.1	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
90345-54021	Plug, W/head Taper Screw, No.1	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
90430-35095	Gasket(For Oil Filler Cap)	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
90910-02048	Bolt(For Cylinder Head Set)	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
96411-42500	Plug, Tight, No.1	Cylinder Head ([07.1972 - 12.1974] (7207-7412)5R)
