Search › Model › RY12

RY12

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1971 · 3,460 parts · 155 categories

3,460 items

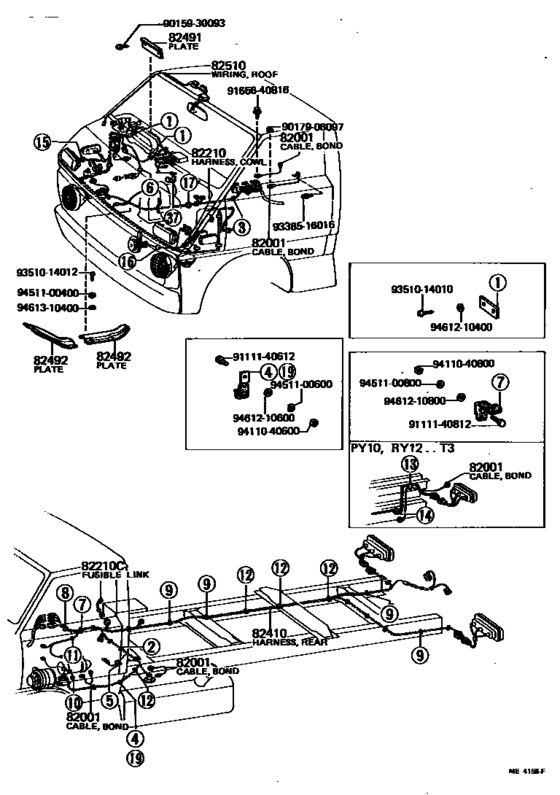

Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12) 46

#	OEM	Part name
82001	82201-95010	Cable, Bond, No.1
82001	82201-95011	Cable, Bond, No.1
82001	82202-95011	Cable, Bond, No.1
82001	90980-07011	Cable, Bond, No.1
82001	90980-07143	Cable, Bond, No.1
82001	90980-07021	Cable, Bond, No.1
82001	90980-07051	Cable, Bond, No.1
82210	82210-95013	Harness Assy, Wiring Cowl To Headlamp, No.1
82210	82210-95031	Harness Assy, Wiring Cowl To Headlamp, No.1
82210	82210-95038	Harness Assy, Wiring Cowl To Headlamp, No.1
82210	82210-95047	Harness Assy, Wiring Cowl To Headlamp, No.1
82210	82210-95057	Harness Assy, Wiring Cowl To Headlamp, No.1
82210	90982-08009	Fusible Link
82410	82410-95011	Harness Assy, Wiring To Rear Lamp
82410	82410-95016	Harness Assy, Wiring To Rear Lamp
82410	82410-95020	Harness Assy, Wiring To Rear Lamp
82491	55426-95010	Plate, Wiring Harness Protector, No.1
82492	58182-95014	Plate, Wiring Harness Protector, No.2
82492	58183-95011	Plate, Wiring Harness Protector, No.2
82492	58184-95010	Plate, Wiring Harness Protector, No.2
82510	82502-95010	Wiring Assy, Roof
82510	82502-95012	Wiring Assy, Roof
82510	82502-95014	Wiring Assy, Roof
9015930093	90159-30093	New Genuine Part
9017906097	90179-06097	Clip(For Front Bumper), No.1
9017906097	90179-06206	Nut
9111140612	91111-40612	New Genuine Part
9111140812	91111-40812	Bolt (for Transmission Control Cable Bracket)
9111140812	91611-60814	Bolt
9165640816	91656-40816	New Genuine Part
9165640816	91651-B0814	Bolt with washer
9165640816	90119-A0109	New Genuine Part
9338516016	93385-16016	New Genuine Part
9351014010	93510-14010	New Genuine Part
9351014012	93510-14012	New Genuine Part
9351014012	93540-A4014	SCREW TAPPING
9411040600	94110-40600	Nut, Rock
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100400	94511-00400	WASHERSPRING
9451100600	94511-00600	Washer, Lock, No.2
9451100800	94511-00800	WASHERSPRING
9461210400	94612-10400	New Genuine Part
9461210600	94612-10600	New Genuine Part
9461210800	94612-10800	Washer, Plate(For Repair Actuator Set)
9461310400	94613-10400	New Genuine Part

OEM	Part name	Category
55426-95010	Plate, Wiring Harness Protector, No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
58182-95014	Plate, Wiring Harness Protector, No.2	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
58183-95011	Plate, Wiring Harness Protector, No.2	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
58184-95010	Plate, Wiring Harness Protector, No.2	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82201-95010	Cable, Bond, No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82201-95011	Cable, Bond, No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82202-95011	Cable, Bond, No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82210-95013	Harness Assy, Wiring Cowl To Headlamp, No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82210-95031	Harness Assy, Wiring Cowl To Headlamp, No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82210-95038	Harness Assy, Wiring Cowl To Headlamp, No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82210-95047	Harness Assy, Wiring Cowl To Headlamp, No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82210-95057	Harness Assy, Wiring Cowl To Headlamp, No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82410-95011	Harness Assy, Wiring To Rear Lamp	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82410-95016	Harness Assy, Wiring To Rear Lamp	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82410-95020	Harness Assy, Wiring To Rear Lamp	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82502-95010	Wiring Assy, Roof	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82502-95012	Wiring Assy, Roof	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
82502-95014	Wiring Assy, Roof	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
90119-A0109	New Genuine Part	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
90159-30093	New Genuine Part	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
90179-06097	Clip(For Front Bumper), No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
90179-06206	Nut	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
90980-07011	Cable, Bond, No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
90980-07021	Cable, Bond, No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
90980-07051	Cable, Bond, No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
90980-07143	Cable, Bond, No.1	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
90982-08009	Fusible Link	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
91111-40612	New Genuine Part	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
91111-40812	Bolt (for Transmission Control Cable Bracket)	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
91611-60814	Bolt	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
91651-B0814	Bolt with washer	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
91656-40816	New Genuine Part	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
93385-16016	New Genuine Part	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
93510-14010	New Genuine Part	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
93510-14012	New Genuine Part	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
93540-A4014	SCREW TAPPING	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
94110-40600	Nut, Rock	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
94110-40800	Nut(For Steering Damper)	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
94130-00802	Nut, No.1 (For Center Support Bearing)	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
94511-00400	WASHERSPRING	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
94511-00600	Washer, Lock, No.2	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
94511-00800	WASHERSPRING	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
94612-10400	New Genuine Part	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
94612-10600	New Genuine Part	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
94612-10800	Washer, Plate(For Repair Actuator Set)	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
94613-10400	New Genuine Part	Wiring & Clamp ([09.1971 - 02.1979] (7109-7902)RY10,12)
