Search › Model › RY12

RY12

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1971 · 3,460 parts · 155 categories

3,460 items

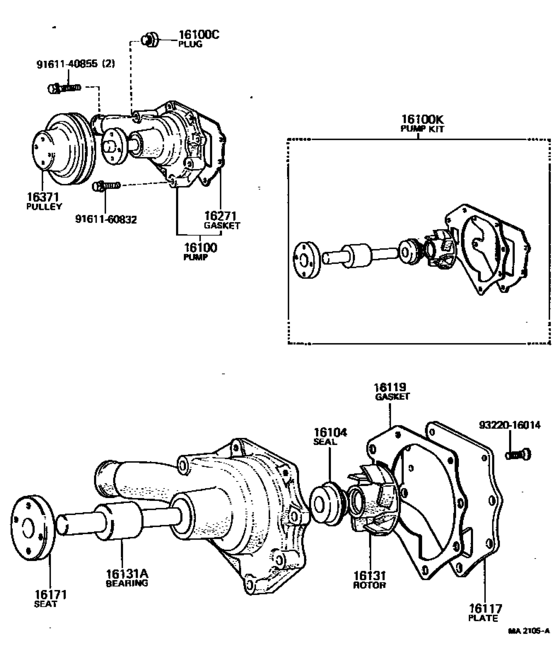

Water Pump ([11.1975 - 02.1979] (7511-7902)12R) 39

#	OEM	Part name
16100	16100-39115	Pump Assy, Engine Water
16100	16100-39116	Pump Assy, Engine Water
16100	16100-39125	Pump Assy, Engine Water
16100	90345-54002	Plug, W/head Taper Screw, No.1
16100	90345-54004	Plug, W/head Taper Screw, No.1
16100	90345-54005	Plug, W/head Taper Screw, No.1
16100	90345-54021	Plug, W/head Taper Screw, No.1
16100	04161-31020	Pump Kit, Water
16100	04161-31021	Pump Kit, Water
16100	04161-31023	Pump Kit, Water
16104	16104-30011	Seal Set, Water Pump
16104	16104-41040	Seal Set, Water Pump
16104	16104-41110	Seal Set, Water Pump
16104	16104-15020	Seal Set, Water Pump
16117	16117-31010	Plate, Water Pump
16117	16117-31011	Plate, Water Pump
16117	16117-31031	Plate, Water Pump
16119	16124-31010	Gasket, Water Pump Body
16119	16124-31011	Gasket, Water Pump Body
16119	16124-31031	Gasket, Water Pump Body
16119	16124-31032	Gasket, Water Pump Body
16131	16131-31010	Rotor, Water Pump
16131	16131-31031	Rotor, Water Pump
16131	16131-31032	Rotor, Water Pump
16131	90369-30003	Bearing, Water Pump
16131	90369-30022	Bearing, Water Pump
16131	90369-30035	Bearing, Water Pump
16171	16171-24031	Seat, Water Pump Pulley
16171	16171-31030	Seat, Water Pump Pulley
16271	16271-30010	Gasket, Water Pump
16271	16271-30011	Gasket, Water Pump
16271	16271-31010	Gasket, Water Pump
16371	16371-31020	Pulley, Fan
16371	16371-31021	Pulley, Fan
16371	16371-31022	Pulley, Fan
9161140855	91611-40855	Bolt(For Rocker Support Set)
9161140855	91611-60855	Bolt(For Rocker Support Set)
9161160832	91611-60832	Bolt Or Ring, Exhaust Pipe Front (For Front)
9322016014	93220-16014	SCREW

OEM	Part name	Category
04161-31020	Pump Kit, Water	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
04161-31021	Pump Kit, Water	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
04161-31023	Pump Kit, Water	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16100-39115	Pump Assy, Engine Water	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16100-39116	Pump Assy, Engine Water	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16100-39125	Pump Assy, Engine Water	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16104-15020	Seal Set, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16104-30011	Seal Set, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16104-41040	Seal Set, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16104-41110	Seal Set, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16117-31010	Plate, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16117-31011	Plate, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16117-31031	Plate, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16124-31010	Gasket, Water Pump Body	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16124-31011	Gasket, Water Pump Body	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16124-31031	Gasket, Water Pump Body	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16124-31032	Gasket, Water Pump Body	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16131-31010	Rotor, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16131-31031	Rotor, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16131-31032	Rotor, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16171-24031	Seat, Water Pump Pulley	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16171-31030	Seat, Water Pump Pulley	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16271-30010	Gasket, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16271-30011	Gasket, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16271-31010	Gasket, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16371-31020	Pulley, Fan	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16371-31021	Pulley, Fan	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
16371-31022	Pulley, Fan	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
90345-54002	Plug, W/head Taper Screw, No.1	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
90345-54004	Plug, W/head Taper Screw, No.1	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
90345-54005	Plug, W/head Taper Screw, No.1	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
90345-54021	Plug, W/head Taper Screw, No.1	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
90369-30003	Bearing, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
90369-30022	Bearing, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
90369-30035	Bearing, Water Pump	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
91611-40855	Bolt(For Rocker Support Set)	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
91611-60832	Bolt Or Ring, Exhaust Pipe Front (For Front)	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
91611-60855	Bolt(For Rocker Support Set)	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
93220-16014	SCREW	Water Pump ([11.1975 - 02.1979] (7511-7902)12R)
