Search › Model › RY12

RY12

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1971 · 3,460 parts · 155 categories

3,460 items

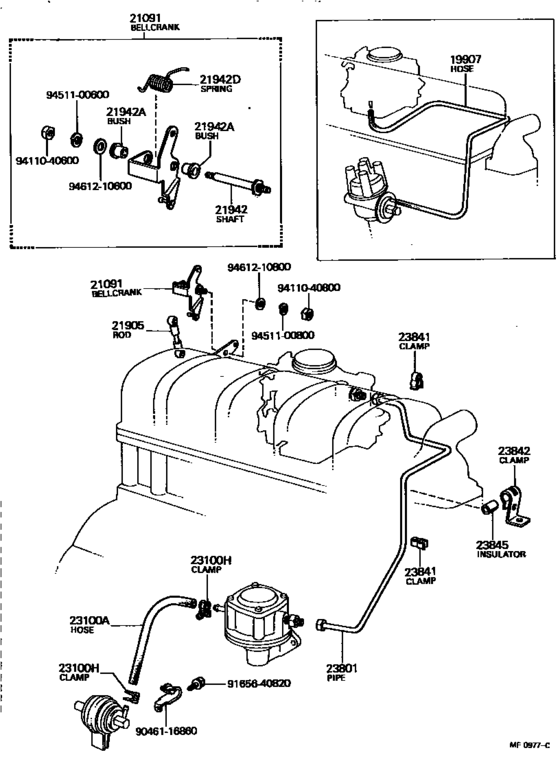

Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R) 44

#	OEM	Part name
19907	90445-07106	Hose, Vacuum, No.1
19907	90999-92004	Hose, Vacuum, No.1 (For Front Drive Shift)
19907	95411-10195	Hose (For Idle Up Device) - VACUUM SWITCHING VALVE
21091	21091-31010	Bellcrank Sub-Assy, Accelerator
21091	21091-31011	Bellcrank Sub-Assy, Accelerator
21905	78104-20041	Rod Sub-Assy, Accelerator Connecting - ACCELERATOR CONNECTING, NO.2
21942	21941-31010	Shaft, Accelerator Link
21942	90386-08024	Bush(For Accelerator Link Shaft) - ACCELERATOR BELLCRANK
21942	90508-18394	Spring(For Accelerator Link Shaft)
21942	90508-20450	Spring(For Accelerator Link Shaft)
21942	90508-20001	Spring(For Accelerator Link Shaft)
23100	95324-07034	Hose, Fuel
23100	90999-99033	Hose, Fuel
23100	95331-06034	Hose, Fuel(For Fuel Evaporative Separator)
23100	95333-06040	Hose
23100	95331-08034	Hose, Fuel, No.4(For Charcoal Canister) - CARBURETOR FUEL, NO.1
23100	95337-08040	Hose, Fuel, No.2 (For Main Tube, No.1)
23100	95332-06034	Hose, Fuel
23100	90467-13130	Clip(For Fuel Hose)
23100	90467-13138	Clip(For Fuel Hose)
23100	96132-51300	Clip(For Ventilation Hose No.2)
23100	96132-30600	Clip(For Actuator Hose)
23100	96132-51100	Clip (For Hose)
23100	96132-30800	Clip, No.3(For Idle-Up Hose)
23801	23801-31040	Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
23801	23811-31040	Pipe, Fuel(for Fuel Filter To Injection Pump)
23801	90402-13041	Nut, Union(For Fuel Pipe)
23801	96395-71400	Olive(For Fuel Pipe)
23801	23801-31042	Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
23801	23811-31042	Pipe, Fuel(for Fuel Filter To Injection Pump)
23841	90468-04007	Clamp, Fuel Pipe(Hose), No.1
23842	23841-40010	Clamp, Fuel Pipe(Hose), No.2
23842	23842-31010	Clamp, Fuel Pipe(Hose), No.2
23845	23845-20010	Insulator, Fuel Pipe
9046116860	90461-16860	New Genuine Part
9165640820	91656-40820	BOLT
9165640820	91651-60816	BOLT
9411040600	94110-40600	Nut, Rock
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100600	94511-00600	Washer, Lock, No.2
9451100800	94511-00800	WASHERSPRING
9461210600	94612-10600	New Genuine Part
9461210800	94612-10800	Washer, Plate(For Repair Actuator Set)

OEM	Part name	Category
21091-31010	Bellcrank Sub-Assy, Accelerator	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
21091-31011	Bellcrank Sub-Assy, Accelerator	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
21941-31010	Shaft, Accelerator Link	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
23801-31040	Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
23801-31042	Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
23811-31040	Pipe, Fuel(for Fuel Filter To Injection Pump)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
23811-31042	Pipe, Fuel(for Fuel Filter To Injection Pump)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
23841-40010	Clamp, Fuel Pipe(Hose), No.2	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
23842-31010	Clamp, Fuel Pipe(Hose), No.2	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
23845-20010	Insulator, Fuel Pipe	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
78104-20041	Rod Sub-Assy, Accelerator Connecting - ACCELERATOR CONNECTING, NO.2	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
90386-08024	Bush(For Accelerator Link Shaft) - ACCELERATOR BELLCRANK	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
90402-13041	Nut, Union(For Fuel Pipe)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
90445-07106	Hose, Vacuum, No.1	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
90461-16860	New Genuine Part	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
90467-13130	Clip(For Fuel Hose)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
90467-13138	Clip(For Fuel Hose)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
90468-04007	Clamp, Fuel Pipe(Hose), No.1	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
90508-18394	Spring(For Accelerator Link Shaft)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
90508-20001	Spring(For Accelerator Link Shaft)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
90508-20450	Spring(For Accelerator Link Shaft)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
90999-92004	Hose, Vacuum, No.1 (For Front Drive Shift)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
90999-99033	Hose, Fuel	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
91651-60816	BOLT	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
91656-40820	BOLT	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
94110-40600	Nut, Rock	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
94110-40800	Nut(For Steering Damper)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
94130-00802	Nut, No.1 (For Center Support Bearing)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
94511-00600	Washer, Lock, No.2	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
94511-00800	WASHERSPRING	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
94612-10600	New Genuine Part	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
94612-10800	Washer, Plate(For Repair Actuator Set)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
95324-07034	Hose, Fuel	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
95331-06034	Hose, Fuel(For Fuel Evaporative Separator)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
95331-08034	Hose, Fuel, No.4(For Charcoal Canister) - CARBURETOR FUEL, NO.1	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
95332-06034	Hose, Fuel	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
95333-06040	Hose	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
95337-08040	Hose, Fuel, No.2 (For Main Tube, No.1)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
95411-10195	Hose (For Idle Up Device) - VACUUM SWITCHING VALVE	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
96132-30600	Clip(For Actuator Hose)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
96132-30800	Clip, No.3(For Idle-Up Hose)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
96132-51100	Clip (For Hose)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)
96395-71400	Olive(For Fuel Pipe)	Fuel Pipe & Clamp ([09.1973 - 11.1975] (7309-7511)12R)

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 155
Collected: 2026-08-04
