RY12

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1971 · 3,460 parts · 155 categories
RY12 ×

← Back to categories

3,460 items
Front Spring & Shock Absorber ([09.1971 - 02.1979] (7109-7902)15T) 47
#OEMPart name
48110 90385-15016 Bush(For Front Spring Shackle)
48110 04481-25012 Shackle Kit, Front Spring
48110 04482-60010 Pin Kit, Front Spring
48331 48331-25010 Bumper, Front Spring, No.1
48346 48346-25030 Stopper, Bumper, Front
48411 48411-25030 Bracket, Front Spring(For Front Rh)
48412 48412-25020 Bracket, Front Spring(For Front Lh)
48414 48433-25020 Bracket, Front Spring(For Rear Rh)
48475 48475-36020 Plate, Distance(For Front)
48501 48512-25030 Bracket Sub-Assy, Front Shock Absorber, Upper Rh
48503 48514-35013 Bracket Sub-Assy, Front Shock Absorber, Lower Rh
48503 90118-13100 Bolt, U(For Front Shock Absorber Bracket)
48503 90117-13030 New Genuine Part
48503 94110-51300 Nut(For Rear Spring U Bolt)
48503 94512-01300 Washer(For Rear Spring U Bolt)
48504 48515-35013 Bracket Sub-Assy, Front Shock Absorber, Lower Lh
48510 48511-29045 Absorber Assy, Shock, Front Rh
48510 94130-61200 Nut
48510 48511-29047 Absorber, Shock Front, Rh(for Cartridge Type)
48510 90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 94110-41000 Nut(For Steering Damper)
48510 94146-41200 New Genuine Part
48510 94531-01200 WASHER
48510 48511-29046 Absorber Assy, Shock, Front Rh
48510 90385-16007 Cushion, Front Shock Absorber

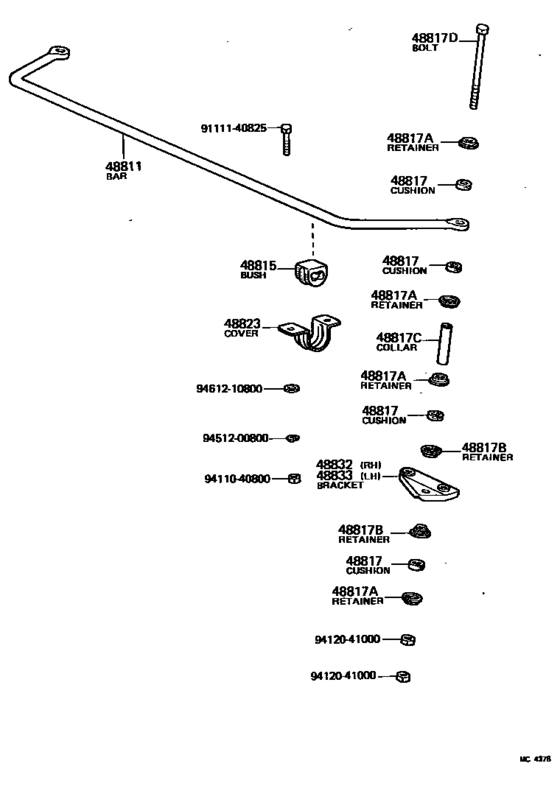

48811 48811-25010 Bar, Stabilizer, Front
48815 48815-25010 Bush, Front Stabilizer Bar, No.1
48817 90948-01002 Cushion
48817 90948-02004 Cushion Retainer
48817 90948-02005 Retainer No.2
48817 90440-14024 Bush(For Front Stabilizer Bar)
48817 90101-10259 Bolt(For Front Stabilizer)
48823 48823-36011 Cover, Stabilizer Link(For Front)
48832 48832-35010 Bracket, Front Stabilizer, Lower Rh
48833 48833-35010 Bracket, Front Stabilizer, Lower Lh
9111140825 91111-40825 Bolt(For Clutch Master Cylinder Setting)
9111140825 91111-50825 Bolt(For Clutch Master Cylinder Setting)
9161640820 91616-40820 Bolt, Engine Rear Cover Hinge Set
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411541200 94115-41200 Nut
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201200 94512-01200 Washer
9461210800 94612-10800 Washer, Plate(For Repair Actuator Set)
9538103025 95381-03025 PIN
