RY12

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1971 · 3,460 parts · 155 categories

3,460 items

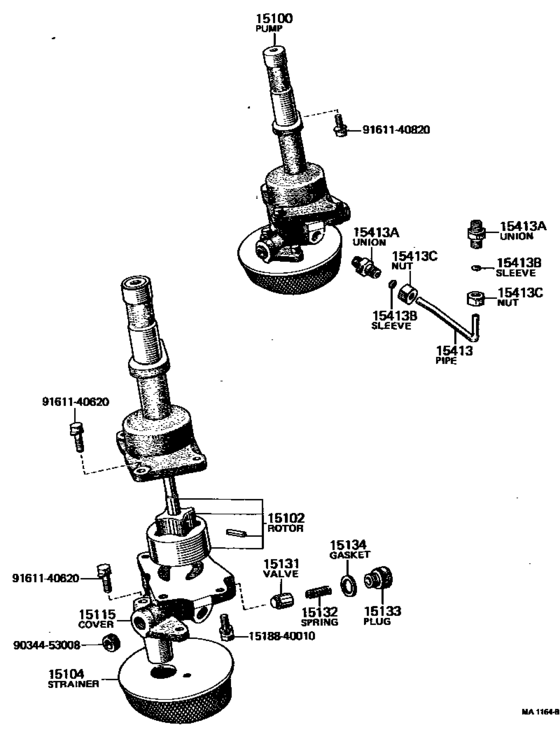

Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R) 23

#	OEM	Part name
15100	15100-31030	Pump Assy, Oil
15100	15100-31040	Pump Assy, Oil
15100	15200-31011	Pump Assy, Oil
15102	15101-31011	Rotor Set, Oil Pump
15104	15103-31010	Strainer Sub-Assy, Oil
15104	15104-31030	Strainer Sub-Assy, Oil
15115	15012-31031	Cover, Oil Pump
15115	15115-31030	Cover, Oil Pump
15115	15115-31011	Cover, Oil Pump
15131	15131-40010	Valve, Oil Pump Relief
15132	15132-40010	Spring, Oil Pump Relief Valve
15133	15133-20010	Plug, Oil Pump Relief Valve
15133	15133-41030	Plug, Oil Pump Relief Valve
15134	15134-20010	Gasket, Oil Pump Relief Valve
15413	15413-31010	Pipe, Oil Pump Outlet
15413	90404-16008	Union(For Oil Pump Outlet Pipe)
15413	90410-11005	Sleeve, Ball(For Oil Pump Outlet Pipe)
15413	90402-16042	Nut, Union(For Oil Pump Outlet Pipe)
1518840010	15188-40010	Gasket, Oil Pump
9034453008	90344-53008	Plug, W/head Taper Screw, No.2
9161140620	91611-40620	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140620	91611-60620	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)

OEM	Part name	Category
15012-31031	Cover, Oil Pump	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15100-31030	Pump Assy, Oil	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15100-31040	Pump Assy, Oil	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15101-31011	Rotor Set, Oil Pump	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15103-31010	Strainer Sub-Assy, Oil	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15104-31030	Strainer Sub-Assy, Oil	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15115-31011	Cover, Oil Pump	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15115-31030	Cover, Oil Pump	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15131-40010	Valve, Oil Pump Relief	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15132-40010	Spring, Oil Pump Relief Valve	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15133-20010	Plug, Oil Pump Relief Valve	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15133-41030	Plug, Oil Pump Relief Valve	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15134-20010	Gasket, Oil Pump Relief Valve	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15188-40010	Gasket, Oil Pump	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15200-31011	Pump Assy, Oil	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
15413-31010	Pipe, Oil Pump Outlet	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
90344-53008	Plug, W/head Taper Screw, No.2	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
90402-16042	Nut, Union(For Oil Pump Outlet Pipe)	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
90404-16008	Union(For Oil Pump Outlet Pipe)	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
90410-11005	Sleeve, Ball(For Oil Pump Outlet Pipe)	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
91611-40620	Screw Or Bolt(For Valve Rocker Shaft Lock)	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)
91611-60620	Screw Or Bolt(For Valve Rocker Shaft Lock)	Engine Oil Pump ([12.1972 - 02.1979] (7212-7902)12R)

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 155
Collected: 2026-08-04
