RY12

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1971 · 3,460 parts · 155 categories
RY12 ×

← Back to categories

3,460 items

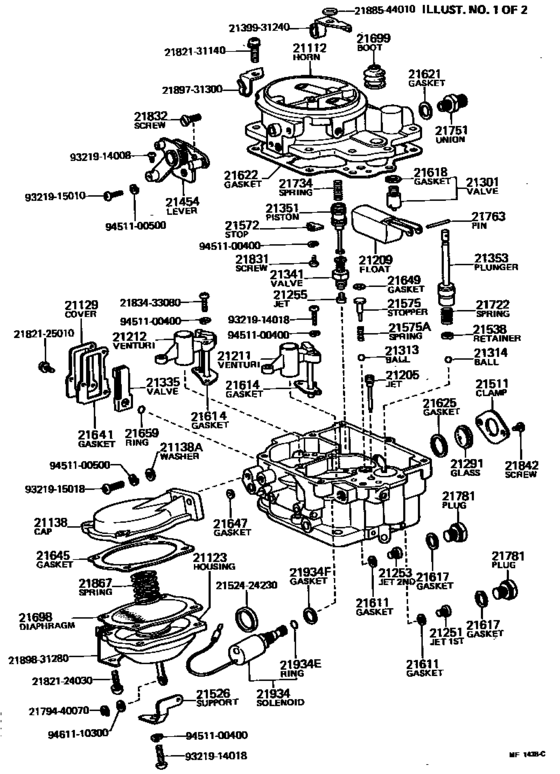

Carburetor ([11.1975 - 02.1979] (7511-7902)12R) 221
#OEMPart name
21112 21112-31160 Horn, Air
21112 21112-39014 Horn, Air
21112 21112-31161 Horn, Air
21113 21103-31220 Flange, Carburetor
21113 21113-31181 Flange, Carburetor
21113 21113-31182 Flange, Carburetor
21113 21834-31140 Screw, Set, No.2(For Carburetor Body Set)
21113 21113-31220 Flange, Carburetor
21113 21113-31250 Flange, Carburetor
21123 21123-44100 Housing, Diaphragm
21129 21129-24030 Cover(For Thermostatic Valve)
21129 21129-38010 Cover(For Thermostatic Valve)
21138 21138-44100 Cap, Diaphragm
21138 21885-44010 Washer(For Diaphragm Cap Set)
21205 21205-33070 Jet Sub-Assy, Slow
21205 90999-44046 Jet Sub-Assy, Slow
21205 90999-44048 Jet Sub-Assy, Slow
21209 21209-33011 Float Sub-Assy
21209 21209-33080 Float Sub-Assy
21211 21211-31140 Venturi, 1St Small
21211 21211-31270 Venturi, 1St Small
21211 21211-33081 Venturi, 1St Small
21212 21212-31180 Venturi, 2Nd Small
21212 21212-31270 Venturi, 2Nd Small
21212 21212-31280 Venturi, 2Nd Small
21251 21251-31180 Jet, 1St Main
21251 90999-41104 Jet, 1St Main
21253 21253-31190 Jet, 2Nd Main
21253 90999-42156 Jet, 2Nd Main
21253 90999-42162 Jet, 2Nd Main
21255 21255-31190 Jet, Power
21255 90999-43050 Jet, Power
21255 90999-43053 Jet, Power
21271 21271-31140 Screw, Idle Adjusting
21271 21271-38010 Screw, Idle Adjusting
21271 21271-31190 Screw, Idle Adjusting
21271 21271-31250 Screw, Idle Adjusting
21271 21271-31280 Screw, Idle Adjusting
21272 21273-30052 Screw, 1St Idle Adjusting
21272 21272-61140 Screw, 1St Idle Adjusting
21273 21273-51010 Screw, Throttle Adjusting
21273 21844-33010 Screw, 1St Idle Adjusting
21291 21291-33010 Glass, Level Gage
21291 21291-60200 Glass, Level Gage
21301 21301-26350 Valve Sub-Assy, Needle
21301 21301-33010 Valve Sub-Assy, Needle
21301 21301-33081 Valve Sub-Assy, Needle
21313 21313-11020 Ball, Steel, No.1(For Discharge Weight)
21314 21314-60010 Ball, Steel, No.2(For Pump Plunger)
21314 21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)
21331 21331-26350 Valve, 1St Throttle
21331 21331-33080 Valve, 1St Throttle
21332 21332-33080 Valve, 2Nd Throttle
21334 21334-33080 Valve, Choke
21335 21335-25010 Valve, Thermostatic
21335 21335-33010 Valve, Thermostatic
21335 21335-33080 Valve, Thermostatic
21341 21304-30010 Valve, Power
21351 21351-33080 Piston, Power
21351 21708-22010 Piston, Power
21353 21353-33010 Plunger, Pump
21353 21353-16510 Plunger, Pump
21412 21412-25010 Shaft, 1St Throttle
21412 21412-31181 Shaft, 1St Throttle
21412 21412-31281 Shaft, 1St Throttle
21413 21413-26350 Shaft, 2Nd Throttle
21413 21413-31180 Shaft, 2Nd Throttle
21413 21413-33080 Shaft, 2Nd Throttle
21414 21414-31022 Shaft, Choke
21431 21431-31190 Arm, 1St Throttle Shaft
21431 21431-31250 Arm, 1St Throttle Shaft
21431 21431-31280 Arm, 1St Throttle Shaft
21444 21444-31250 Lever(For Reloader Link Mechanism)
21447 21447-44100 Lever, Diaphragm
21449 21449-25010 Lever, 2Nd Kick
21449 21449-31281 Lever, 2Nd Kick
21452 21452-31010 Lever, Pump
21452 21452-31250 Lever, Pump
21452 21452-31280 Lever, Pump
21453 21453-31240 Lever, 1St Throttle
21453 21453-31280 Lever, 1St Throttle
21453 21465-23040 Lever, 1St Throttle
21454 21454-31024 Lever, Choke
21454 21454-31240 Lever, Choke
21454 21454-31250 Lever, Choke
21456 21456-31180 Lever, 1St Throttle Idle Adjusting, No.1
21456 21456-31250 Lever, 1St Throttle Idle Adjusting, No.1
21456 21456-31280 Lever, 1St Throttle Idle Adjusting, No.1
21471 21471-31250 Link, Pump Connecting
21471 21471-31280 Link, Pump Connecting
21471 21471-33010 Link, Pump Connecting
21481 21481-23011 Connector, 1St Idle
21481 21481-31250 Connector, 1St Idle
21481 21481-31251 Connector, 1St Idle
21481 21481-31280 Connector, 1St Idle
21484 21484-26350 Connector(For Opener)
21502 21523-31251 Clamp Sub-Assy, Choke Wire
21502 21523-31280 Clamp Sub-Assy, Choke Wire
21511 21511-33010 Clamp, Level Gage
21526 21526-31140 Support, Back Spring
21526 21526-31190 Support, Back Spring
21538 21538-31010 Retainer, Ball Check
21557 21557-25010 Spacer(For 1St Idle Cam)
21557 21557-60200 Spacer(For 1St Idle Cam)
21572 21572-33080 Stop, Power Piston
21575 21575-26020 Stopper, B(For Discharge Weight)
21575 21575-33011 Stopper, B(For Discharge Weight)
21575 21864-26020 Spring(For Pump Jet)
21581 21581-21010 Shim, 1St Throttle Shaft
21581 21581-25010 Shim, 1St Throttle Shaft
21581 21582-21010 Shim, 1St Throttle Shaft
21581 21588-21010 Shim, 1St Throttle Shaft
21581 21582-25010 Shim, 1St Throttle Shaft
21581 21583-21010 Shim, 1St Throttle Shaft
21581 21583-25010 Shim, 1St Throttle Shaft
21581 21585-25010 Shim, 1St Throttle Shaft
21611 21611-22010 Gasket, Main Jet
21614 21614-33010 Gasket, Venturi
21614 21614-16280 Gasket, Venturi
21614 21614-33080 Gasket, Venturi
21614 21615-16280 Gasket, Venturi
21617 21617-30010 Gasket, Main Passage Plug
21618 21618-24030 Gasket, Needle Valve Seat
21618 21618-60010 Gasket, Needle Valve Seat
21621 21619-22010 Gasket, Union Nipple
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21622 21622-33081 Gasket, Air Horn
21622 21622-33083 Gasket, Air Horn
21623 21623-25180 Gasket, Body Flange
21623 21623-16280 Gasket, Body Flange
21623 21623-31140 Gasket, Body Flange
21623 21623-31141 Gasket, Body Flange
21623 21623-33081 Gasket, Body Flange
21625 21641-33040 Gasket, Level Gage
21625 21655-60200 Gasket, Level Gage
21641 21641-23010 Gasket(For Thermostatic Valve Cover)
21641 21641-23012 Gasket(For Thermostatic Valve Cover)
21645 21645-33080 Gasket, Diaphragm, Cap
21645 21645-41010 Gasket, Diaphragm, Cap
21647 21649-33080 Gasket, Diaphragm Housing Cap
21649 21641-33011 Gasket(For Pump Discharge Weight Stopper)
21659 21641-24030 Gasket(For Thermostatic Valve Cover No.2)
21659 23532-40010 Ring, O(For Thermostatic Valve)
21668 21377-26160 Collar(For 2Nd Throttle Shaft)
21668 21668-31280 Collar
21672 21672-31140 Cap
21698 21669-44100 Diaphragm
21699 21699-21061 Boot(For Pump Plunger)
21699 21699-28150 Boot(For Pump Plunger)
21722 21722-22010 Spring, Pump Damping
21723 21723-21030 Spring, Idle Adjusting
21724 21726-40010 Spring, Throttle Adjusting
21728 21756-31280 Spring, Throttle Valve Return
21734 21734-22050 Spring, Power Piston
21734 21734-33081 Spring, Power Piston
21734 21734-34030 Spring, Power Piston
21735 21735-21032 Spring, Pump Arm
21738 21738-23011 Spring, Choke Valve Relief
21738 21738-31250 Spring, Choke Valve Relief
21751 21751-33080 Union, Nipple
21751 90404-13105 Bolt, Union(For Oil Filter Inlet Pipe) - NIPPLE(FOR FUEL INLET)
21756 21756-31170 Spring, Back(For Throttle Shaft)
21756 21756-31250 Spring, Back(For Throttle Shaft)
21756 21756-33080 Spring, Back(For Throttle Shaft)
21763 21763-29270 Pin, Float Lever
21763 21763-61330 Pin, Float Lever
21763 21763-31280 Pin, Float Lever
21781 21781-30020 Plug, Main Passage(For Carburetor Jet)
21781 21781-16510 Plug, Main Passage(For Carburetor Jet)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21794 21794-40010 Ring, Retainer, No.1(For Throttle Shaft)
21821 21821-34031 Screw, 1St Throttle Valve Set - 2ND THROTTLE VALVE SET
21822 21822-34031 Screw, 1St Throttle Valve Set
21822 21822-44101 Screw, 1St Throttle Valve Set
21823 21822-10011 Screw, 1St Throttle Valve Set - CHOKE, VALVE SET
21826 21826-25010 Screw, Pump Arm Set
21826 21826-31012 Screw, Pump Arm Set
21826 21826-31280 Screw, Pump Arm Set
21831 21842-33010 Screw, Power Piston Stop
21832 21832-31020 Screw(For Choke Lever Adapter Set)
21833 21833-33010 Screw, Set, No.1(For Carburetor Body Set)
21834 21834-31010 Screw, Set, No.1(For Carburetor Body Set)
21834 21834-33010 Screw, Set, No.2(For Carburetor Body Set)
21852 21852-30010 Nut, Throttle Lever Set
21864 21864-26160 Spring(For 1St Throttle Arm)
21867 21867-31280 Spring, Diaphragm
21867 21867-33080 Spring, Diaphragm
21868 21868-33080 Spring, Diaphragm Relief
21881 21881-60010 Washer, Lock(For Throttle Shaft)
21934 21062-38010 Solenoid, Throttle Valve
21934 21062-44100 Solenoid, Throttle Valve
21934 21062-25040 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21617-10010 Gasket
2139931240 21399-31240 Support(for Dash Pot)
2152424230 21524-24230 Bracket(For Dash Pot)
2166831240 21668-31240 Collar
2171238010 21712-38010 Bush, Sliding Rod
2171238010 21712-61020 Bush, Sliding Rod
2179440070 21794-40070 Ring, Retainer, No.1(For Throttle Shaft)
2182124030 21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set)
2182125010 21821-25010 Screw, Coil Housing Set
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2183433080 21834-33080 Screw, Set, No.2(for Carburetor Body Set)
2187321010 21873-21010 Washer, Plunger
2189731240 21897-31240 Support, Front(For Choke Shaft)
2189731250 21897-31250 Support, Front(for Choke Shaft)
2189731300 21897-31300 Support, Front(For Choke Shaft)
2189831280 21898-31280 Support, Rear(for Choke Shaft)
9111140616 91111-40616 New Genuine Part
9111140616 91111-50616 New Genuine Part
9321914008 93219-14008 Screw, W/washer(For Bearing Cover Setting)
9321914018 93219-14018 New Genuine Part
9321915010 93219-15010 SCREW
9321915018 93219-15018 New Genuine Part
9451100400 94511-00400 WASHERSPRING
9451100500 94511-00500 Washer, Cover Set, No.2
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461110300 94611-10300 New Genuine Part
9538101610 95381-01610 New Genuine Part
