Search › Model › RY10

RY10

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1971 · 3,366 parts · 151 categories

3,366 items

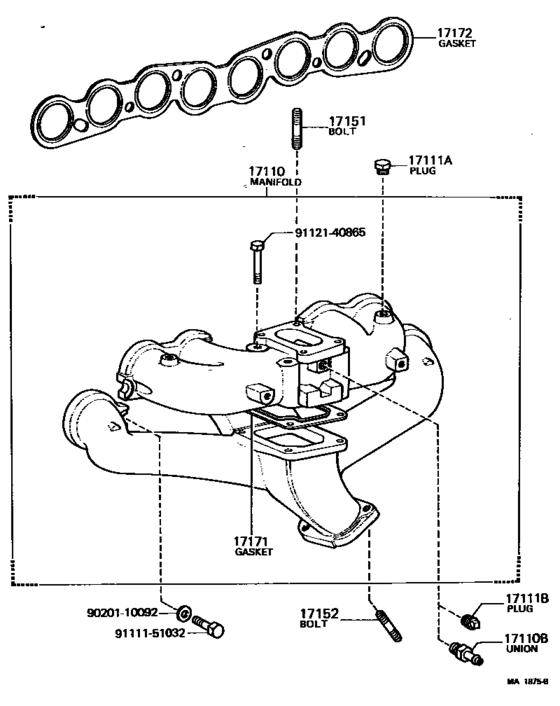

Manifold ([02.1975 - 11.1975] (7502-7511)12R) 23

#	OEM	Part name
17110	17110-31042	Manifold Assy
17110	17110-31043	Manifold Assy
17110	17110-31050	Manifold Assy
17110	17110-31051	Manifold Assy
17110	90116-08320	Bolt, Stud(For Manifold To Carburetor)
17110	90116-10042	Bolt, Stud(For Manifold To Exhaust Pipe)
17110	90404-52129	Union(For Ventilation Hose To Manifold)
17110	90407-09002	Union(For Ventilation Hose To Manifold)
17111	90345-51005	Plug, W/head Taper Screw, No.1
17111	90345-51025	Plug, W/head Taper Screw, No.2
17111	90345-52002	Plug, No.2
17151	90116-08010	Bolt, Stud(For Manifold To Carburetor)
17171	17171-31020	Gasket, Intake To Exhaust Manifold
17171	17171-31021	Gasket, Intake To Exhaust Manifold
17171	17171-44010	Gasket, Intake To Exhaust Manifold
17171	17171-44011	Gasket, Intake To Exhaust Manifold
17172	17172-31020	Gasket, Manifold To Cylinder Head
17172	17172-31021	Gasket, Manifold To Cylinder Head
17172	17172-31030	Gasket, Manifold To Cylinder Head
9020110092	90201-10092	Washer, Plate(For Cylinder Head Set)
9111151032	91111-51032	Pin Or Bolt(For Steering Worm Yoke)
9111151032	91112-61032	Pin Or Bolt(For Steering Worm Yoke)
9112140865	91121-40865	Bolt(For Clutch Master Cylinder Setting)

OEM	Part name	Category
17110-31042	Manifold Assy	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
17110-31043	Manifold Assy	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
17110-31050	Manifold Assy	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
17110-31051	Manifold Assy	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
17171-31020	Gasket, Intake To Exhaust Manifold	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
17171-31021	Gasket, Intake To Exhaust Manifold	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
17171-44010	Gasket, Intake To Exhaust Manifold	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
17171-44011	Gasket, Intake To Exhaust Manifold	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
17172-31020	Gasket, Manifold To Cylinder Head	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
17172-31021	Gasket, Manifold To Cylinder Head	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
17172-31030	Gasket, Manifold To Cylinder Head	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
90116-08010	Bolt, Stud(For Manifold To Carburetor)	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
90116-08320	Bolt, Stud(For Manifold To Carburetor)	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
90116-10042	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
90201-10092	Washer, Plate(For Cylinder Head Set)	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
90345-51005	Plug, W/head Taper Screw, No.1	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
90345-51025	Plug, W/head Taper Screw, No.2	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
90345-52002	Plug, No.2	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
90404-52129	Union(For Ventilation Hose To Manifold)	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
90407-09002	Union(For Ventilation Hose To Manifold)	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
91111-51032	Pin Or Bolt(For Steering Worm Yoke)	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
91112-61032	Pin Or Bolt(For Steering Worm Yoke)	Manifold ([02.1975 - 11.1975] (7502-7511)12R)
91121-40865	Bolt(For Clutch Master Cylinder Setting)	Manifold ([02.1975 - 11.1975] (7502-7511)12R)

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 151
Collected: 2026-08-04
