RX81

Toyota CRESSIDA-CRESSIDA-WAGON · 1988 · 4,979 parts · 180 categories

4,979 items

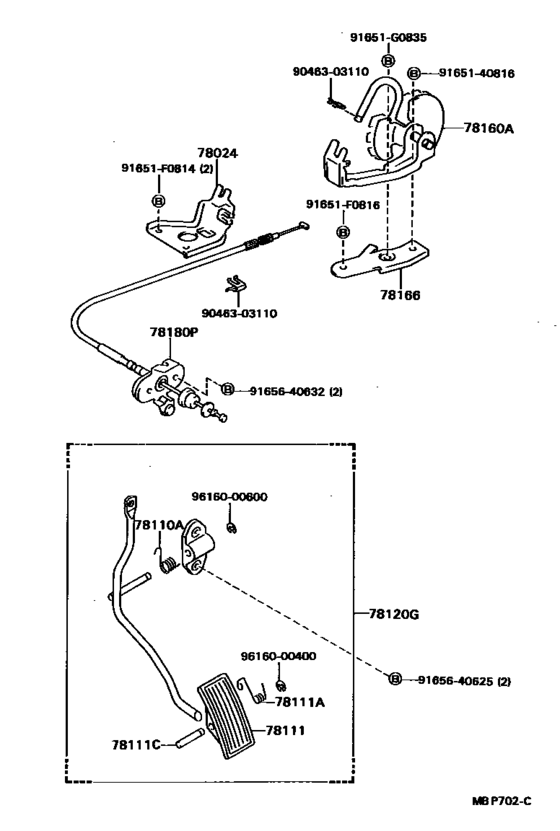

Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD) 23

#	OEM	Part name
78024	78024-22060	Bracket Sub-Assy, Accelerator Control Cable
78110	90508-18060	Spring (For Accelerator Pedal Rod)
78111	78111-12100	Pedal, Accelerator
78111	78111-22010	Pedal, Accelerator
78111	90508-23108	Spring (For Accelerator Pedal)
78111	90249-05001	Pin (For Accelerator Pedal)
78120	78120-22300	Rod Assy, Accelerator Pedal
78160	78160-89102	Bellcrank Assy, Accelerator
78166	78166-89101	Bracket, Accelerator Bellcrank - ACCEL CONTROL NO.2 BELLCRANK
78180	78180-2A330	Cable Assy, Accelerator Control
91651	91651-F0814	New Genuine Part
91651	91651-F0816	New Genuine Part
91651	90119-08813	BOLT W-WASHER
91651	91651-G0835	New Genuine Part
91651	91651-60835	Bolt(For Front Suspension Control Accumulator)
9046303110	90463-03110	Clamp (For Accelerator Torque Rod)
9165140816	91651-40816	BOLT
9165640625	91656-40625	New Genuine Part
9165640625	91651-60625	New Genuine Part
9165640632	91656-40632	New Genuine Part
9165640632	91652-60630	New Genuine Part
9616000400	96160-00400	Ring, E(For Release Arm)
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)

OEM	Part name	Category
78024-22060	Bracket Sub-Assy, Accelerator Control Cable	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
78111-12100	Pedal, Accelerator	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
78111-22010	Pedal, Accelerator	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
78120-22300	Rod Assy, Accelerator Pedal	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
78160-89102	Bellcrank Assy, Accelerator	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
78166-89101	Bracket, Accelerator Bellcrank - ACCEL CONTROL NO.2 BELLCRANK	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
78180-2A330	Cable Assy, Accelerator Control	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
90119-08813	BOLT W-WASHER	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
90249-05001	Pin (For Accelerator Pedal)	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
90463-03110	Clamp (For Accelerator Torque Rod)	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
90508-18060	Spring (For Accelerator Pedal Rod)	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
90508-23108	Spring (For Accelerator Pedal)	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
91651-40816	BOLT	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
91651-60625	New Genuine Part	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
91651-60835	Bolt(For Front Suspension Control Accumulator)	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
91651-F0814	New Genuine Part	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
91651-F0816	New Genuine Part	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
91651-G0835	New Genuine Part	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
91652-60630	New Genuine Part	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
91656-40625	New Genuine Part	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
91656-40632	New Genuine Part	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
96160-00400	Ring, E(For Release Arm)	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Accelerator Link ([08.1988 - ] (8808- )RX8#..LHD)
