RX80

Toyota CRESSIDA-CRESSIDA-WAGON · 1988 · 4,872 parts · 168 categories

4,872 items

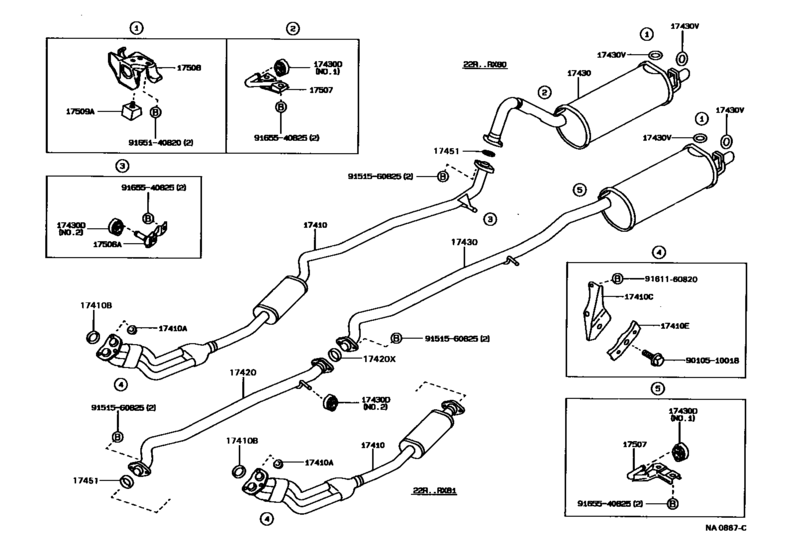

Exhaust Pipe ([08.1988 - ] (8808- )22R) 23

#	OEM	Part name
17410	17410-35370	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06038	Gasket, Exhaust Pipe
17410	17571-37040	Bracket, Exhaust Pipe Front (For Front)
17410	90917-04030	Clamp No.1, Exhaust Pipe Front (For Front)
17420	90917-06039	Gasket, Exhaust Pipe
17430	17430-35530	Pipe Assy, Exhaust, Tail
17430	17565-11100	Bolt Or Ring, Exhaust Pipe Front (For Front)
17430	17565-63020	Ring, Catalytic Converter
17430	90301-36001	Bolt Or Ring, Exhaust Pipe Front (For Rear)
17506	17506-74040	Bracket Sub-Assy, Exhaust Pipe No.1 Support
17507	17507-74020	Bracket Sub-Assy, Exhaust Pipe No.2 Support
17508	17508-70060	Support Sub-Assy, Exhaust Pipe, No.3
17509	17509-70010	Bracket Sub-Assy, Exhaust Pipe No.4 Support
9010510018	90105-10018	Bolt Or Ring, Exhaust Pipe Front (For Front)
9151560825	91515-60825	New Genuine Part
9151560825	91511-B0825	Bolt (For Transfer Stiffener Plate)
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9165140820	91651-40820	Bolt
9165540825	91655-40825	New Genuine Part
9165540825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)

OEM	Part name	Category
17410-35370	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1988 - ] (8808- )22R)
17430-35530	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1988 - ] (8808- )22R)
17506-74040	Bracket Sub-Assy, Exhaust Pipe No.1 Support	Exhaust Pipe ([08.1988 - ] (8808- )22R)
17507-74020	Bracket Sub-Assy, Exhaust Pipe No.2 Support	Exhaust Pipe ([08.1988 - ] (8808- )22R)
17508-70060	Support Sub-Assy, Exhaust Pipe, No.3	Exhaust Pipe ([08.1988 - ] (8808- )22R)
17509-70010	Bracket Sub-Assy, Exhaust Pipe No.4 Support	Exhaust Pipe ([08.1988 - ] (8808- )22R)
17565-11100	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.1988 - ] (8808- )22R)
17565-63020	Ring, Catalytic Converter	Exhaust Pipe ([08.1988 - ] (8808- )22R)
17571-37040	Bracket, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.1988 - ] (8808- )22R)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1988 - ] (8808- )22R)
90105-10018	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.1988 - ] (8808- )22R)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1988 - ] (8808- )22R)
90301-36001	Bolt Or Ring, Exhaust Pipe Front (For Rear)	Exhaust Pipe ([08.1988 - ] (8808- )22R)
90917-04030	Clamp No.1, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.1988 - ] (8808- )22R)
90917-06038	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1988 - ] (8808- )22R)
90917-06039	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1988 - ] (8808- )22R)
91511-B0825	Bolt (For Transfer Stiffener Plate)	Exhaust Pipe ([08.1988 - ] (8808- )22R)
91515-60825	New Genuine Part	Exhaust Pipe ([08.1988 - ] (8808- )22R)
91611-60820	Bolt(For Transaxle & Engine Setting)	Exhaust Pipe ([08.1988 - ] (8808- )22R)
91611-G0820	Bolt	Exhaust Pipe ([08.1988 - ] (8808- )22R)
91651-40820	Bolt	Exhaust Pipe ([08.1988 - ] (8808- )22R)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Exhaust Pipe ([08.1988 - ] (8808- )22R)
91655-40825	New Genuine Part	Exhaust Pipe ([08.1988 - ] (8808- )22R)
