RX73

Toyota CRESSIDA-CRESSIDA-WAGON · 1987 · 3,764 parts · 180 categories
RX73 ×

← Back to categories

3,764 items

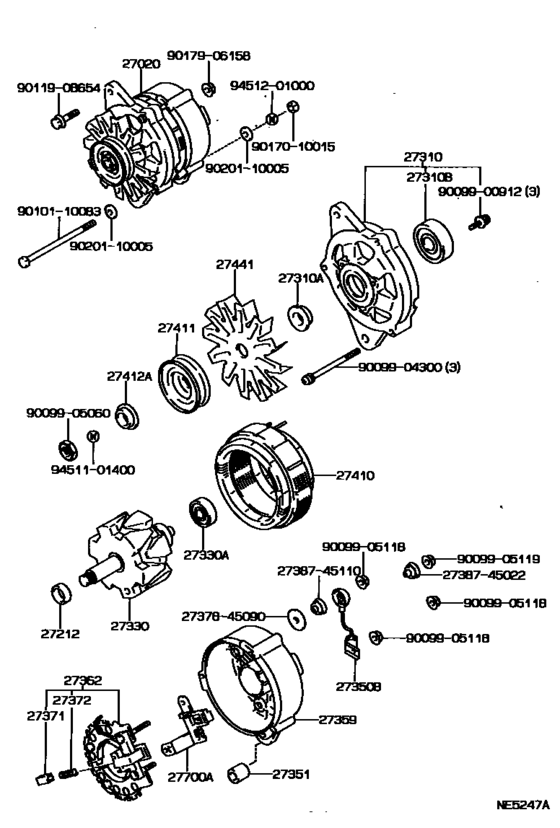

Alternator ([10.1988 - 06.1989] 12V 60A (8810-8906)22R) 45
#OEMPart name
27020 27060-34040 Alternator Assy
27020 27060-35080 Alternator Assy
27020 82989-22030 Wire, Connecting Repair
27212 27412-45070 Ring, Space(For Alternator Rotor)
27310 27310-35020 Frame Assy, Drive End, Alternator
27310 27310-35150 Frame Assy, Drive End, Alternator
27310 27412-31040 Collar Or Nut(For Alternator Drive End Frame)
27310 90099-10125 Bearing(For Alternator Drive End Frame)
27330 27330-35150 Rotor Assy, Alternator
27330 27330-43040 Rotor Assy, Alternator
27330 90099-10116 Bearing(For Alternator Rotor)
27350 90099-52065 Condenser, Alternator
27350 90099-52034 Condenser, Alternator
27350 90099-52095 Condenser, Alternator
27351 27351-38051 Bush(For Alternator Rectifier End Frame)
27359 27359-28030 Frame, Alternator Rectifier End
27359 27359-35150 Frame, Alternator Rectifier End
27362 27362-43040 Rectifier Assy, W/brush
27371 27371-31011 Brush, Alternator
27372 27372-31011 Spring, Alternator Brush
27410 27410-35150 Stator Assy, Alternator
27410 27410-43040 Stator Assy, Alternator
27411 27411-26111 Pulley, Alternator
27411 27411-35150 Pulley, Alternator
27412 27412-35150 Collar, Space(For Alternator Drive End Frame)
27412 27412-44031 Collar, Spacer(For Alternator Pulley)
27441 27441-34111 Fan, Alternator
27441 27441-35150 Fan, Alternator
27700 27700-35050 Regulator Assy, Generator
27700 27700-43010 Regulator Assy, Generator
2737845090 27378-45090 Insulator, Alternator, No.1
2738745022 27387-45022 Insulator, Terminal
2738745110 27387-45110 Insulator, Terminal
9009900912 90099-00912 New Genuine Part
9009904300 90099-04300 New Genuine Part
9009905060 90099-05060 Collar Or Nut(For Alternator Drive End Frame)
9009905118 90099-05118 New Genuine Part
9009905119 90099-05119 New Genuine Part
9010110083 90101-10083 BOLT
9011908654 90119-08654 BOLT WWASHER
9017010015 90170-10015 NUT
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9020110005 90201-10005 Washer, Plate(For Cylinder Head Set)
9451101400 94511-01400 WASHER
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
